ZF-500 Automatic Longitudinal Seam Welding Machine Stainless Steel Cylinder Plate Straight TIG Welding Equipment
ZF-500 Automatic Longitudinal Seam Welding Machine Stainless Steel Cylinder Plate Straight TIG Welding Equipment
ZF-500 Automatic Longitudinal Seam Welding Machine Stainless Steel Cylinder Plate Straight TIG Welding Equipment
ZF-500 Automatic Longitudinal Seam Welding Machine Stainless Steel Cylinder Plate Straight TIG Welding Equipment
ZF-500 Automatic Longitudinal Seam Welding Machine Stainless Steel Cylinder Plate Straight TIG Welding Equipment
ZF-500 Automatic Longitudinal Seam Welding Machine Stainless Steel Cylinder Plate Straight TIG Welding Equipment
Specifications
Supply Ability :
500 units/month
Applicable Plate Thickness :
0.5-6.0mm
Model Number :
Zfh500
Welding Stroke :
500mm
Price :
500-1000USD
Mandrel Cooling :
Circulating Water Cooling Mandrel
Certification :
CE
Control Mode :
PLC Touch Screen Automatic Control
MOQ :
1
Delivery Time :
10-20 work days
Travel Drive :
Servo Motor + Linear Guide Rail
Current :
AC
Payment Terms :
L/C,D/A,T/T,,D/P
Workpiece Material :
Carbon Steel, Stainless Steel
Brand Name :
LEMAR
Model :
ZFH-500 Longitudinal Seam Welder
Place of Origin :
WUXI
Clamping Mode :
Pneumatic Driving
Packaging Details :
100.00cm * 80.00cm * 120.00cm
Description
ZF-500 Automatic Longitudinal Seam Welding Machine
ZF-500 automatic longitudinal seam welder with 500mm effective welding length, featuring pneumatic key-type clamping and PLC digital speed control. Compatible with stainless steel, carbon steel, aluminum cylinder and plate straight seam welding, supporting TIG/MIG/plasma welding. Equipped with water-cooled copper backing strip for smooth weld formation. Optional wire feeder, back shielding gas and auto centering device. Factory direct supply with 1-year full machine warranty, test welding video and CE certificate available.
ZF-500 Automatic Longitudinal Seam Welding Machine Stainless Steel Cylinder Plate Straight TIG Welding EquipmentZF-500 Automatic Longitudinal Seam Welding Machine Stainless Steel Cylinder Plate Straight TIG Welding Equipment
Technical Specifications
Item Specification of ZF-500 Longitudinal Seam Welder
Effective Welding Length 500 mm
Welding Thickness Range 0.3-5 mm (stainless steel / carbon steel / aluminum)
Welding Speed 0.2-2.2 m/min, stepless adjustable
Clamping Mode Pneumatic key type synchronous clamping
Standard Welding Process TIG GTAW (Argon Arc Welding)
Optional Welding Process MIG MAG / Plasma Welding
Cooling System Water circulation cooling copper backing strip
Control System PLC + Touch Screen Digital Control
Back Protection Optional argon back shielding gas device
Input Power Customized according to matched welding power source
Machine Frame Heavy-duty cantilever welded structure
Working Ambient Temperature -10℃ ~ +45℃
Warranty Period 1 year for whole machine (excluding wearing parts)
Certification CE ISO available
Application Scope
  • Stainless steel water tanks, storage barrels, heater liners
  • Fire cylinder, pressure vessel, pipe shell semi-finished parts
  • Ventilation duct, exhaust muffler, metal sanitary ware
  • Kitchen equipment, metal shell, aluminum alloy cylindrical parts
  • Hardware automatic welding supporting production line
ZF-500 Automatic Longitudinal Seam Welding Machine Stainless Steel Cylinder Plate Straight TIG Welding EquipmentZF-500 Automatic Longitudinal Seam Welding Machine Stainless Steel Cylinder Plate Straight TIG Welding Equipment
Core Advantages

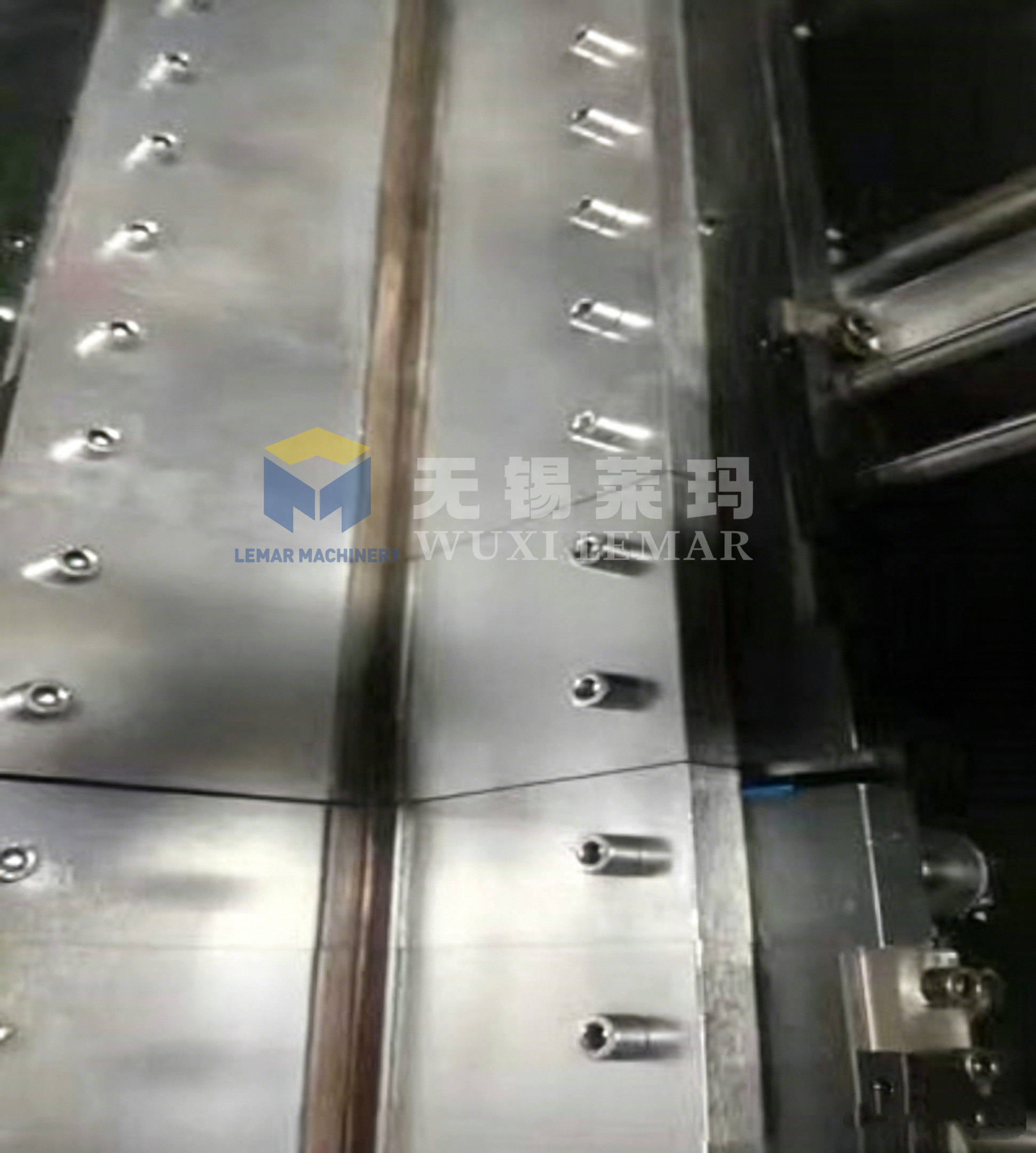

Uniform Pneumatic Key Clamping, No Thin Plate Deformation
Multiple independent cylinders press synchronously with even clamping force. 0.3-5mm thin stainless steel won't wrinkle during welding; weld flatness improves by 60% compared with single-point clamping.
Water-Cooled Copper Backing Strip + Back Shielding Gas, No Oxidation Blackening
Standard water cooling backing plate with optional back argon protection. Weld surface requires no grinding and polishing after welding, greatly reducing post-processing labor cost.
Integrated PLC Digital Control, One-Click Parameter Storage
Touch screen to adjust welding speed, torch height and delay start/stop digitally. Multiple sets of workpiece programs can be saved for quick model change without repeated debugging.
ZF-500 Automatic Longitudinal Seam Welding Machine Stainless Steel Cylinder Plate Straight TIG Welding EquipmentZF-500 Automatic Longitudinal Seam Welding Machine Stainless Steel Cylinder Plate Straight TIG Welding Equipment
Our Service
  • Factory direct manufacturer, support customized machine size and functional modules
  • Provide free welding test with customer's workpiece before order
  • Supply operation manual, English video tutorial and remote online technical guidance
  • Complete spare parts supply for long-term after-sales maintenance
  • Support FOB / CIF / DDP trade terms, professional export packaging
Frequently Asked Questions
Q1: What metal materials can this welder process?
A: Stainless steel, carbon steel, aluminum alloy, galvanized sheet, iron plate.
Q2: Can I add automatic wire feeding function?
A: Yes, automatic wire feeder is optional upgrade for thicker plates.
Q3: Do you provide overseas after-sales support?
A: We offer English operation guide, remote video debugging and spare parts delivery worldwide.
Q4: How long is the production lead time?
A: Standard ZF-500 machine: 7-10 working days; customized model: 15-20 working days.
