8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Metal Housing Plug and Play TBC-S4008E
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Metal Housing Plug and Play TBC-S4008E
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Metal Housing Plug and Play TBC-S4008E
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Metal Housing Plug and Play TBC-S4008E
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Metal Housing Plug and Play TBC-S4008E
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Metal Housing Plug and Play TBC-S4008E
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Metal Housing Plug and Play TBC-S4008E
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Metal Housing Plug and Play TBC-S4008E
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Metal Housing Plug and Play TBC-S4008E
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Metal Housing Plug and Play TBC-S4008E
Specifications
Model Number :
TBC-S4008E
Fixed Port :
8 10/100Base-TX RJ45 auto-sensing ports
Payment Terms :
T/T
Switching Capacity :
1.6Gbps
Operating Temperature :
-10°C to 55°C
Warranty :
1 year, lifetime maintenance
Supply Ability :
200,000 Pieces per Year
Forwarding Rate :
1.19Mpps
Power Input :
DC 5V/ 1A external power adapter
Housing Material :
Metal steel shell
Auto-Negotiation :
Supported
Delivery Time :
5-8 working day
MTBF (Mean Time Between Failures) :
100,000+ hours
Dimensions :
140*80*27mm
Weight :
≤ 0.5kg
Packaging Details :
Package:Carton Box
Quality of Service (QoS) :
Supported
Duplex Mode :
Half and Full Duplex
Certification :
CE,FCC,ROHS
Place of Origin :
China
Network Protocol :
IEEE 802.3 Ethernet Media Access Control Protocol; IEEE 802.3i 10BASE-T Ethernet; IEEE 802.3u 100BASE-TX Fast Ethernet; IEEE 802.3x Flow Control
MOQ :
1
MAC Address Table Size :
2K
Brand Name :
TiNCAM
Data Transfer Rate :
10/100 Mbps
Description

Product Overview

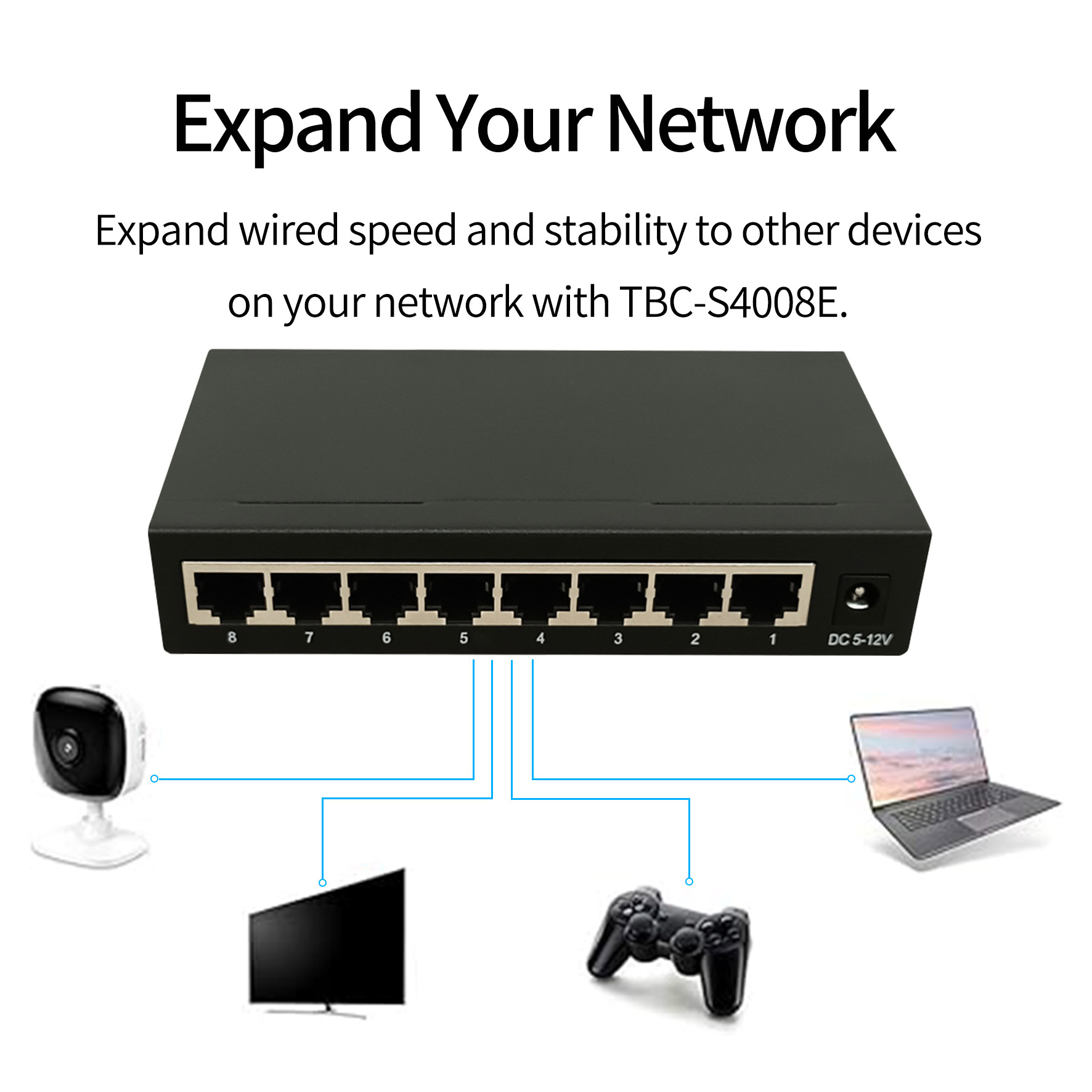

The TBC-S400 8E is an 8- port 10/100Mbps auto-sensing unmanaged Ethernet switch. It features eight 10/100Mbps auto-sensing RJ45 network ports, supports IEEE 802.3, IEEE 802.3u, and IEEE 802.3x network protocols, automatically negotiates transmission rates, and supports Auto MDI/MDIX functionality. It's plug-and-play, eliminating the need to distinguish between network cable types, making deployment more convenient. The product uses a store-and-forward switching architecture, providing stable data exchange performance and efficient data transmission capabilities. Combined with an all-metal chassis and fanless natural heat dissipation design, it can operate stably for extended periods. It is widely used in home networks, small offices (SOHO), shops, hotels, schools, video surveillance, and small to medium-sized LANs.


Key Features

• 8 × 10/100Mbps auto-sensing RJ45 Ethernet ports

• Compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x network standards

• Supports Auto Negotiation

• Supports Auto MDI/MDIX, eliminating the need to distinguish between straight-through and crossover cables.

• Store-and-forward exchange mechanism

• Supports IEEE 802.3x full-duplex flow control and half-duplex back pressure flow control

• Plug and play, no configuration required

• All-metal Housing, fanless silent design

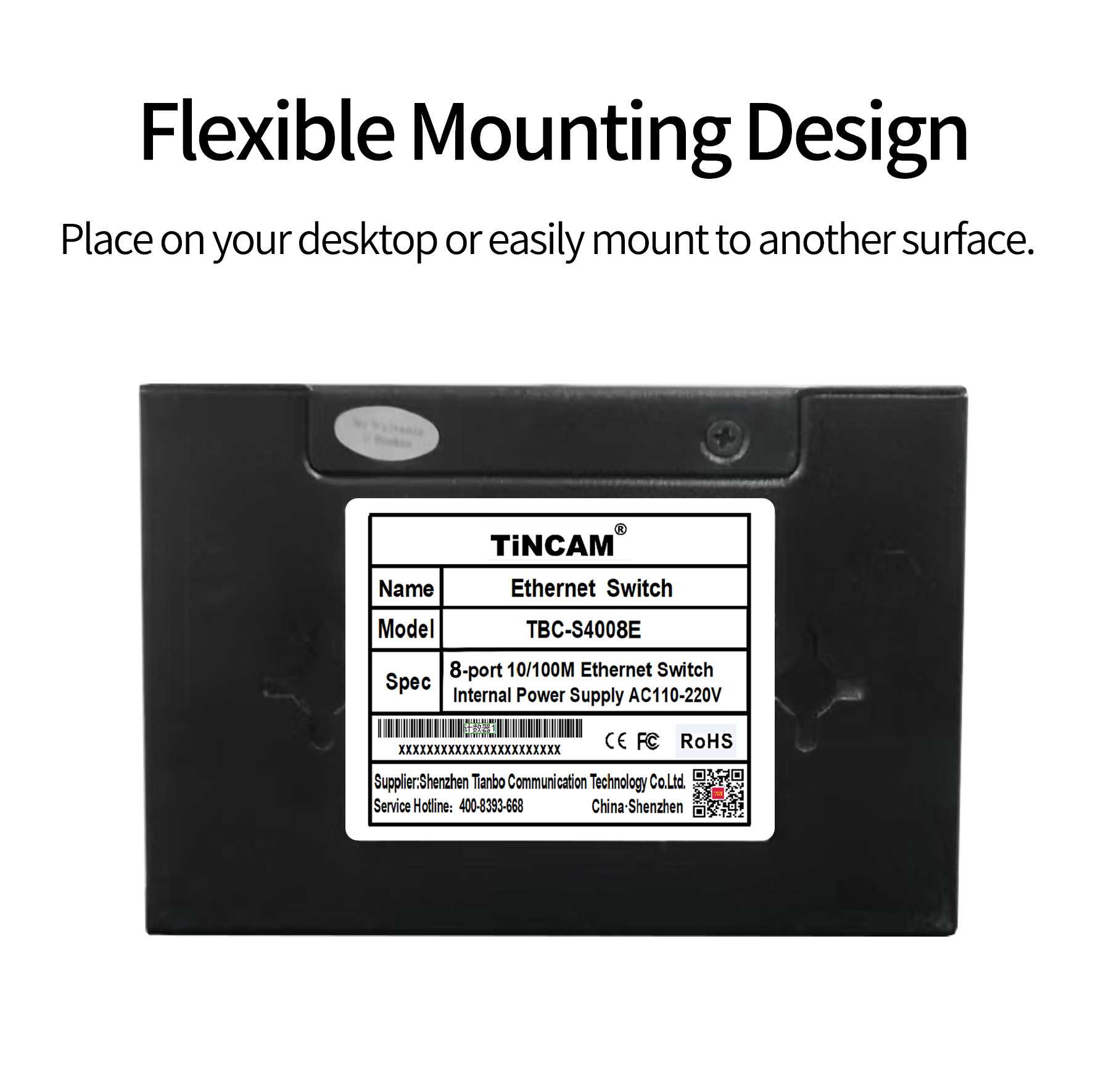

• Desktop installation, suitable for a variety of network application scenarios.
