Specifications
Network Standards :
IEEE802.3, IEEE802.3u, IEEE802.3x
Weight :
≤ 0.3kg
Model Number :
TBC-S4005E
Packet Forwarding Rate :
0.744 Mpps
Flow Control :
IEEE 802.3x Flow Control, Back Pressure
Dimensions :
81*52*22mm
MOQ :
1
Packaging Details :
Package:Carton Box
Fixed Port :
5 x 10/100Mbps adaptive RJ45 ports
Power Input :
DC 5V/ 1A external power adapter
Payment Terms :
T/T
Shell Material :
Engineering plastic casing
Work Mode :
Full-duplex/half-duplex auto-negotiation
Transmission Medium :
Category 5 and above twisted pair cable (Cat5e/Cat6/Cat6A)
Led Indicator Light :
PWR: Power; indicator light 1-5: Network indicator lights
Installation Method :
Desktop
Supply Ability :
200,000 Pieces per Year
Transmission Distance :
100 meters
Auto MDI/MDIX :
support
Delivery Time :
5-8 working day
Warranty :
1 year, lifetime maintenance
Exchange Method :
Store-and-forward
Certification :
CE RoHS FCC,ISO9001
Switching Capacity :
1Gbps
Place of Origin :
China
Product Type :
5- port 10/100Mbps Ethernet switch
Temperature :
Operating Temperature:-10～+55°C;Storage Temperature:-40～+75°C
Brand Name :
TiNCAM
Description

Product Overview

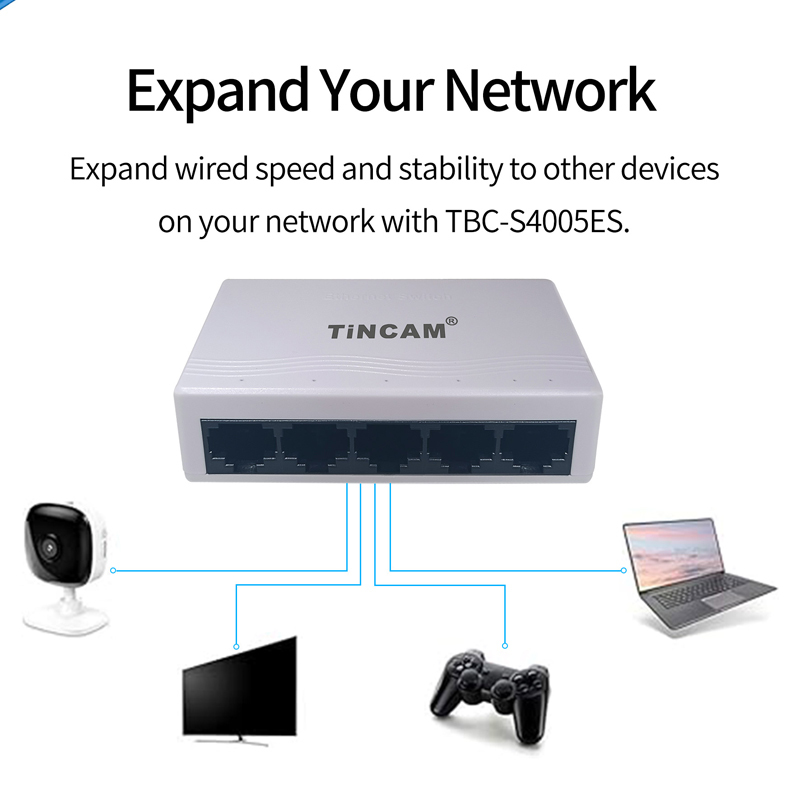

The TBC-S4005E S is a 5-port 10/100Mbps auto-sensing Ethernet switch, compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x network standards. It features a plug-and-play design, allowing for quick and stable LAN setup without any configuration. The device provides five 10/100Mbps auto-sensing RJ45 ports, supporting Auto Negotiation and Auto MDI/MDIX functions, automatically identifying cable types and effectively reducing cabling complexity. The product features a compact engineering plastic housing and an external 5V DC power supply, making it suitable for home, small office, shop, surveillance systems, and SOHO network environments.

Key Features

• 5 x 10/100Mbps auto-sensing RJ45 Ethernet ports

• Compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x network standards

• Supports Auto Negotiation

• Supports Auto MDI/MDIX, eliminating the need to distinguish between straight-through and crossover cables.

• Store-and-forward exchange mechanism

• Supports IEEE 802.3x full-duplex flow control and half-duplex back pressure flow control

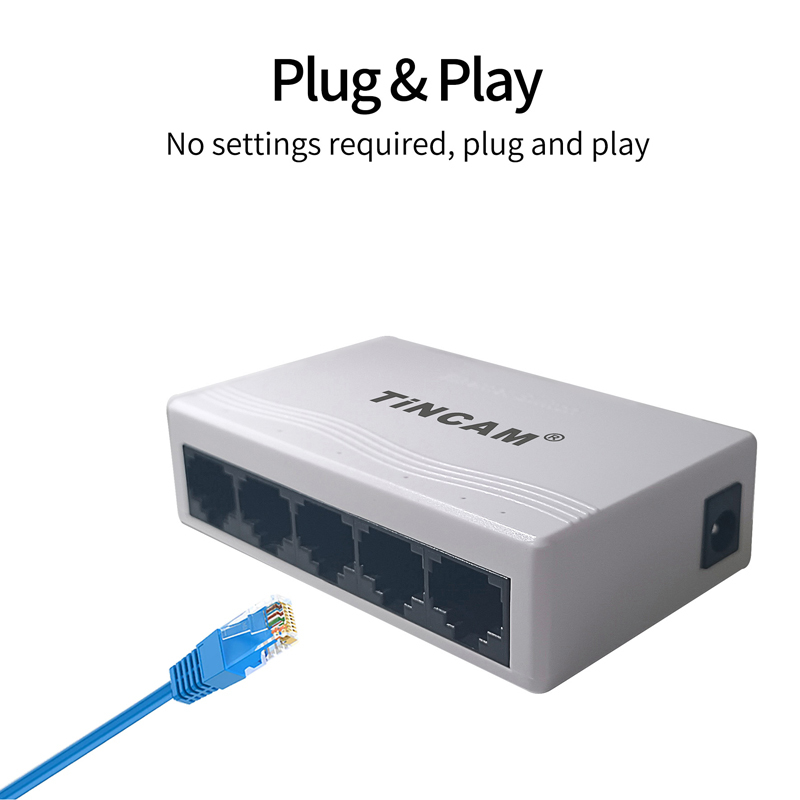

• Plug and play, no configuration required

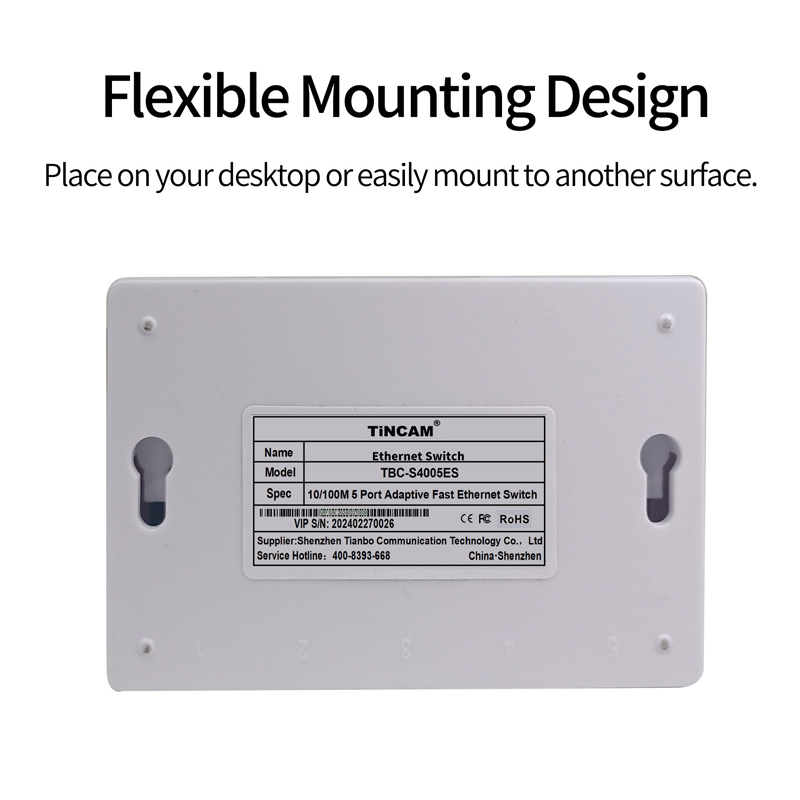

• Desktop installation, suitable for a variety of network application scenarios.
