Specifications
Model Number :
TBC-S4124N-3PF
Fixed Port :
24×10/100Mbps Adaptive RJ45+2×10/100/1000Mbps adaptive RJ45+1×1.25Gbps SFP optical port
Payment Terms :
T/T
Packet Forwarding Rate :
8Mpps
Communication mode :
Full-Duplex & Half-Duplex
Products status :
Stock
Installation :
Desktop/19-inch rack mounting
MOQ :
1
Packaging Details :
Package:Carton Box
Switching Capacity :
10.8Gbps
Power supply :
AC 100～240V, 50/60Hz (built-in power supply)
Supply Ability :
200,000 Pieces per Year
Product dimension :
310*182*45mm
Warranty :
1 year, lifetime maintenance
Delivery Time :
5-8 work day
Power consumption :
≤10 W
Operating Temperature :
-10℃～55℃
Brand Name :
TiNCAM
Product Name :
27-port Gigabit Ethernet switch
Certification :
CE,FCC,ROHS
Network Standards :
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Place of Origin :
China
Forwarding Mode :
Store-and-Forward
Description

Product Overview

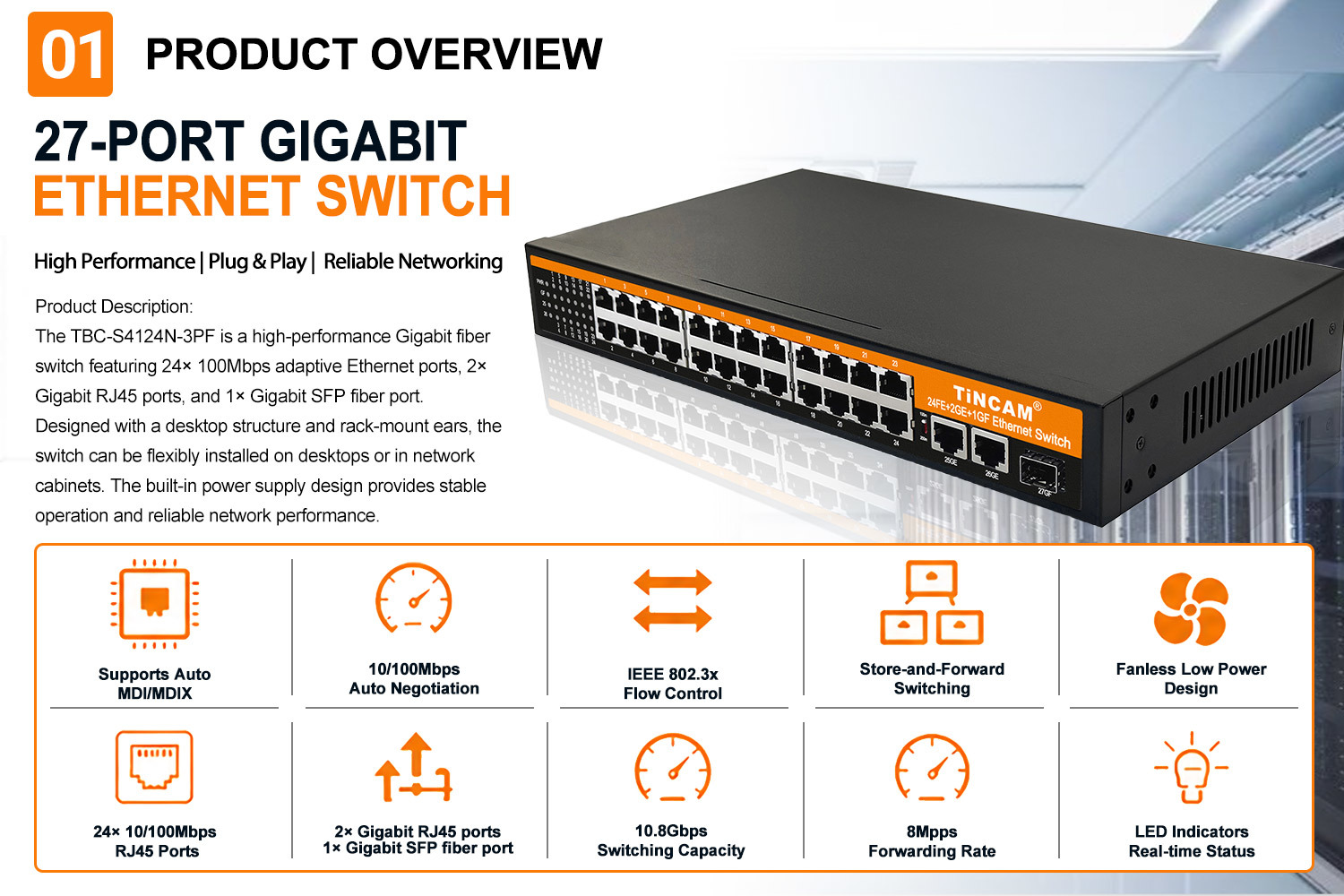

The TBC-S4124 N-3PF is a high-performance 19-port unmanaged Ethernet switch, equipped with 24 10/100Mbps auto-sensing RJ45 ports, 2 10/100/1000Mbps Gigabit RJ45 uplink ports, and 1 1.25Gbps Gigabit SFP optical port. It can meet the high-speed access needs of small and medium-sized enterprises, security monitoring, hotels, campuses, supermarkets, and industrial parks. The product supports IEEE 802.3 series standards, and all ports support Auto Negotiation and Auto MDI/MDIX. It adopts a store-and-forward switching architecture, achieving full-speed non-blocking forwarding. It is plug-and-play, requires no configuration, and is stable and reliable .


Key Features

• 24 100Mbps adaptive RJ45 ports, 2 Gigabit RJ45 uplink ports, and 1 Gigabit SFP optical port, meeting the requirements for hybrid copper and fiber optic networking.

• Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x network standards.

• All RJ45 ports support 10/100Mbps or 10/100/1000Mbps auto-negotiation and Auto MDI/MDIX.

• The store-and-forward switching architecture supports full-speed data forwarding and reduces network congestion.

• It supports automatic MAC address learning and aging, improving network switching efficiency.

• Supports IEEE 802.3x full-duplex flow control and Back Pressure half-duplex flow control.

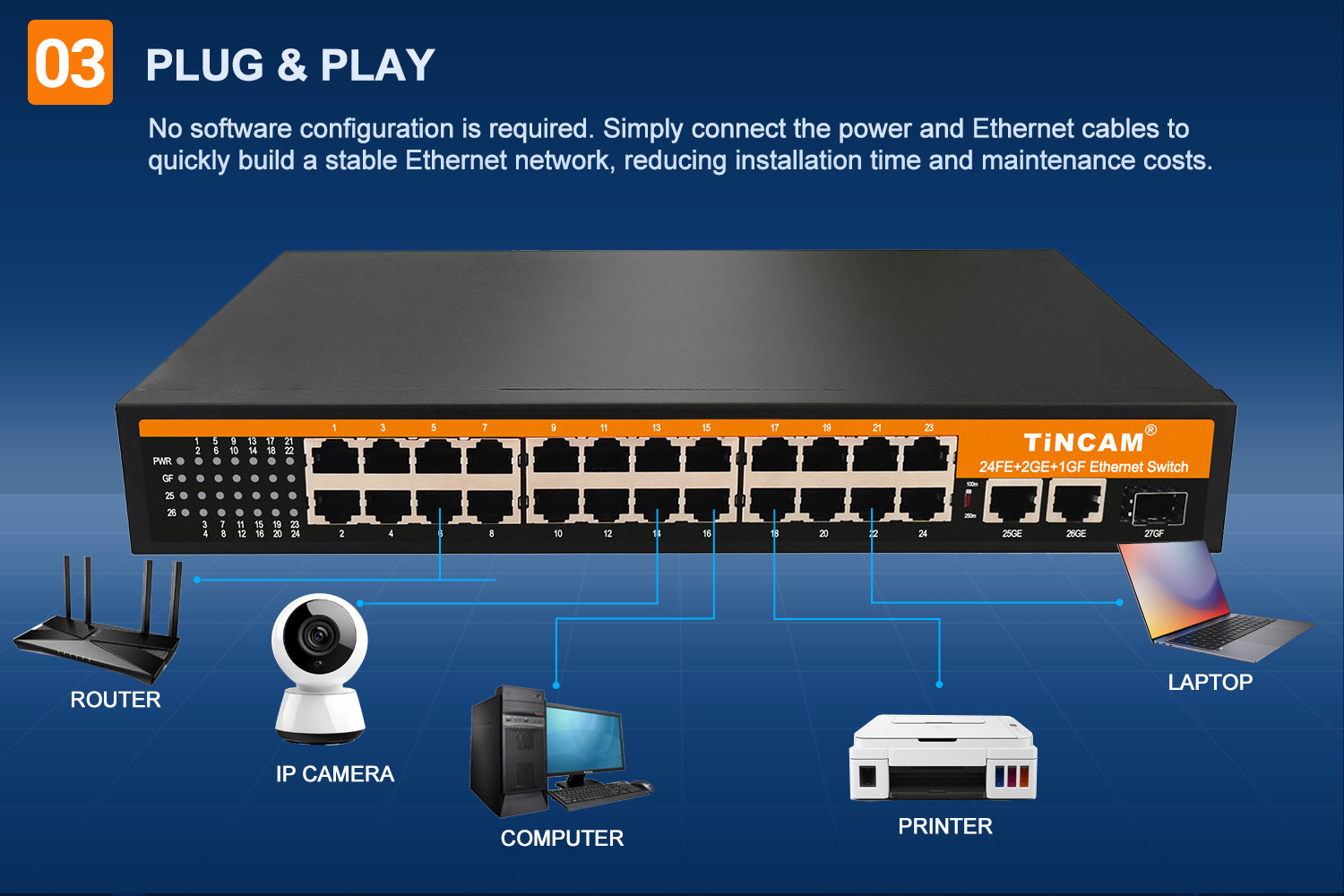

• Plug and play, no configuration or software management required.

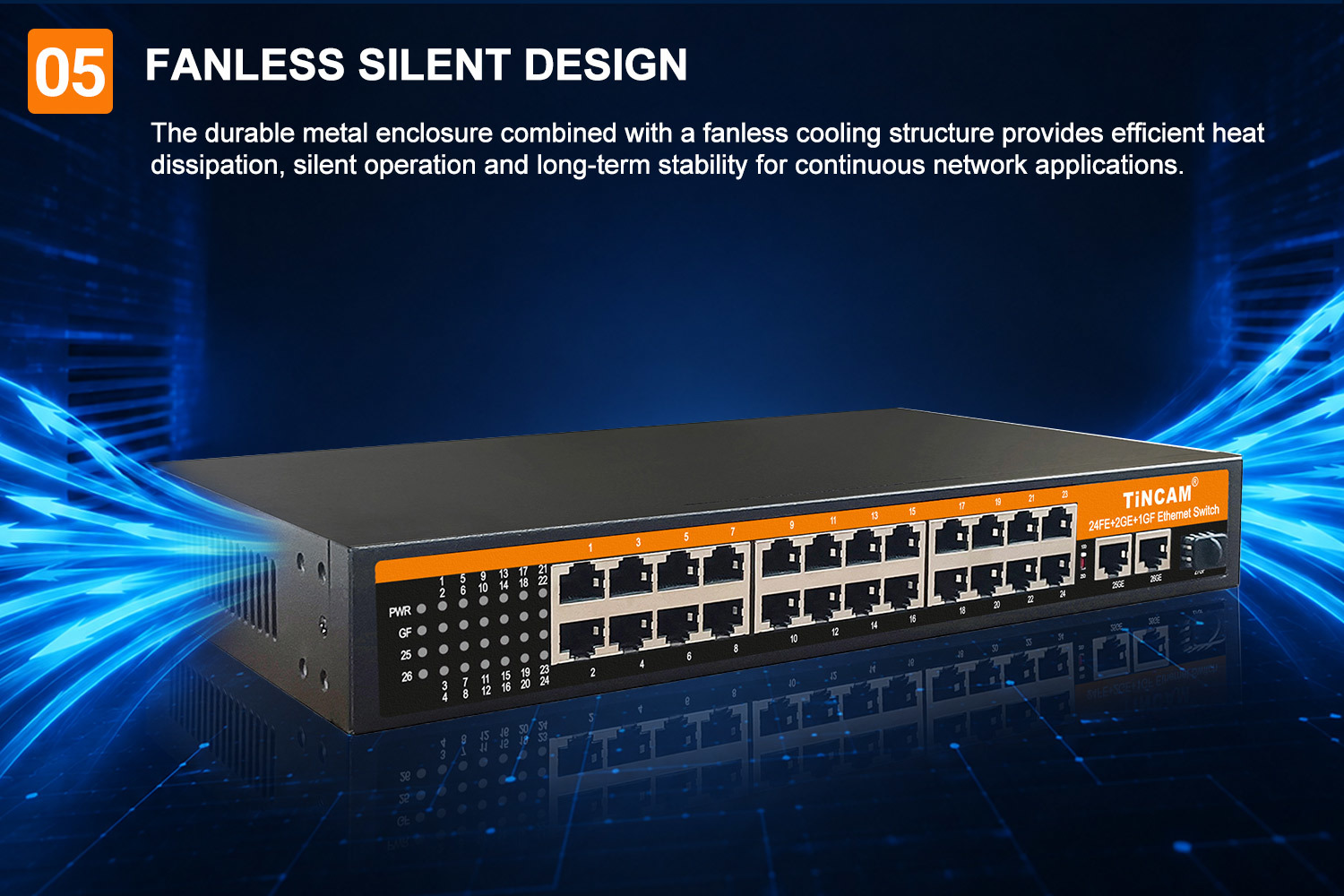

• Built-in highly reliable power supply, all-steel metal casing, natural heat dissipation, stable and durable.

• Supports desktop installation and 19-inch rack installation (with mounting ears).

• LED status indicators display the real-time status of power supply, link, and data transmission.
