Specifications
Model Number :
TBC-S4116N-3PF
Power supply :
AC 100～240V, 50/60Hz (built-in power supply)
Operating Temperature :
-10℃～55℃
MOQ :
1
Packaging Details :
Package:Carton Box
Operation temperature :
0 ℃~45 ℃
Fixed Port :
16×10/100Mbps Adaptive RJ45
Products status :
Stock
Payment Terms :
T/T
Power consumption :
≤ 8W
Switching Capacity :
3.2Gbps
Packet Forwarding Rate :
2.38Mpps
Network Standards :
IEEE802.3, IEEE802.3u, IEEE802.3x
Supply Ability :
200,000 Pieces per Year
Storage temperature :
-20℃~70℃
Communication mode :
Full-Duplex & Half-Duplex
Installation :
Desktop
Delivery Time :
5-8 work day
Product Name :
16-port 10/100Mbps Ethernet switch
Forwarding Mode :
Store-and-Forward
Certification :
CE,FCC,ROHS
Humidity :
10%~90% ,non-condensing
Place of Origin :
China
Product dimension :
210 × 155 × 45mm
Brand Name :
TiNCAM
Port No. :
19*10/100M RJ45 port+2*10/100/1000M Uplink+1*1.25G SFP Port
Warranty :
1 year, lifetime maintenance
Description

Product Overview

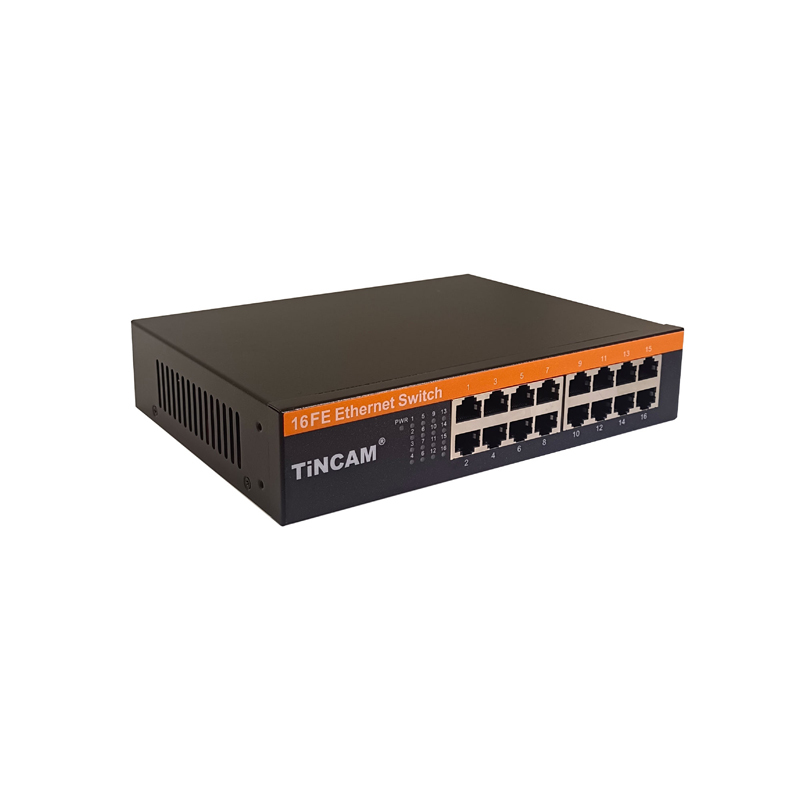

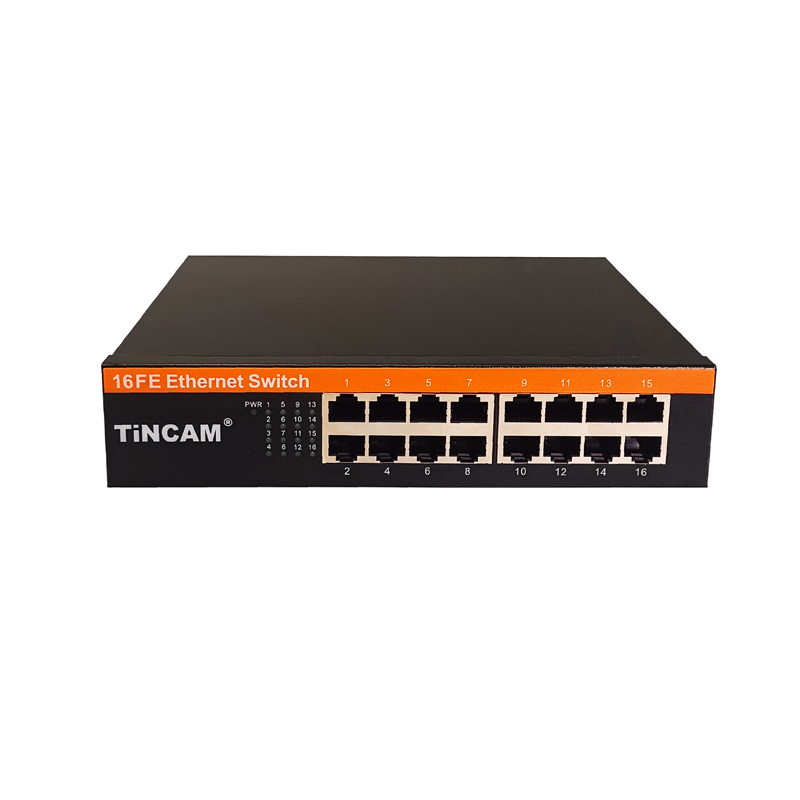

The TBC-S4016NS is a compact 16-port unmanaged Fast Ethernet switch featuring 16 auto-negotiating 10/100Mbps RJ45 Ethernet ports. It supports automatic speed negotiation and full-duplex/half-duplex operation. With a compact desktop design, steel alloy housing, and built-in power supply, it is suitable for offices, homes, small businesses, and other wired network expansion applications.

Key Features

• Equipped with 16 auto-negotiating 10/100Mbps RJ45 Ethernet ports for multi-device wired network connectivity.
• Supports IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards.
• Supports 10/100Mbps auto-negotiation and automatic full-duplex/half-duplex operation.
• Supports automatic MDI/MDI-X detection without the need to distinguish cable types.
• Supports IEEE 802.3x flow control in full-duplex mode and backpressure flow control in half-duplex mode.
• Adopts store-and-forward switching for stable data transmission.

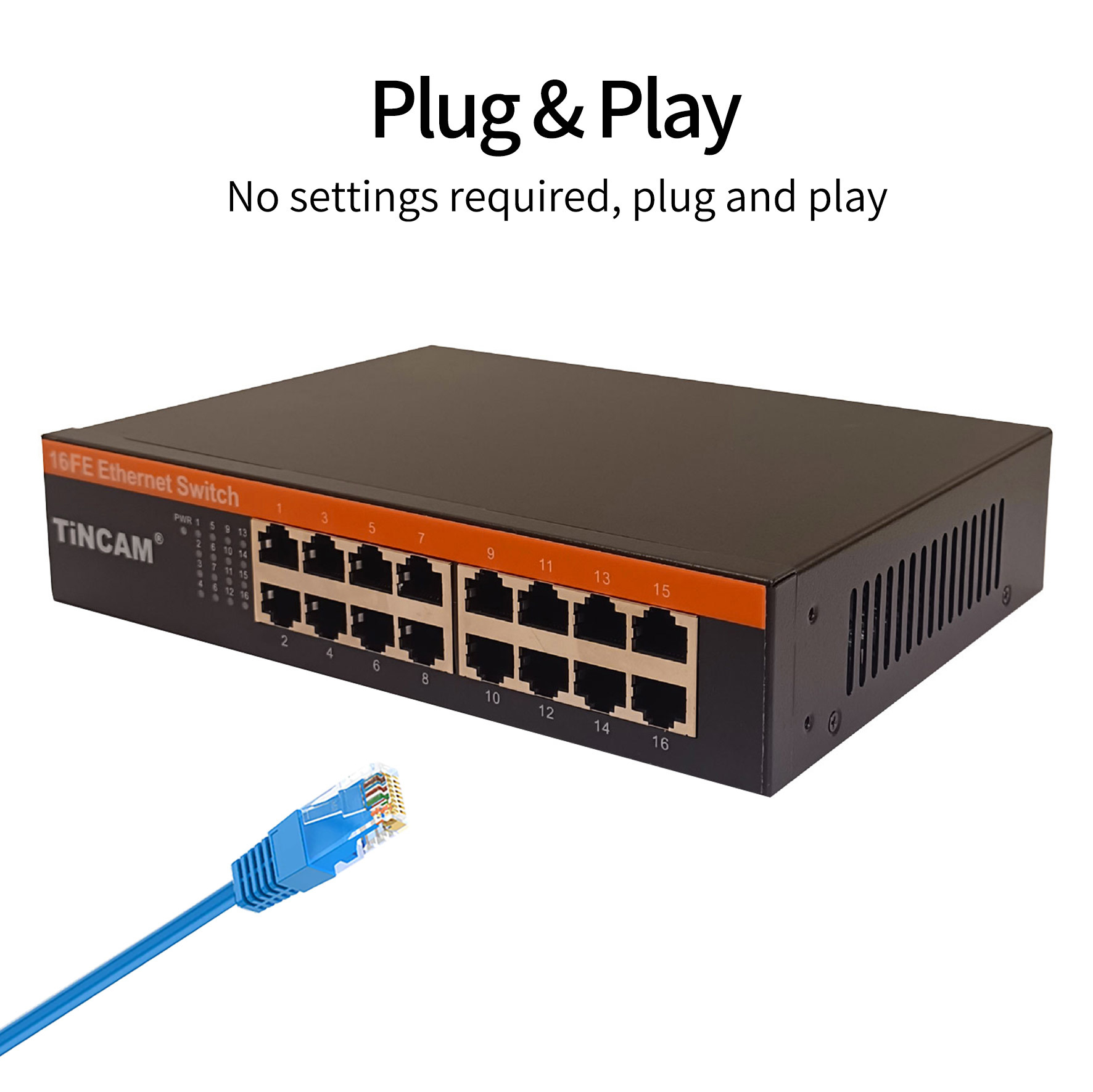

• Plug and play with no software configuration required.
• Compact desktop design with durable steel alloy housing.

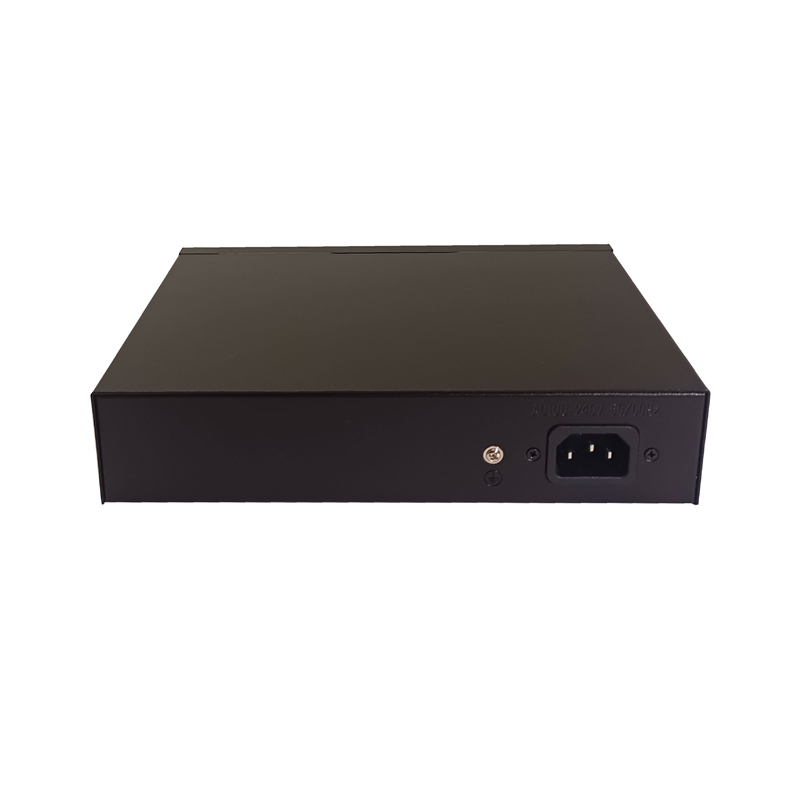

• Built-in power supply for convenient installation and operation.

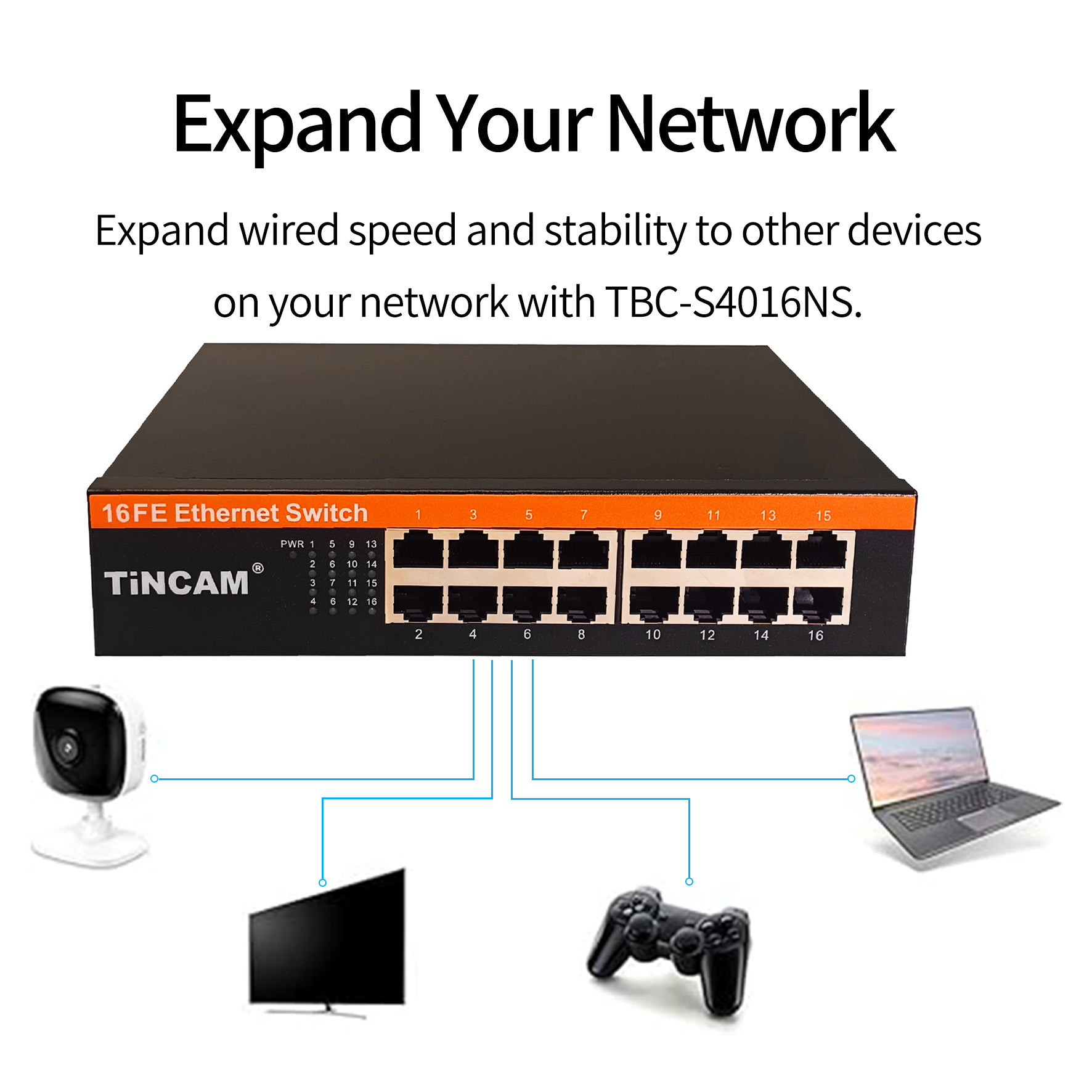

• Suitable for offices, homes, small businesses, and wired network expansion applications.
