8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Plastic Housing Plug and Play TBC-S4008ES
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Plastic Housing Plug and Play TBC-S4008ES
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Plastic Housing Plug and Play TBC-S4008ES
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Plastic Housing Plug and Play TBC-S4008ES
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Plastic Housing Plug and Play TBC-S4008ES
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Plastic Housing Plug and Play TBC-S4008ES
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Plastic Housing Plug and Play TBC-S4008ES
8 Port 10/100Mbps Fast Ethernet Switch Unmanaged Desktop Network Switch Plastic Housing Plug and Play TBC-S4008ES
Specifications
Model Number :
TBC-S4008ES
Network Standards :
IEEE802.3, IEEE802.3u, IEEE802.3x
Weight :
≤ 0.6kg
MOQ :
1
Packaging Details :
Package:Carton Box
Switching Capacity :
1.6Gbps
Transmission Distance :
100 meters
Dimensions :
125*60*24mm
Payment Terms :
T/T
Forwarding Rate :
1.19Mpps
Led Indicator Light :
PWR: Power; indicator light 1-8: Network indicator lights
Power Input :
DC 5V/ 1A external power adapter
Flow Control :
IEEE 802.3x Flow Control, Back Pressure
Supply Ability :
200,000 Pieces per Year
Fixed Port :
8 10/100Base-TX RJ45 auto-sensing ports
Auto-Negotiation :
Supported
Housing Material :
Engineering plastic casing
Delivery Time :
5-8 working day
Transmission Medium :
Category 5 and above twisted pair cable (Cat5e/Cat6/Cat6A)
Work Mode :
Full-duplex/half-duplex auto-negotiation
Warranty :
1 year, lifetime maintenance
Place of Origin :
China
MAC Address Table Size :
2K
Certification :
CE,FCC,ROHS
Exchange Method :
Store-and-forward
Brand Name :
TiNCAM
Product Type :
8- port 10/100Mbps Ethernet switch
Temperature :
Operating Temperature:-10～+55°C;Storage Temperature:-40～+75°C
Description

Product Overview

The TBC-S4008ES is an 8 - port 10/100Mbps auto-sensing Ethernet switch, compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x network standards. It features a plug-and-play design, allowing for quick and stable LAN setup without any configuration. The device provides eight 10/100Mbps auto-sensing RJ45 ports, supporting Auto Negotiation and Auto MDI/MDIX functions, automatically identifying cable types and effectively reducing cabling complexity. The product features a compact engineering plastic housing and an external 5V DC power supply, making it suitable for home, small office, shop, surveillance systems, and SOHO network environments.


Key Features

• 8 × 10/100Mbps auto-sensing RJ45 Ethernet ports

• Compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x network standards

• Supports Auto Negotiation

• Supports Auto MDI/MDIX, eliminating the need to distinguish between straight-through and crossover cables.

• Store-and-forward exchange mechanism

• Supports IEEE 802.3x full-duplex flow control and half-duplex back pressure flow control

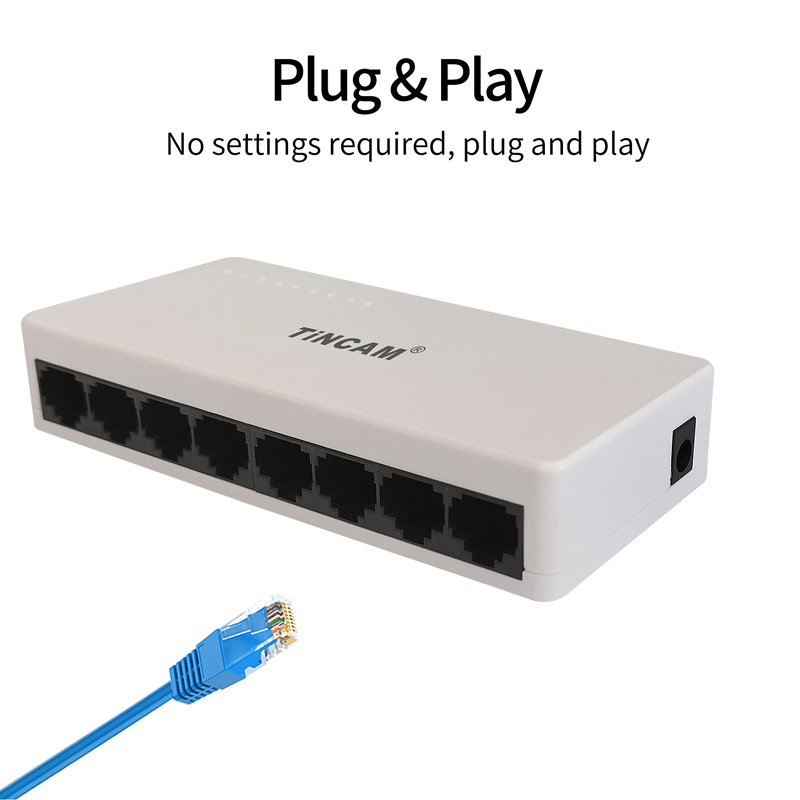

• Plug and play, no configuration required

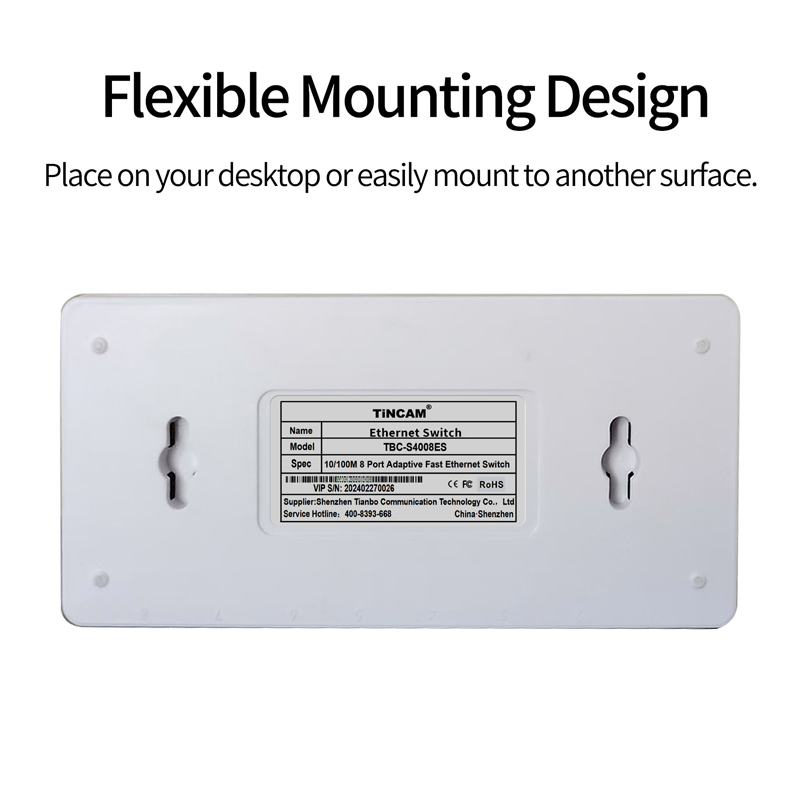

• Desktop installation, suitable for a variety of network application scenarios.
