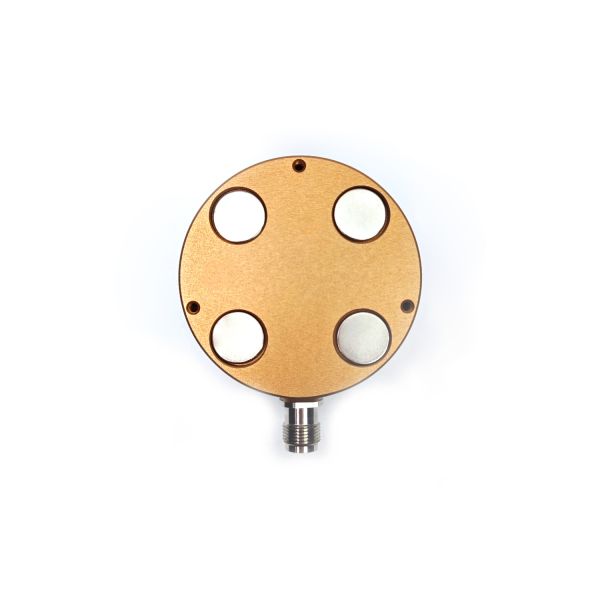

GPS GLONASS BeiDou Galileo QZSS L-Band Tri-Band Vertical Polarization GNSS Antenna
GPS GLONASS BeiDou Galileo QZSS L-Band Tri-Band Vertical Polarization GNSS Antenna
GPS GLONASS BeiDou Galileo QZSS L-Band Tri-Band Vertical Polarization GNSS Antenna
GPS GLONASS BeiDou Galileo QZSS L-Band Tri-Band Vertical Polarization GNSS Antenna
GPS GLONASS BeiDou Galileo QZSS L-Band Tri-Band Vertical Polarization GNSS Antenna
GPS GLONASS BeiDou Galileo QZSS L-Band Tri-Band Vertical Polarization GNSS Antenna
GPS GLONASS BeiDou Galileo QZSS L-Band Tri-Band Vertical Polarization GNSS Antenna
GPS GLONASS BeiDou Galileo QZSS L-Band Tri-Band Vertical Polarization GNSS Antenna
GPS GLONASS BeiDou Galileo QZSS L-Band Tri-Band Vertical Polarization GNSS Antenna
GPS GLONASS BeiDou Galileo QZSS L-Band Tri-Band Vertical Polarization GNSS Antenna
Specifications
Type :
GPS/GNSS Antenna
Brand Name :
RIDA Antennaer
LNA Gain :
38±2dB
Model Number :
RIDA
Place of Origin :
Guangdong, China
Price :
$22-25
MOQ :
1
Size :
67.5mm*31mm
Frequency Range :
GPS:L1/L2/L5; BDS:B1/B2/B3; GLONASS:G1/G2/G3; Galileo:El/E5a/E5b
Horizontal plane coverage angle :
360
Impedance: :
50Ω
Color :
white
VSWR :
≤2
Polarization :
Vertical
Connector :
TNC or others
Operational Temperature :
-50~+85℃
Description
GPS GLONASS BeiDou Galileo QZSS L-Band Tri-band GNSS Antenna Customization scope:Antenna Performance, Appearance, Cable length, Connector type

Products Description
GPS GLONASS BeiDou Galileo QZSS L-Band Tri-Band Vertical Polarization GNSS Antenna
The three-system seven-frequency circular aerial antenna is a high-gain, low wind resistance type antenna.
It has the features of compact size, exquisite appearance, high sensitivity, low power consumption and high reliability, which can
effectively improve the positioning accuracy of the carrier in high speed movement.
GPS GLONASS BeiDou Galileo QZSS L-Band Tri-Band Vertical Polarization GNSS Antenna
GPS GLONASS BeiDou Galileo QZSS L-Band Tri-Band Vertical Polarization GNSS Antenna
Product Parameters & Customizable Range
Antenna
Frequency range
GPS:L1/L2/L5;
BDS:B1/B2/B3; GLONASS:G1/G2/G3; Galileo:El/E5a/E5b
L-Band
impedance
50Ω
Polarization
RHCP
Antenna axis ratio
≤1.5dB
Horizontal plane coverage angle
360°
Output standing wave
≤2.0
Maximum gain
4dBi
Dimension
⊘67.5mm*31mm
LNA
Gain
38±2dB
Noise factor
≤2dB
Output standing wave
≤2.0
Operating Voltage
3.3~12VDC
Operating current
≤45mA
Gain Flatness
±2dB
Working Environment
Operating temperature
-40℃~+85℃
Storage temperature
-55℃~+85℃
Humidity
95%Non-condensing
