Specifications
Model Number :
RDYLR-1
Weight :
29g
Place of Origin :
Guangdong, China
Connector type :
Male
Impendance :
50Ω
Packaging Details :
opp bag single pcs
Dimension :
40.8*43.5mm
Certification :
ISO9001/IATF16949
Polarization :
RHCP
Gain :
35±2dBi
Supply Ability :
400000pcs per month
Polarity :
RHCP
Item :
GNSS multi-star multi-frequency four-arm spiral antenna
Frequency Range (MHZ) :
1197MHz~1278MHz 1559MHz~1606MHz
Type :
GPS/GNSS Antenna
Brand Name :
RIDA Antennaer
VSWR :
<1.8
Application :
Drone, agriculture, measurement ect
MOQ :
1
Delivery Time :
10-15days
Description
RTK Four-arm helical waterproof antenna four-stars full-frequency high gain UAV Antenna GNSS GPS L1 L2 L5 L-Band Customization scope:Antenna Performance, Appearance style, Cable length, Connector type

Products Description
RTK Helical Antenna for UAV Multi-Frequency GPS/GLONASS/Galileo/BeiDou - IP67 Waterproof - Lightweight Compact Design

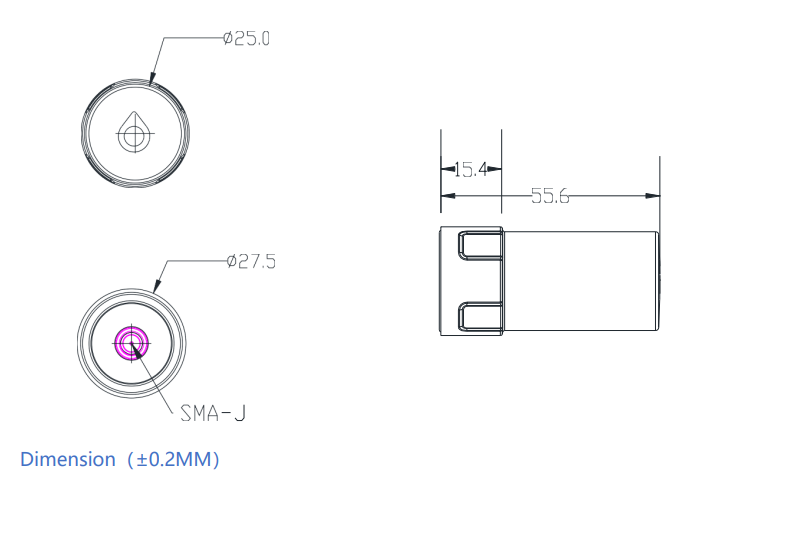

Structural Dimensions & Performance Diagrams
RTK Helical Antenna for UAV Multi-Frequency GPS/GLONASS/Galileo/BeiDou - IP67 Waterproof - Lightweight Compact Design
Product Parameters & Customizable Range
ANTENNA

Antenna Architecture
Quadrifilar Helix

Supported positioning signal bands
GPS: L1/L2/L5
GLONASS: L1/L2/L3
BDS: B1/B2/B3
Galileo: E1/E5/E6 L-band
Peak Gain*
≥2.0 dBi
Polarization
Right circular polarization(RHCP)
Axial Ratio@zenith
≤1.5dB
Azimuth Coverage
360°
Impedance
50 ohm
LNA

Frequency Range
1164-1278 MHZ
1525-1615 MHZ
LNA Gain*
35±3.0dB (Typ. @25°C )
Noise Figure*
≤1.5 dB@25°C , Typ.
Output VSWR
≤1.8:1 typ. 2.0:1max
Operation Voltage
3.0~16V DC
Operation Current
≤45mA
MECHANICALS & ENVIRONMENTAL

Dimension
Φ39.1 * Φ40.2 * 40.8
Connector
SMA-Male
Radome
ABS+PC
Weight
≤18g
Attachment Method
Through connectors or other custom accessories (installation varies from product to product)
Operating Temp
－40℃～＋85℃
Storage Temp
－45℃～＋85℃
Humidity
95% No-condensing
Waterproof
IP67
