Specifications
MOQ :
5
Frequency Range :
1166MHz-1278MHz, 1521MHz-1608MHz
Delivery Time :
10-15days
Connector :
TNC or Customized
VSWR :
<2
Model Number :
RDYLC-1
Supply Ability :
400000pcs per month
Supported positioning signal bands :
GPS:L1/L2/L5; BDS:B1/B2/B3; GLONASS:G1/G2/G3; Galileo:El/E5a/E5b/E6
Place of Origin :
Guangdong, China
Phase-center repeatability :
≤1.0mm
Impedance :
50Ω
Service :
OEM/ODM
Type :
GPS/GNSS Antenna
Certification :
ISO9001/IATF16949
Brand Name :
RIDA Antennaer
Gain :
40±2dB
Packaging Details :
opp bag single pcs
Description
Products Description
RTK Antenna
GNSS Antenna for Precise GPS GLONASS Galileo Navigation RTK Compass in Agriculture Deformation ROHS Certified

GNSS Antenna for Precise GPS GLONASS Galileo Navigation RTK Compass in Agriculture Deformation ROHS Certified

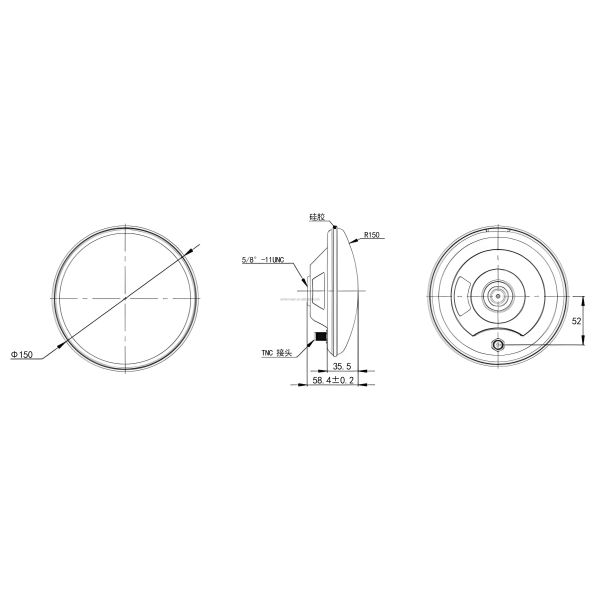

Structural Dimensions & Performance Diagrams
GNSS Antenna for Precise GPS GLONASS Galileo Navigation RTK Compass in Agriculture Deformation ROHS Certified
GNSS Antenna for Precise GPS GLONASS Galileo Navigation RTK Compass in Agriculture Deformation ROHS Certified
( Accept OEM/ODM)

Product Parameters & Customizable Range
ANTENNA

Patch Architecture
Dual Four-point-feed
Supported positioning signal bands
GPS:L1, L2, L5; QZSS: L1, L2, L5, L6

BDS: B1A, B1I, B1C, B2I, B2a, B2b, B3A, B3AE, B3Q;

GLONASS:G1, G2, G3; ABAS: L1, L5

Galileo:El, E5a, E5b, E6;
Peak Gain*
≥5.0dBi@Fc
Polarization
RHCP
Axial Ratio@zenith
≤ 1.5dB
Azimuth Coverage
360°
Impedance
50 ohm
Phase-center accuracy
≤2.0mm
Phase-center repeatability
≤ 1.0mm
LNA

Frequency Range
1166MHz-1278MHz

1521MHz-1608MHz
LNA Gain*
40±2.0dB (Typ. @25°C)
Group Delay variation
≤ 15ns
Noise Figure*
≤2 0 dB@25°C , Typ (Pre-filtered)
Output VSWR
≤ 1.8:1 typ. 2.0:1max
Operation Voltage
3.0~ 16V DC
Operation Current
≈45mA
MECHANICALS & ENVIRONMENTAL

Dimension
Φ150mm*58.4mm
Connector
TNC ( Female)
Radome
PC+PBT
Weight
≈450g
Operating Temp
－40℃~＋85℃
Storage Temp
－45℃~＋85℃
Humidity
95% No-condensing
Waterproof
IP67
