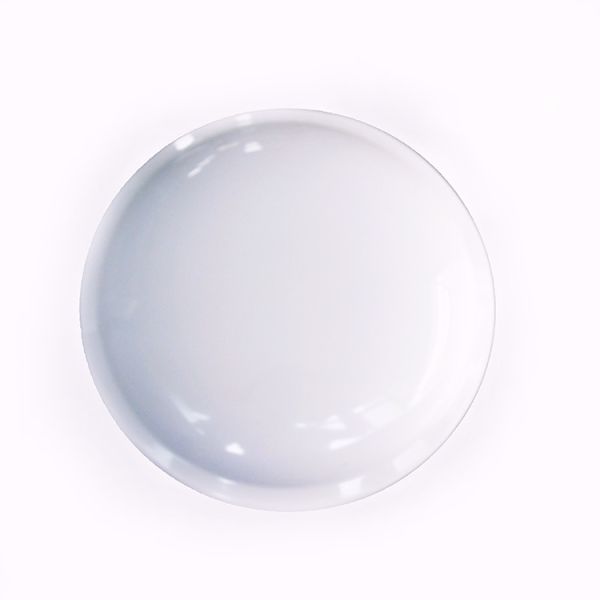

AG35 Externe GPS GNSS Millimeter Precision Performance Antenne Mesure AntenneIP67 Etanche GNSS Antenne RTK Antenna
AG35 Externe GPS GNSS Millimeter Precision Performance Antenne Mesure AntenneIP67 Etanche GNSS Antenne RTK Antenna
AG35 Externe GPS GNSS Millimeter Precision Performance Antenne Mesure AntenneIP67 Etanche GNSS Antenne RTK Antenna
AG35 Externe GPS GNSS Millimeter Precision Performance Antenne Mesure AntenneIP67 Etanche GNSS Antenne RTK Antenna
AG35 Externe GPS GNSS Millimeter Precision Performance Antenne Mesure AntenneIP67 Etanche GNSS Antenne RTK Antenna
AG35 Externe GPS GNSS Millimeter Precision Performance Antenne Mesure AntenneIP67 Etanche GNSS Antenne RTK Antenna
AG35 Externe GPS GNSS Millimeter Precision Performance Antenne Mesure AntenneIP67 Etanche GNSS Antenne RTK Antenna
AG35 Externe GPS GNSS Millimeter Precision Performance Antenne Mesure AntenneIP67 Etanche GNSS Antenne RTK Antenna
AG35 Externe GPS GNSS Millimeter Precision Performance Antenne Mesure AntenneIP67 Etanche GNSS Antenne RTK Antenna
AG35 Externe GPS GNSS Millimeter Precision Performance Antenne Mesure AntenneIP67 Etanche GNSS Antenne RTK Antenna
Specifications
Model Number :
RDYLR-2
Connectivity :
as requirement
Brand Name :
RIDA Antennaer
Delivery Time :
10-15days
VSWR :
≤2
Polarization :
Vertical
Patch architectre :
Dual Four-point-feed
Impedance: :
50Ω
Impedance :
50 ohm
Type :
GPS/GNSS Antenna
Packaging Details :
opp bag single pcs
Material :
ABS
Supply Ability :
400000pcs per month
Color :
white
Peak Gain :
≥5.0dBi@Fc
Place of Origin :
Guangdong, China
Operational Temperature :
-40~+85℃
MOQ :
3
Supported positioning signal bands :
GPS:L1/L2/L5; BDS:B1/B2/B3; GLONASS:G1/G2/G3; Galileo:El/E5a/E5b/E6
Certification :
ISO9001/IATF16949
Description
Competitive price Driverless car Gnss external high precision antenna RTK ranging antenna Customization scope:Antenna Performance, Appearance, Cable length, Connector type

Products Description
AG35 Externe GPS GNSS Millimeter Precision Performance Antenne Mesure AntenneIP67 Etanche GNSS Antenne RTK Antenna
Product Parameters & Customizable Range
Electrical Specifications

Support satellite signal
BDS:B1,B2,B3;
GPS:L1,L2,L5;
GLONASS:G1,G2,G3;
Galileo:El,E2,E5a,E5b,E6 ,L-band




Frequency
1154MHz~1300MHz;1551MHz~1615MHz
Impedance matching
50 Ω
Polarization mode
Right circular polarization
Axial ratio
≤3dB
Horizontal coverage angle
360°
Phase center error
≤2.0mm
Gain
40±2dB
Noise Figure
≤1.5dB
Output V.S.W.R
<2.0:1
In-band flatness
±2dB
Front to back Power (dB)
±60°≥15
DC Voltage (V)
3.3～18
Current (mA)
<45

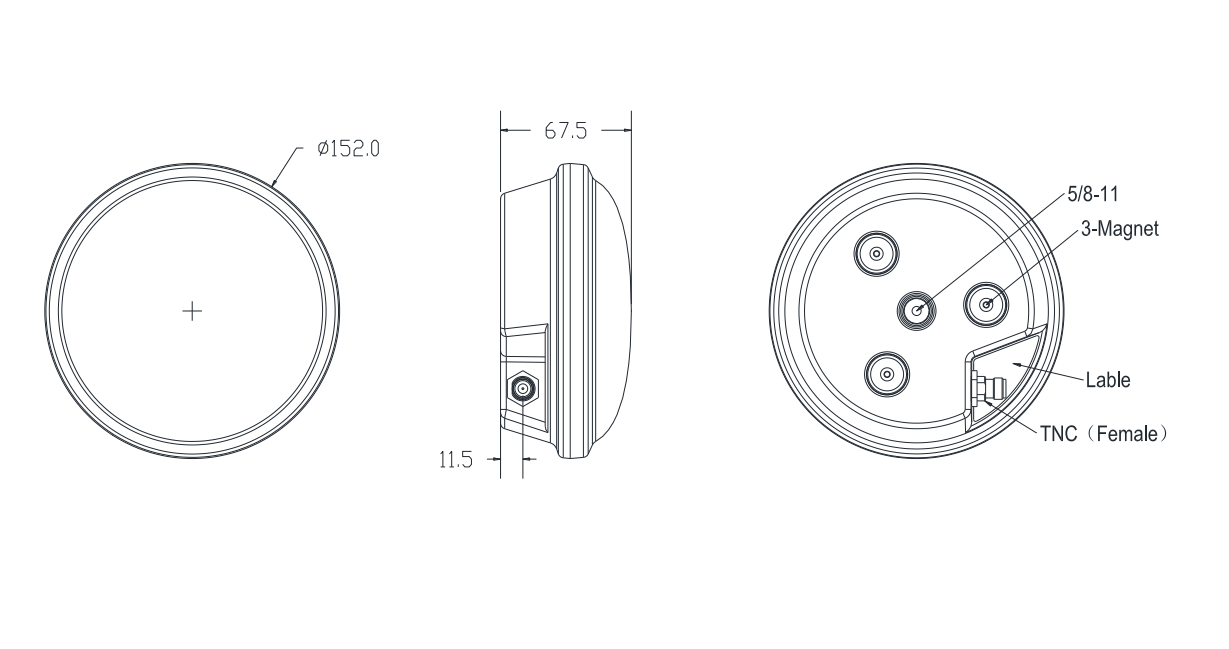

Mechanical Specifications

Connector Type
TNC-K
Dimensions(mm)
Φ147×62 mm Φ160*62mm
Relative Humidity
90%
Operating Temperature (℃)
-40 ~ +70℃
Weight(kg)
＜0.46
Storage Temperature (℃)
-55℃～+85℃
Operation Environment
Outdoor
