Specifications
LNA Gain :
40±2dB
Model Number :
RDYLC-1
Certification :
ISO9001/IATF16949
Polarization :
RHCP
Axial Ratio(min) :
<3
Connector :
Fakra or Sma or Others
VSWR :
<1.8
Type :
GPS/GNSS Antenna
Supply Ability :
400000pcs per month
Supply Voltage :
DC3.3-5.0V
MOQ :
1
Delivery Time :
10-15days
Packaging Details :
opp bag single pcs
Place of Origin :
Guangdong, China
Impedance :
50Ω
Service :
OEM/ODM
Noise Figure :
<1.5
Brand Name :
RIDA Antennaer
Description
Products Description
GPS L1 L2 L5 Automotive-grade GNSS RTK Antenna 1575.42 MHz 1227.60 MHz Dual 1176.45 MHz for NEV Autonomous Driving and Robotics
GNSS Antenna

GNSS antenna, using stacked design, support BeiDou II, GPS, GLONASS and GALILEO system satellite navigation signal reception. Built-in low-noise amplifier, multi-stage filter, good out-of-band rejection, anti-interference capability. Multi-stage filter, good out-of-band suppression, strong anti-interference ability, to ensure normal work in the harsh electromagnetic environment. It meets the current demand for multi-system compatibility and high-precision measurement.
GPS L1 L2 L5 Automotive-grade GNSS RTK Antenna 1575.42 MHz 1227.60 MHz Dual 1176.45 MHz for NEV Autonomous Driving and Robotics

Applications

-Smart Cities
- Industrial Mapping
- Disaster Monitoring
- Automated driving
- Electrical inspection
- Marine Positioning - Agricultural Machinery - Logistics Tracking

KEY FEATURES

- Adopt single feed point technology design, ensure the
right circular polarization and phase center performance,
reduce the impact of measurement error; - Antenna unit with high passive gain and wide directional
map beam, ensuring the reception of low elevation angle
signals; - Built-in filtering, low noise figure and strong
anti-interference capability; - IP67 protection for the antenna to work in the field for a
long time provides a guarantee.

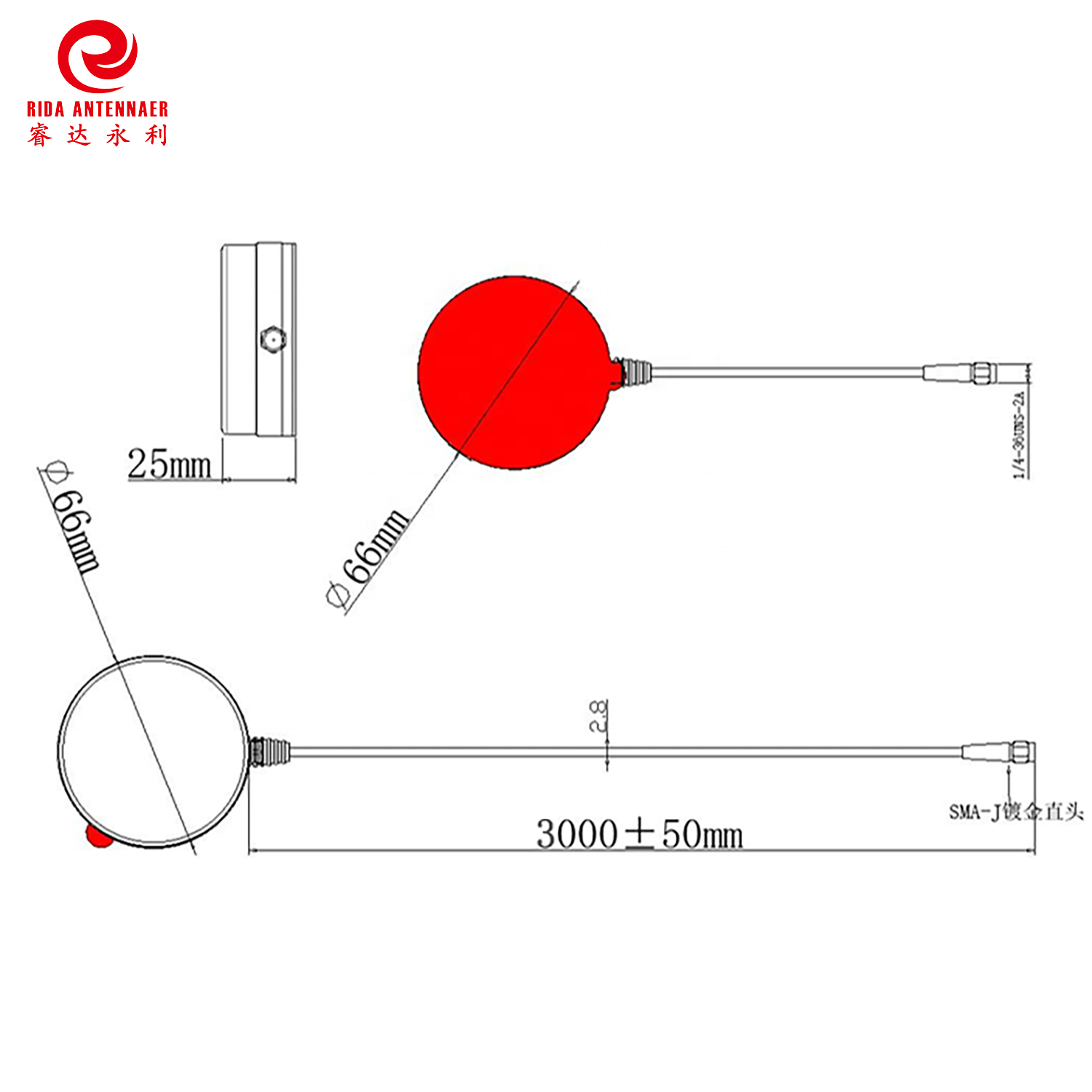

Structural Dimensions & Performance Diagrams
GPS L1 L2 L5 Automotive-grade GNSS RTK Antenna 1575.42 MHz 1227.60 MHz Dual 1176.45 MHz for NEV Autonomous Driving and Robotics
GPS L1 L2 L5 Automotive-grade GNSS RTK Antenna 1575.42 MHz 1227.60 MHz Dual 1176.45 MHz for NEV Autonomous Driving and Robotics
( Accept OEM/ODM)
Product Parameters & Customizable Range
ANTENNA

Patch Architecture
Dual Feed, Dual Stacked Patch


Supported positioning signal bands
GPS: L1/L5; BDS: B1/B2a; Galileo: E5a/E5b






Peak Gain*
≥4.0dBi@Fc, with100mmgroundplane
Polarization
Right circular polarization (RHCP)
VSWR
< 2
Azimuth Coverage
360°
Impedance
50 Ω
LNA

Frequency Range
1164MHz~1217MHz,1559MHz~1605MHz;

1559MHz~1605MHz
LNA Gain*
40±2.0dB (Typ. @25°C) / 28±2.0dB(Typ.@25°C)
Noise Figure*
≤2.0dB@25°C,Typ
Output VSWR
≤ 1.8:1 typ. 2.0:1max
Operation Voltage
3.3VDC
Operation Current
≤25mA
MECHANICALS & ENVIRONMENTAL



Dimension
Ø66mm*25mm
Connector
SMA male (Customizable)
Radome
ABS+PC
Weight
≈115g
Attachment Method
3M Adhesive or magnetic
Operating Temp
－40℃~＋85℃
Storage Temp
－45℃~＋85℃
Humidity
95% No-condensing
Waterproof
IP67
