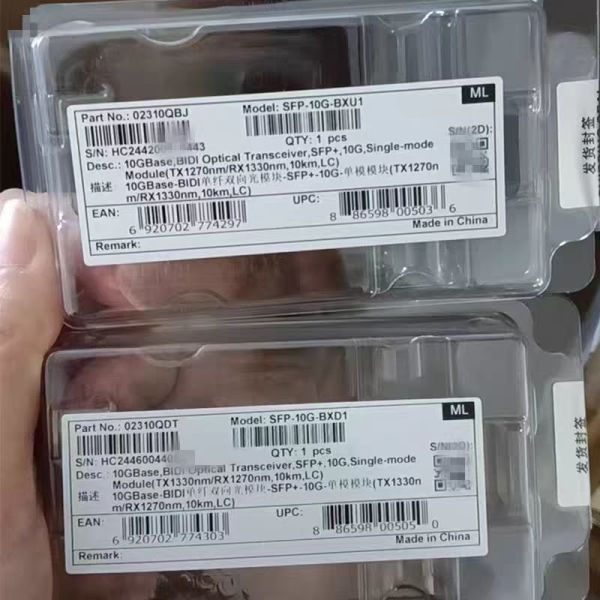

Multimode 10G SFP+ Transceiver Module 02310QBJ 02310QDT BX10-D BiDi 1270nm-RX Simplex LC
Multimode 10G SFP+ Transceiver Module 02310QBJ 02310QDT BX10-D BiDi 1270nm-RX Simplex LC
Specifications
Brand Name :
Huawei
Model Number :
02310QBJ 02310QDT SFP-10G-BXD1
Certification :
CE
Place of Origin :
China
MOQ :
2pcs
Price :
$35
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
200 Pairs
Delivery Time :
3-5 working days
Packaging Details :
Optic Box
Condition :
Genuine New
Dimensions :
13.4 mm x 56.5 mm x 8.5 mm
Transmissiondistance :
Up to 10 km (model dependent)
Compliancestandards :
RoHS, IEEE 802.3, MSA
Connectortype :
LC
Mtbf :
Over 1 million hours
Operatingtemperature :
-40°C to 85°C
Productname :
Huawei SFP
Datarate :
1.25 Gbps
Hotpluggable :
Yes
Powerconsumption :
< 1 W
Producttype :
Small Form-factor Pluggable (SFP) Transceiver
Interface :
SFP electrical interface
Compatibility :
Huawei switches, routers, and optical modules
Protocolsupport :
Ethernet, Fibre Channel, SONET/SDH
Wavelength :
850 nm / 1310 nm / 1550 nm (depending on model)
Description

Huawei SFP-10G-BXD1 02310QBJ 02310QDT 10GBASE-BX SFP+ Transceiver Module (SMF, 1330nm-TX/1270nm-RX, 10km, LC, DOM)

SFP+ transceiver supports up to 10km link lengths over OS2 SMF via an LC simplex connector. This 10G BiDi SFP+ transceiver, featured with data transmission over a single strand of fiber, the one transceiver transmits a 1330-nm channel and receives a 1270-nm signal, whereas the other BiDi SFP+ optics transmits at a 1270-nm wavelength and receives a 1330-nm signal.
Digital diagnostics can also be used through the I2C interface designated by SFF-8472 to allow access to real-time operating parameters. Each BIDI SFP+ transceiver module is individually tested to be used on a series of switches, routers, servers, network interface cards (NICs) etc. Featuring low power consumption and high speed, this 10G BIDI SFP+ transceiver is ideal for enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.

Specifications
Model
SFP-10G-BXD1 02310QBJ 02310QDT
Vendor Name
Huawei
Form Factor
SFP+
Max Data Rate
11.3168Gbps
Wavelength
1330nm-TX/1270nm-RX
Max Cable Distance
10km
Connector
Simplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-8.2~0.5dBm
Receiver Sensitivity
< -14.4dBm
Power Budget
6.2dB
Receiver Overload
0.5dBm
Typical Power Consumption
≤1W
Extinction Ratio
>3.5dB
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Protocols
SFP+ MSA Compliant, CPRI, eCPRI
