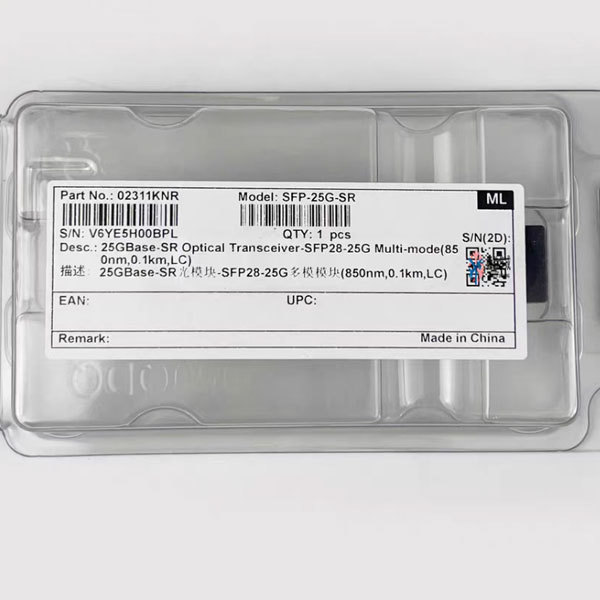

Dual Rate 850nm Huawei SFP Transceiver Module 02311KNR SFP-25G-SR 25GBASE-SR SFP28 100m DOM Duplex UPC
Dual Rate 850nm Huawei SFP Transceiver Module 02311KNR SFP-25G-SR 25GBASE-SR SFP28 100m DOM Duplex UPC
Specifications
Brand Name :
Huawei
Model Number :
02311KNR/SFP-25G-SR
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$39
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100 pcs
Delivery Time :
3-5 working days
Packaging Details :
Optic Box
Condition :
Genuine New
Protocolsupport :
IEEE 802.3z Gigabit Ethernet
Connectortype :
LC connector
Powerconsumption :
≤ 1 W
Mtbf :
≥ 1,000,000 hours
Hotpluggable :
true
Productname :
Huawei SFP
Wavelength :
850 nm / 1310 nm / 1550 nm (depending on model)
Operatingtemperature :
-40°C to 85°C
Dimensions :
13.4 mm x 56.5 mm x 8.5 mm
Transmissiondistance :
Up to 80 km (depending on model)
Interface :
Electrical: SFI, Optical: 1000BASE-SX/LX/ZX
Warranty :
1 year limited warranty
Producttype :
Small Form-factor Pluggable (SFP) Transceiver
Compatibility :
Huawei switches, routers, and other network devices
Datarate :
1.25 Gbps
Description

02311KNR SFP-25G-SR 10/25GBASE-SR SFP28 DOM Optical Transceiver Module for Data Center (MMF, 850nm, 100m, LC, DOM)

SFP28 transceiver provides 10/25GBASE-SR throughput up to 100m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector. This module provides 10G backward compatibility and simplifies network upgrade. It provides connectivity option for 25G Ethernet, 10G Ethernet and data center. It is fully compliant with the SFP28 MSA, SFF-8431, SFF-8432, SFF-8472 and IEEE802.3by standard.

Specifications
Part Number
02311KNR SFP-25G-SR
Vendor Name
Huawei
Form Factor
SFP28
Max Data Rate
Dual Rate 10Gbps and 25.78Gbps
Wavelength
850nm
Max Cable Distance
100m@OM4/70m@OM3 at 25G
100m@OM3 at 10G
Connector
Duplex LC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PIN
TX Power
-6.4~2.4dBm
Minimum Receiver Power
＜-6dBm
Power Budget
-0.4dB
Receiver Overload
2.4dBm
Power Consumption
≤1W
Extinction Ratio
2dB
CDR
TX & RX Built-in CDR
Inbuilt FEC
No
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Protocols
SFP28 MSA, SFF-8432, SFF-8472, CPRI, eCPRI , IEEE 802.3by
Core Size
50/125 µm
Packaging Technology
COB Packaging
DDM/DOM
Supported
Warranty
3 Years
