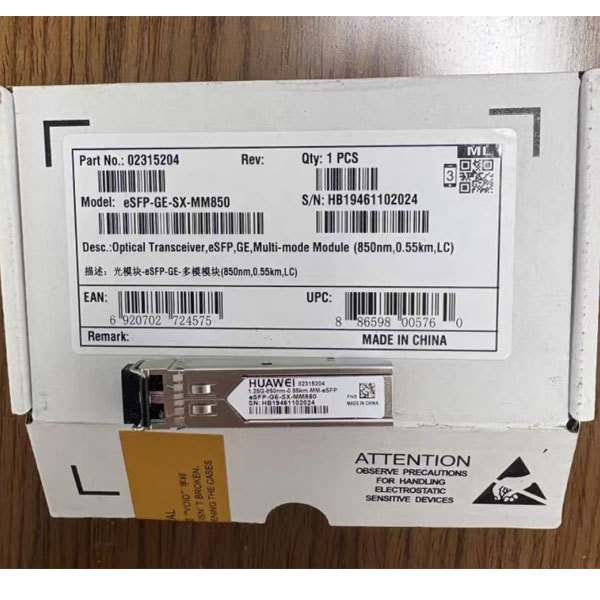

ESFP-GE-SX-MM850 Huawei SFP Optical Transeiver Multimode Module 02315204
ESFP-GE-SX-MM850 Huawei SFP Optical Transeiver Multimode Module 02315204
Specifications
Brand Name :
Huawei
Model Number :
eSFP-GE-SX-MM850
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$16
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
200 pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Condition :
Genuine new
Standardscompliance :
IEEE 802.3, MSA compliant
Interface :
SFP electrical interface
Hotswappable :
true
Application :
Gigabit Ethernet, Fibre Channel, and other optical communication
Mtbf :
Over 1 million hours
Datarate :
1.25 Gbps
Powerconsumption :
< 1 W
Dimensions :
13.4 mm x 56.5 mm x 8.5 mm
Productname :
Huawei SFP
Compatibility :
Huawei switches, routers, and other network devices
Transmissiondistance :
Up to 10 km (model dependent)
Producttype :
Small Form-factor Pluggable (SFP) Transceiver
Wavelength :
850 nm / 1310 nm / 1550 nm (depending on model)
Connectortype :
LC
Operatingtemperature :
-5°C to 70°C
Description

02315204 - Genuine Huawei eSFP-GE-SX-MM850 Optical Transeiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)

Basic Information

  • Module name: eSFP-GE-SX-MM850
  • Part Number: 02315204
  • Model: eSFP-GE-SX-MM850
  • Form factor: eSFP
  • Application standard: 1000BASE-SX
  • Connector type: LC
  • Optical fiber type: MMF
  • Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
  • Transmission rate [bit/s]: 1 Gbit/s
  • Target transmission distance [km]:
    • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
    • Multimode fiber (OM1): 0.275 km
    • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km
    • Multimode fiber (OM2): 0.55 km
    • Multimode fiber (OM3): 1 km

Transmitter Optical Characteristics

  • Center wavelength [nm]: 850 nm
  • Maximum Tx optical power [dBm]: -2.5 dBm
  • Minimum Tx optical power [dBm]: -9.5 dBm
  • Minimum extinction ratio [dB]: 9 dB

Receiver Optical Characteristics

  • Rx sensitivity [dBm]: -17.0 dBm
  • Overload power [dBm]: 0 dBm
