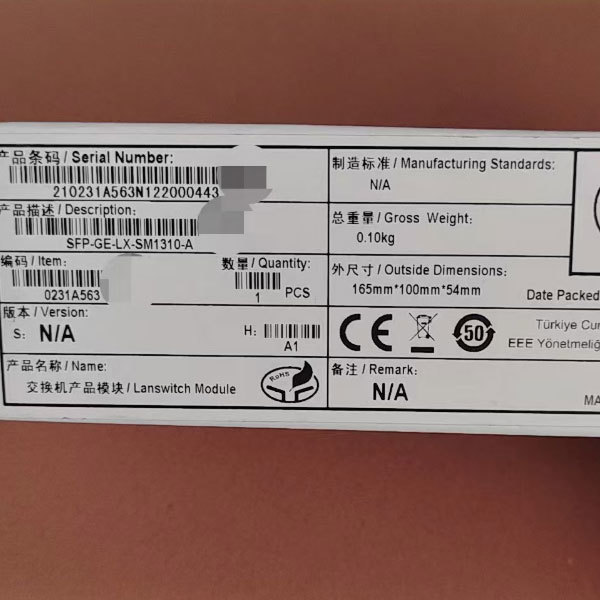

0231A563 rJ45 Huawei SFP-GE-LX-SM1310-A Optical Transceiver 1.25G-LX10 1000BASE-LX/LH
0231A563 rJ45 Huawei SFP-GE-LX-SM1310-A Optical Transceiver 1.25G-LX10 1000BASE-LX/LH
Specifications
Brand Name :
H3C
Model Number :
0231A563/ SFP-GE-LX-SM1310-A
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$9
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
200 pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Condition :
Genuine New
Warranty :
1 year limited warranty
Compliancestandards :
RoHS, MSA
Dimensions :
13.4 mm x 56.5 mm x 8.5 mm
Producttype :
Small Form-factor Pluggable (SFP) Transceiver
Hotswappable :
Yes
Operatingtemperature :
-5°C to 70°C
Transmissiondistance :
Up to 80 km (model dependent)
Connectortype :
LC
Powerconsumption :
≤ 1W
Datarate :
1 Gbps
Wavelength :
850 nm / 1310 nm / 1550 nm (depending on model)
Interface :
SFP
Protocolsupport :
Ethernet, Fibre Channel
Compatibility :
Huawei switches and routers
Productname :
Huawei SFP
Description
SFP-GE-LX-SM1310-A 1000BASE-LX SFP Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

SFP transceiver supports up to 10km link lengths over LC duplex SMF fiber. Each SFP transceiver module is individually tested to be used on a series of HW switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Specifications
Model Name
SFP-GE-LX-SM1310-A/ 231A563
Vendor Name
Huawei
Form Factor
SFP
Max. Data Rate
1.25Gbps
Wavelength
1310nm
Max. Cable Distance
10km@SMF
Connector
Duplex LC
Media
SMF
Transmitter Type
FP
Receiver Type
PIN
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
TX Power
-9.5 ~ -3dBm
Receiver Sensitivity
< -20dBm
Power Consumption
≤1W
Receiver Overload
-3dBm
Bit Error Ratio (BER)
1E-12
Extinction Ratio
>9dB
EMC (Electro Magnetic Compatibility)
Supported
MTBF (LX)
4,761,904 Hours
Protocols
IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Warranty
3 Years
