S5735I-S24T8S4XE-QA-V2 Original New Huawei 24 Ports Grade Industrial Switch
S5735I-S24T8S4XE-QA-V2 Original New Huawei 24 Ports Grade Industrial Switch
S5735I-S24T8S4XE-QA-V2 Original New Huawei 24 Ports Grade Industrial Switch
S5735I-S24T8S4XE-QA-V2 Original New Huawei 24 Ports Grade Industrial Switch
S5735I-S24T8S4XE-QA-V2 Original New Huawei 24 Ports Grade Industrial Switch
S5735I-S24T8S4XE-QA-V2 Original New Huawei 24 Ports Grade Industrial Switch
S5735I-S24T8S4XE-QA-V2 Original New Huawei 24 Ports Grade Industrial Switch
S5735I-S24T8S4XE-QA-V2 Original New Huawei 24 Ports Grade Industrial Switch
Specifications
Brand Name :
Huawei
Model Number :
S5735I-S24T8S4XE-QA-V2
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$569
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
300pcs
Delivery Time :
3 work days
Packaging Details :
Huawei Box
Dimensions :
43.6 mm x 442.0 mm x 335.0 mm
Weight :
5.457 kg
Storage temperature :
-40°C to +85°C
Long-term operating relative humidity :
5% RH to 95% RH, non-condensing
Memory :
2 GB
Flash memory :
1 GB
PoE :
Not supported
Part No. :
98012387
Description :
S5735I-S24T8S4XE-QA-V2 (24*10/100/1000BASE-T ports, 8*GE SFP ports, 4*10GE SFP+ ports, 2*12GE stack ports, Dual AC power, Fanless)
Condition :
Original New, In Stock
Description
S5735I-S24T8S4XE-QA-V2 Original New Huawei 24 Ports Grade Industrial Switch
Huawei CloudEngine S5735I-S-V2 series industrial switches (rack-mounted) are next-generation industrial switches that provide flexible all-gigabit access and GE/10GE uplinks. They stand out with an industrial-grade operating temperature range to withstand harsh outdoor cabinet environments. As such, they can be widely used in extended operating temperature range scenarios, such as smart manufacturing, smart mining, smart transportation, safe city, and electric power.
Quick Specification
Model S5735I-S24T8S4XE-QA-V2
Part Number 98012387
Description S5735I-S24T8S4XE-QA-V2 (24*10/100/1000BASE-T ports, 8*GE SFP ports, 4*10GE SFP+ ports, 2*12GE stack ports, Dual AC power, Fanless)
Dimensions with packaging (H x W x D) 145.0 mm x 660.0 mm x 550.0 mm (5.71 in. x 25.98 in. x 21.65 in.)
Weight with packaging [kg(lb)] 7.389 kg (16.29 lb)
Typical power consumption [W] 33.0 (30% traffic)
Maximum power consumption [W] 44.0 W
Memory 2 GB
Flash memory Physical space: 1 GB
PoE Not supported
Product Appearance

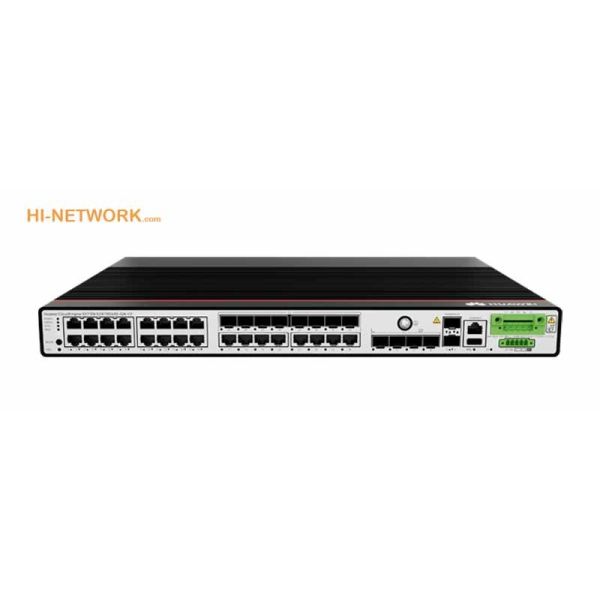

S5735I-S24T8S4XE-QA-V2 Original New Huawei 24 Ports Grade Industrial Switch
Figure 1: Front view of S5735I-S24T8S4XE-QA-V2
Product Structure Details

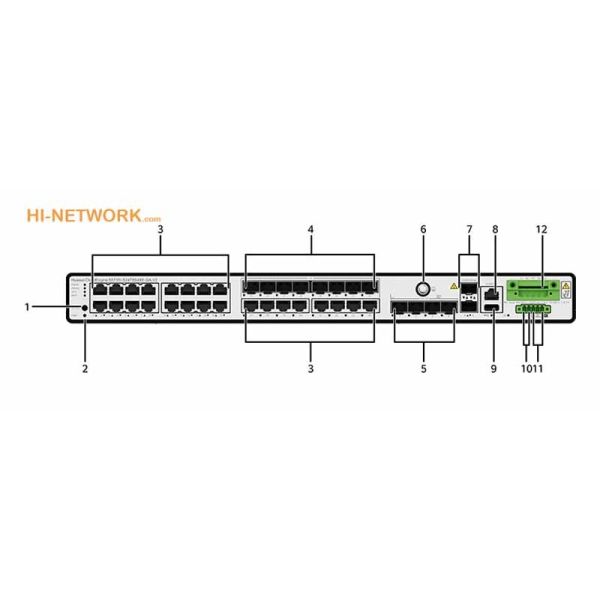

S5735I-S24T8S4XE-QA-V2 Original New Huawei 24 Ports Grade Industrial Switch
Figure 2: Structural diagram of S5735I-S24T8S4XE-QA-V2
Component Identification
(1) One MODE button
(2) One PNP button
(3) 24 x 10/100/1000BASE-T ports
(4) Eight 1000BASE-X ports
(5) Four 10GE SFP+ optical ports
(6) Ground screw
(7) Two stack ports
(8) One console port
(9) One USB port
(10) One DI port
(11) One DO port
(12) Dual AC power input port
