S5735I-H8T2XN-V2 Huawei Original Industry Grade Switch 8*10/100/1000BASE-T Ports , 2*10GE SFP+ Ports , DIN Rail Mounting DC Supply
S5735I-H8T2XN-V2 Huawei Original Industry Grade Switch 8*10/100/1000BASE-T Ports , 2*10GE SFP+ Ports , DIN Rail Mounting DC Supply
S5735I-H8T2XN-V2 Huawei Original Industry Grade Switch 8*10/100/1000BASE-T Ports , 2*10GE SFP+ Ports , DIN Rail Mounting DC Supply
S5735I-H8T2XN-V2 Huawei Original Industry Grade Switch 8*10/100/1000BASE-T Ports , 2*10GE SFP+ Ports , DIN Rail Mounting DC Supply
S5735I-H8T2XN-V2 Huawei Original Industry Grade Switch 8*10/100/1000BASE-T Ports , 2*10GE SFP+ Ports , DIN Rail Mounting DC Supply
S5735I-H8T2XN-V2 Huawei Original Industry Grade Switch 8*10/100/1000BASE-T Ports , 2*10GE SFP+ Ports , DIN Rail Mounting DC Supply
S5735I-H8T2XN-V2 Huawei Original Industry Grade Switch 8*10/100/1000BASE-T Ports , 2*10GE SFP+ Ports , DIN Rail Mounting DC Supply
S5735I-H8T2XN-V2 Huawei Original Industry Grade Switch 8*10/100/1000BASE-T Ports , 2*10GE SFP+ Ports , DIN Rail Mounting DC Supply
Specifications
Brand Name :
Huawei
Model Number :
S5735I-H8T2XN-V2
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
$662
Payment Terms :
T/T,Western Union
Supply Ability :
200 pcs
Delivery Time :
3 days
Packaging Details :
Huawei Box
Description :
S5735I-H8T2XN-V2 (8*10/100/1000BASE-T ports, 2*10GE SFP+ ports, DIN Rail Mounting, Dual redundant 9.6 to 60V DC supply, Fanless, 1588, Without power module)
Condition :
Huawei Original New
Description

S5735I-H8T2XN-V2 Huawei Original Industry Grade Switch 8*10/100/1000BASE-T ports, 2*10GE SFP+ ports, DIN Rail Mounting,DC supply


Overview

Table 4-1412 Basic information about the S5735I-H8T2XN-V2
Item Details
Description S5735I-H8T2XN-V2 (8*10/100/1000BASE-T ports, 2*10GE SFP+ ports, DIN Rail Mounting, Dual redundant 9.6 to 60V DC supply, Fanless, 1588, Without power module)
Part Number 98012687
Model S5735I-H8T2XN-V2
First supported version V600R024C10

Components

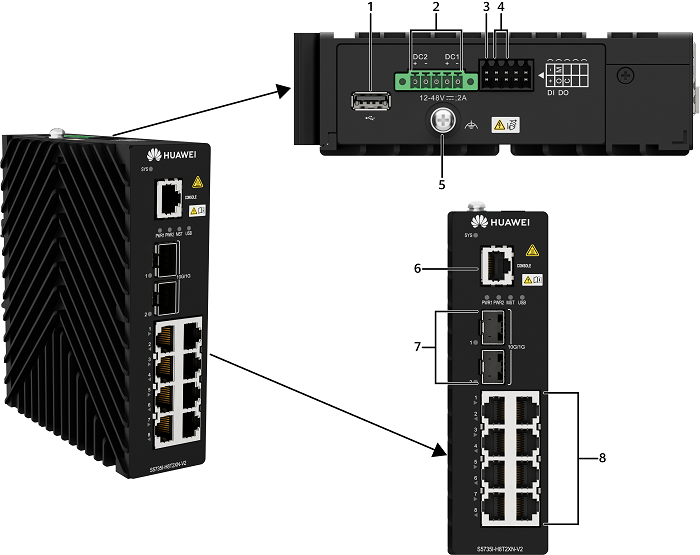

Figure 4-468 S5735I-H8T2XN-V2 appearance
S5735I-H8T2XN-V2 Huawei Original Industry Grade Switch 8*10/100/1000BASE-T Ports , 2*10GE SFP+ Ports , DIN Rail Mounting DC Supply

1

One USB port

2

Dual DC power input port

NOTE:

It must be used with 5-Pin DC Power Terminal, which are included in the auxiliary material package delivered with the device. It supports dual DC power supplies, , that is, DC1 and DC2.

One console port

3

One DI port

4

One DO port

5

Ground screw

NOTE:
It is used with a ground cable.

6

One console port

7

Two 10GE SFP+ ports

8

Eight 10/100/1000BASE-T ports


Table 4-1413 Ports on the S5735I-H8T2XN-V2

Port Connector Type Description Available Components
10/100/1000BASE-T port RJ45 A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s.

Ethernet cable
10GE SFP+ optical port SFP+ A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s.
  • Industrial optical modules
  • 0.5 m and 1.5 m SFP+ dedicated stack cables
  • GE SFP copper module
  • PEN remote optical modules (V600R024C10 and later versions)
Console port RJ45 The console port is connected to a console for on-site configuration.

Console cable
USB port USB 2.0 Type A

The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0.

USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor.

USB flash drive
DI port 2x5-Pin Phoenix Connector

The DI port is used to check active level signals.

Signal type: 9.6 V to 30 V for state 1; –30 V to +3 V for state 0

2x5-Pin Phoenix Connector
DO port 2x5-Pin Phoenix Connector

The DO port outputs signals so that the connected device can take corresponding actions.

Signal type: Passive DO signals, Boolean value (short circuit and open circuit)

External power supply: voltage less than 60 V DC and circuit current less than 0.5 A

2x5-Pin Phoenix Connector
