Specifications
Brand Name :
HAIYE
Model Number :
HYHJ-KC
Certification :
CE,FDA,ISO13485
Place of Origin :
Xi'an China Manufacturer
MOQ :
1set
Price :
900~1500USD/SET
Payment Terms :
T/T
Supply Ability :
1000SETS
Delivery Time :
5-8 work days
Packaging Details :
protective box + carton
Product name :
Handheld Video Laryngoscope
Resolution :
960 x 480
Display :
3.0 inch High Definition screen
Glottis Visualization :
Glottic Visualization
Depth of focus :
3~100mm
Roatate angle :
front to back: 135 º, left to right: 275 º
Powder Input :
100 - 240V 50/60Hz,0.35A
Powder Output :
5V,2000mA, USB output
Battery type :
lithium ion battery
Warranty :
1 year
OEM :
yes
Description

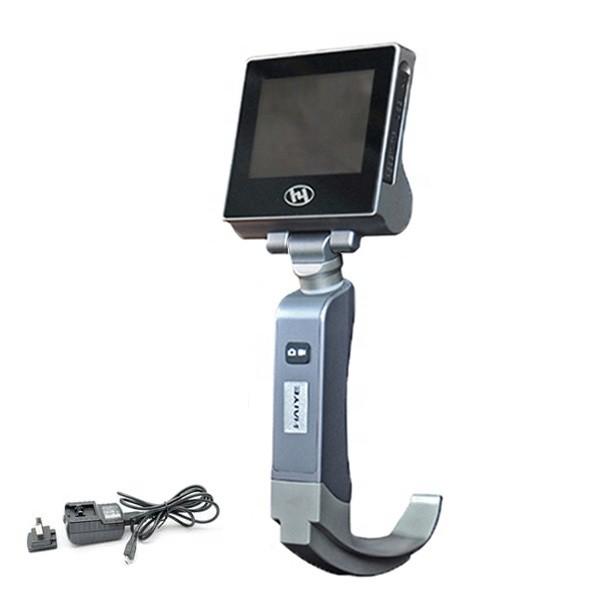

CMOS Intubation Endoscope Handheld Video Laryngoscope with 70º Hyperangulated Glottis Visualization

  • USB interface: charging and data transfer
  • Powder Button: On/Off and freeze frame
  • Photo button/Shutter: Short press-take photo, long press-vedio recording
  • Medical stainless steel: suitable for different ways of disinfection, reusable
  • Alloy handle: Ergonomic design, more comfortable grip
  • 2 million pixel screen and cmos double anti-fog carema system
  • Display module: 3’’ high definition display, image much clearer
  • metal alloy swing frame, can rotate large angle from left, right, front, and back

CMOS Intubation Handheld Video Laryngoscope With 70 Degree Hyperangulated Glottis Visualization

Product configuration of HYHJ-KC video laryngoscope:

In order to enhance the convenience of use, the display screen can be connected with any size of the handle, the product can be reused and one-time use (5 specifications: adult large, adult medium, child, newborn, premature).

Description of HYHJ-KC video laryngoscope:

The product HYHJ-KC video laryngoscope’s design fully takes into account the particularity of clinical use, HYHJ-KC video laryngoscope adopts a large number of medical grade metal materials and advanced processing technology; optimized and improved the structure design, imaging quality and convenience of use which perfectly combines the appearance and use together.

Product features of HYHJ-KC video laryngoscope:

HYHJ-KC video laryngoscope is simple and graceful, clear imaging, simple operation, complete specifications. Products with photography, freeze frame, video recording, HD output, data storage, large capacity export and other functions.HYHJ-KC video laryngoscope's large-capacity battery lasts longer, and the display can rotate from front to back, left to right.

CMOS Intubation Handheld Video Laryngoscope With 70 Degree Hyperangulated Glottis Visualization

Technical feature of HYHJ-KC video laryngosccope

Name Technical term Technical Index

Machine

 Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1600 x 1200
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Rotate angle front to back: 135 º, left to right: 275 º
laryngoscope blades 5 resuable blades suit for different oral structure

Powder Adapter

 Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

 Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins

Working Condition

 Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

Welcome to inquiry if you have any interests!

OEM order is acceptable.
