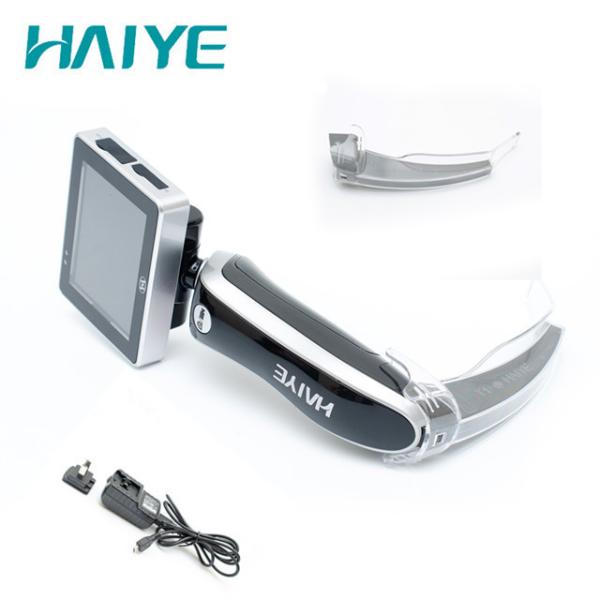

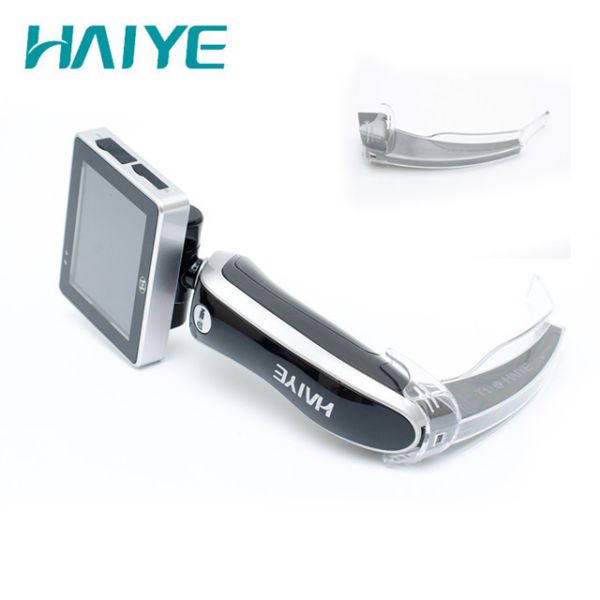

Double Anti Fog Optical Video Laryngoscope 3.0'' Display Led CMOS
Double Anti Fog Optical Video Laryngoscope 3.0'' Display Led CMOS
Double Anti Fog Optical Video Laryngoscope 3.0'' Display Led CMOS
Double Anti Fog Optical Video Laryngoscope 3.0'' Display Led CMOS
Double Anti Fog Optical Video Laryngoscope 3.0'' Display Led CMOS
Double Anti Fog Optical Video Laryngoscope 3.0'' Display Led CMOS
Double Anti Fog Optical Video Laryngoscope 3.0'' Display Led CMOS
Double Anti Fog Optical Video Laryngoscope 3.0'' Display Led CMOS
Specifications
Brand Name :
HAIYE MEDICAL
Model Number :
HYHJ-1330
Certification :
CE/FDA/ISO13485/ISO9001
Place of Origin :
Shaanxi China
MOQ :
1SET
Price :
500-800USD/SET
Payment Terms :
T/T
Supply Ability :
1000sets
Delivery Time :
5-8 work days
Packaging Details :
cartoon/protective box
Product name :
Led Video Laryngoscope
Display :
3 "TFT color screen
Resolution :
960*480
Carema :
CMOS, double anti fog
Charging time :
≤4h
Battery working time :
continous use ≥ 350 mins
Pixel :
2 million
Interface :
USB，TF(Hot plug)
Roatate angle :
front to back: 135 º, left to right: 275 º
OEM service :
Yes
OEM quantity :
50 units
Warranty :
1 Year
Description

Double Anti Fog Optical Video Laryngoscope 3.0'' Display Led CMOS

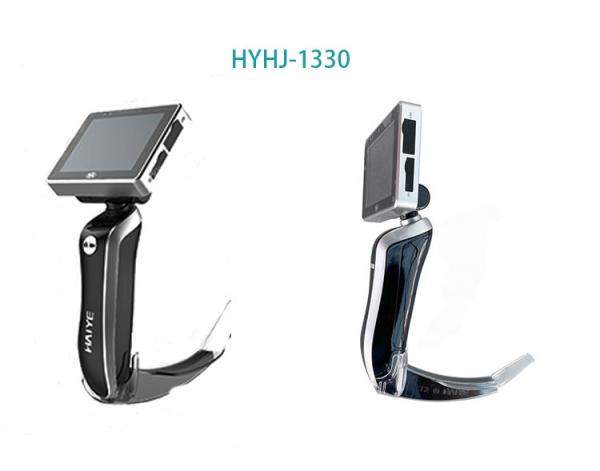

HYHJ-1330

The machine is novel in design, beautiful in appearance, small in portability, complete in function and simple in use,It is a functional, portable, practical, durable and highly configured medical visual laryngoscope. It is an ideal teaching material tool for the teaching of hospital first aid, clinical use and endotracheal intubation.

Application

It is often used to provoke the patient's epiglottis to expose the glottis, allowing the user to perform tracheal intubation under visual observation. Further optimization and improvement of the appearance and shape of the video laryngoscope will make the video laryngoscope more consistent with the structural characteristics of the upper respiratory tract (especially the difficult airway).

It is suitable for clinical tracheal intubation, simulation exercise, clinical teaching and difficult airway intubation in anesthesiology department, emergency department, ICU/ pediatric department, ambulance and other medical departments at all levels

Double Anti Fog Optical Video Laryngoscope 3.0'' Display Led CMOSDouble Anti Fog Optical Video Laryngoscope 3.0'' Display Led CMOS

Technical Index

Name Technical term Technical Index

Machine

 Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1280 x 720
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Rotate angle front to back: 135 º, left to right: 275 º
laryngoscope disposable blades, aseptic packaging for single use

Adapter

 Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

 Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continuesuse ≥ 350 mins

Working Condition

 Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

Haiye is designed to produce practical, durable and easy to use portable video laryngoscope, the whole machine adopts a unique streamlined integrated design, in line with the principles of ergonomics, to minimize the damage to the mouth and throat, most difficult airway intubation can provide an effective solution.

Welcome to inquiry if you have any interests!

OEM order is acceptable.
