CMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host key
CMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host key
CMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host key
CMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host key
CMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host key
CMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host key
CMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host key
CMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host key
Specifications
Brand Name :
HAIYE MEDICAL
Model Number :
HYHJ-1330
Certification :
CE/FDA/ISO13485/ISO9001
Place of Origin :
Shaanxi China
MOQ :
1SET
Price :
500-800USD/SET
Payment Terms :
T/T
Supply Ability :
1000sets
Delivery Time :
5-8 work days
Packaging Details :
cartoon/protective box
Product Name :
Intubation Video Endoscope Laryngoscope
Display :
3 "TFT color screen
Resolution :
960*480
Carema :
CMOS, double anti fog
Viewing angle :
70°± 2°
Depth of fields :
3~100mm
Charge time :
< 5 hours
Display Pixel :
2 million
illuminance :
≥3000lux
Roatate :
front to right：0º～135º；left to right：0º～275º
OEM service :
Yes, qty > 50 units
Host key :
Freeze frame, take photo and vedio
Warranty :
1 Year
Description

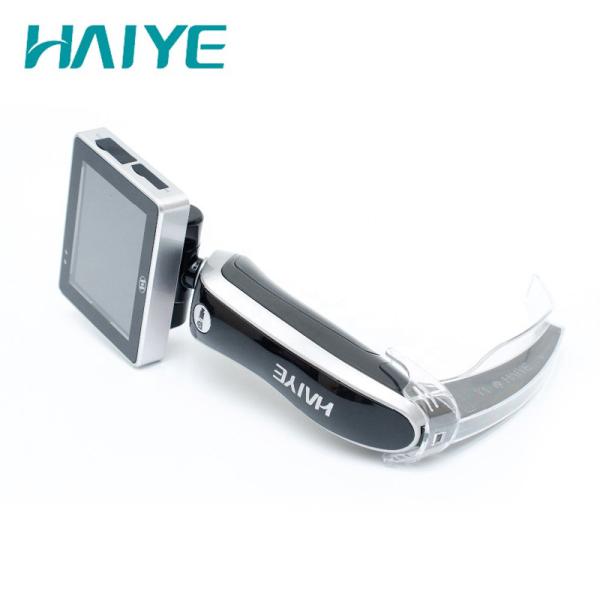

CMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host key

The HYHJ1330 features a rechargeable li-ion battery for extended use. A unique anti-fog capability is also provided. The overall design is compact and ergonomic. A high resolution view of the glottis will enable clinicians firstattempt success while minimizing any chance of complication during the intubation process.

  • Lightweight - unit is less than 350g
  • Vacuum packed disposable blades
  • Quick installation and removal of blades
  • Quick shot camera button for recording
  • Low cost disposable blades
  • 1 year warranty
  • Light weight long lasting rechargeable li-ion battery
  • 3.0inch display
  • CMOS camera with video capability
  • Anti-Fog lens technology

The HYHJ1330 features a rechargeable li-ion battery for extended use. A unique anti-fog capability is also provided. The overall design is compact and ergonomic. A high resolution view of the glottis will enable clinicians firstattempt success while minimizing any chance of complication during the intubation process.

CMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host keyCMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host key

CMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host key

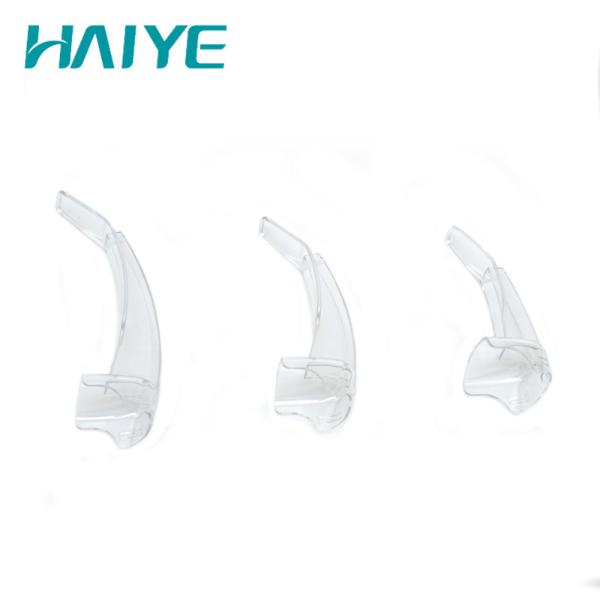

Disposable Aseptically Packaged Blades

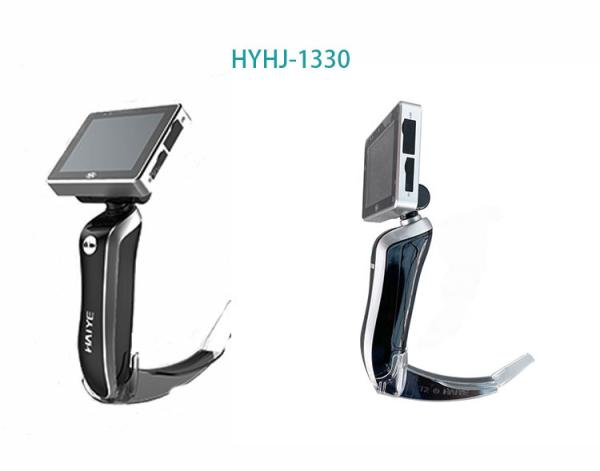

HYHJ-1330 Medical visual laryngoscope is a product that can be reused after being sterilized on the basis of HYHJ-1320 medical visual laryngoscope.

Camera system and display screen as a whole, no need to install;

Three kinds of camera systems are suitable for different sizes of mouth cavity, and disposable aseptically packaged laryngoscopes are used to reduce the risk of cross infection

CMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host key

Range of application:

• pre-hospital • emergency medicine • resuscitation

• anaesthesia • difficult airway • intensive care

Technical Feature:

Name Technical term Technical Index

Machine

 Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1280 x 720
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Rotate angle front to back: 135 º, left to right: 275 º
laryngoscope aseptic packaging for single use

Adapter

 Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

 Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins

Working Condition

 Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

CMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host keyCMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host key
