Specifications
Brand Name :
HAIYE MEDICAL
Model Number :
HYHJ-KC
Certification :
CE/FDA/ISO13485/ISO9001
Place of Origin :
Shaanxi China
MOQ :
5SET
Price :
1000USD/SET
Supply Ability :
1000sets
Delivery Time :
5-8days
Packaging Details :
cartoon
Payment Terms :
T/T
Material :
Stainless Steel
Display :
3 "TFT color screen
Blades :
reusable, different sizes
Carema :
CMOS, double anti fog
Viewing angle :
70°± 2°
Warranty :
1 Year
OEM service :
Yes, qty > 50 units
Product model :
HYHJ-KC
Description

5 Blades Neonate Pediatric Adult Video Laryngoscope for Diagnostic Surgery Equipments


Why Choose Vedio Laryngoscope?

1. Any doctors familar with tradional laryngoscope can smoothly use it;

2. Video laryngoscope showing the internal oral structure very clearly, easily capture the photo and vedio;

3. Video laryngoscope can keep distance between doctor and patient, greatly reduce the cross-infection possiblity;

4. Video laryngoscope significantly improved glottic exposure grade, nearly 99% of the patients can reach grade I-II, and the grade of glottic exposure can be reduced by at least I grade;

5. Video laryngoscope shorter the endotracheal intubation time, increase the success rate and also lower the esophageal intubation rate;

6. The forward view do not need three-axis line, the range of head and neck operation is small, Video laryngoscope is suitable for cervical spine injury cases;

7. Video laryngoscope Lighter operating force, less inquiry, and smoother hemodynamics.


HAIYE MEDICAL EQUIPMENT has been devoted to the R&D and production of products in the visual medical field, and has developed successively many kinds and full series of products, such as anesthesia laryngoscopes, video laryngoscopes, video rigid endoscopes, video flexible endoscopes, disposable uroscopes, disposable hysteroscopes.

Choose HAIYE, Choose Professional!

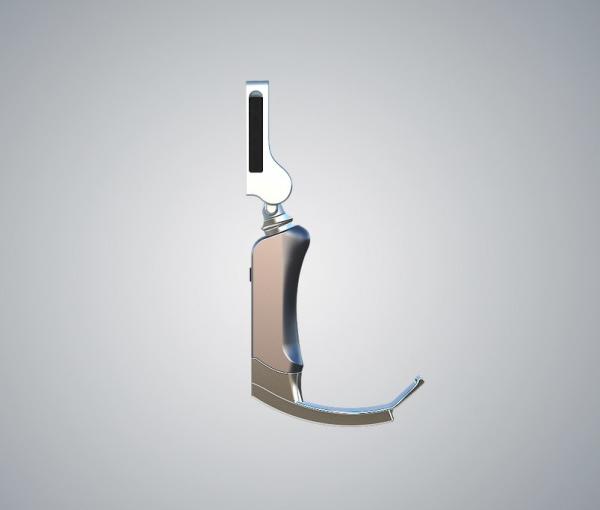

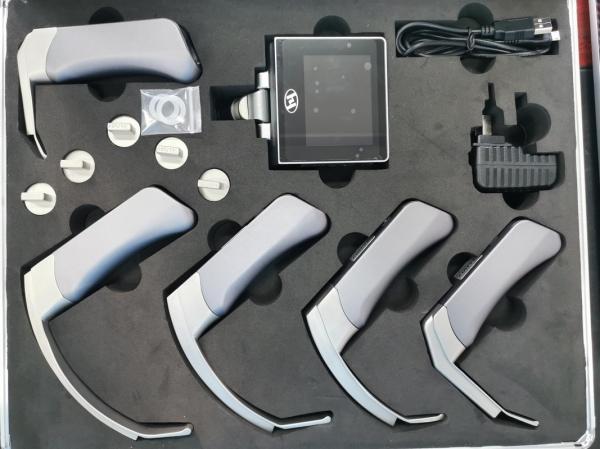

Hot Selling Product Display-HYHJ-KC

  • Powder Button: On/Off and freeze frame
  • Display module: 3’’ high definition display, image much clearer; metal alloy swing frame, can rotate large angle from left, right, front, and back
  • Alloy handle: Ergonomic design, more comfortable grip

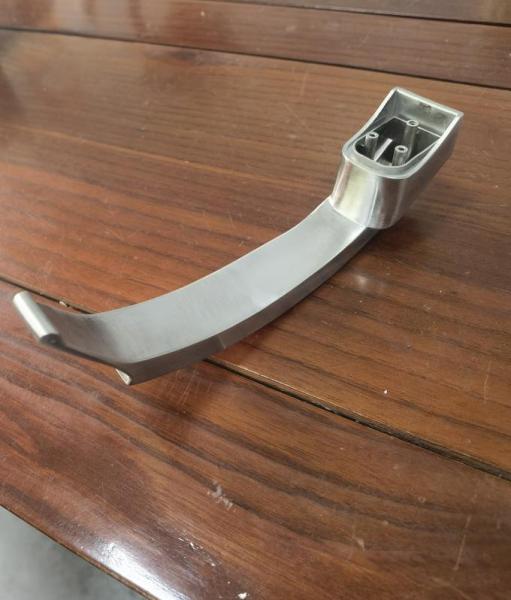

  • Medical stainless steel: suitable for different ways of disinfection, reusable
  • USB port: charging and data transfer
  • Photo button/Shutter: Short press-take photo, long press-vedio recording
  • 200 Million pixel double anti-fog carema style

HYHJ-KC Reusable Blades Vedio Laryngoscope With 3 HYHJ-KC Reusable Blades Vedio Laryngoscope With 3 HYHJ-KC Reusable Blades Vedio Laryngoscope With 3

Name Technical term Technical Index

Machine

Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1600 x 1200
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Rotate angle front to back: 135 º, left to right: 275 º
laryngoscope 5 reasuable blades suit for different oral structure

Powder Adapter

Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins

Working Condition

Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

Welcome to inquiry if you have any interests!

OEM order is acceptable.
