Endurance Endotracheal Intubation Video Laryngoscope Set 6 Hours Long Battery
Endurance Endotracheal Intubation Video Laryngoscope Set 6 Hours Long Battery
Endurance Endotracheal Intubation Video Laryngoscope Set 6 Hours Long Battery
Endurance Endotracheal Intubation Video Laryngoscope Set 6 Hours Long Battery
Endurance Endotracheal Intubation Video Laryngoscope Set 6 Hours Long Battery
Endurance Endotracheal Intubation Video Laryngoscope Set 6 Hours Long Battery
Endurance Endotracheal Intubation Video Laryngoscope Set 6 Hours Long Battery
Endurance Endotracheal Intubation Video Laryngoscope Set 6 Hours Long Battery
Specifications
Brand Name :
HAIYE MEDICAL
Model Number :
HYHJ-KC
Certification :
CE/FDA/ISO13485/ISO9001
Place of Origin :
XI'AN CHINA
MOQ :
1SET
Price :
900-1500USD/SET
Payment Terms :
T/T
Supply Ability :
5000sets
Delivery Time :
5-8 work days
Packaging Details :
cartoon/protective box
Product name :
Endotracheal Intubation Video Laryngoscope
Material :
316 medical Stainless Steel
Display :
3 "TFT color screen
Resolution :
960*480
Pixel :
2 million
Viewing angle :
70°± 2°
Depth of field :
3~100mm
Rotate angle :
front to back: 0~135°, left to right: 0~275°
Light source :
waterproof LED illumination：≥3000lux
Battery Cyclic charging :
＞800 times
Warranty :
1 Year
Battery Endurance :
6 hours Long
OEM service :
Yes, qty > 50 units
Description

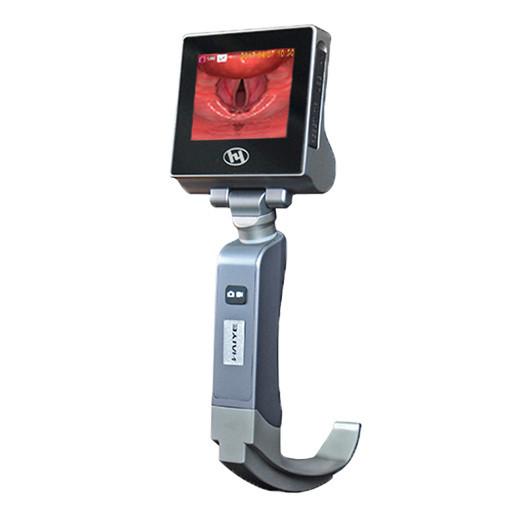

Endurance Endotracheal Intubation Video Laryngoscope Set 6 Hours Long Battery

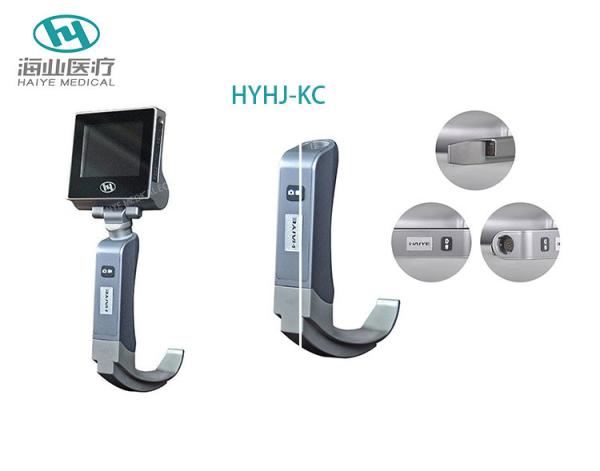

  • Powder Button: On/Off and freeze frame
  • Display module: 3’’ high definition display, image much clearer; metal alloy swing frame, can rotate large angle from left, right, front, and back
  • Alloy handle: Ergonomic design, more comfortable grip
  • Medical stainless steel: suitable for different ways of disinfection, reusable
  • USB port: charging and data transfer
  • Photo button/Shutter: Short press-take photo, long press-vedio recording
  • 200 million pixel double anti-fog carema system

Technical parameter

Name Technical term Technical Index

Machine

 Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1600 x 1200
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Rotate angle front to back: 135 º, left to right: 275 º
laryngoscope Suit for different oral structure, aseptic packaging for single use

Power Adapter

 Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

 Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins

Working Condition

 Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

Endurance Endotracheal Intubation Video Laryngoscope Set 6 Hours Long BatteryEndurance Endotracheal Intubation Video Laryngoscope Set 6 Hours Long BatteryEndurance Endotracheal Intubation Video Laryngoscope Set 6 Hours Long Battery

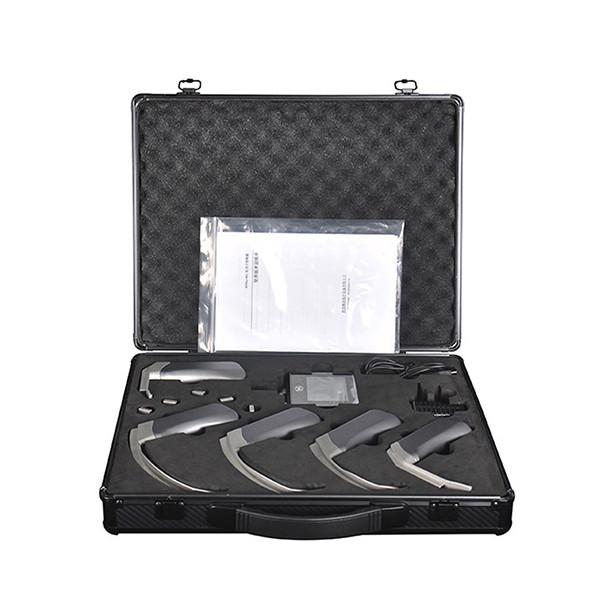

5 KC Resuable Blades

Specification & Dimension
Tip Size(mm) L H W Max W Min W
1 Mac4:Large Adult 153 54.5 29.23 22.41 14.37
2 Mac3:Medium Adult 140 49 29.23 21.37 14.46
3 Mac2:Small Adult & Large Child 122 34 29.23 21.4 13.56
4 Miller1:Medium Child 77.4 22.74 18.55 14.5 10.34
5 Miller0:Small Child & Infant 59.9 17.46 18.55 14.7 10.6

Application

  • Conventional and challenging tracheal intubation procedures
  • Used in clinical anesthesia, emergency and ICU treatment
  • Tracheal intubation procedures in various clinical departments
  • Clinical teaching of tracheal intubation

Endurance Endotracheal Intubation Video Laryngoscope Set 6 Hours Long Battery

XI'AN HAIYE has been devoted to the R&D and production of products in the visual medical field since its founding, and has developed successively many kinds and full series of products, such as anesthesia laryngoscopes, video laryngoscopes, video rigid endoscopes, video flexible endoscopes, disposable uroscopes, disposable hysteroscopes.

Endurance Endotracheal Intubation Video Laryngoscope Set 6 Hours Long Battery

Welcome to inquiry if you have any interests!

OEM order is acceptable.
