Specifications
Brand Name :
HAIYE MEDICAL
Model Number :
HYHJ-KC
Certification :
CE/FDA/ISO13485/ISO9001
Place of Origin :
Shaanxi China
MOQ :
5SET
Price :
900-1500USD/SET
Payment Terms :
T/T
Supply Ability :
1000sets
Delivery Time :
5-8 work days
Packaging Details :
cartoon/protective box
Material :
Stainless Steel
Display :
3 "TFT color screen
Resolution :
960*480
Field angle :
70±2º
LED light illuminance :
≥3000lux
working temperature :
5℃~40℃
roatate :
front to right:0º~135º;left to right:0º~275º
Blades :
reusable
Description

Intubation Devices Resolution 960*480 HD 5 Blades Reusable Video Laryngoscope

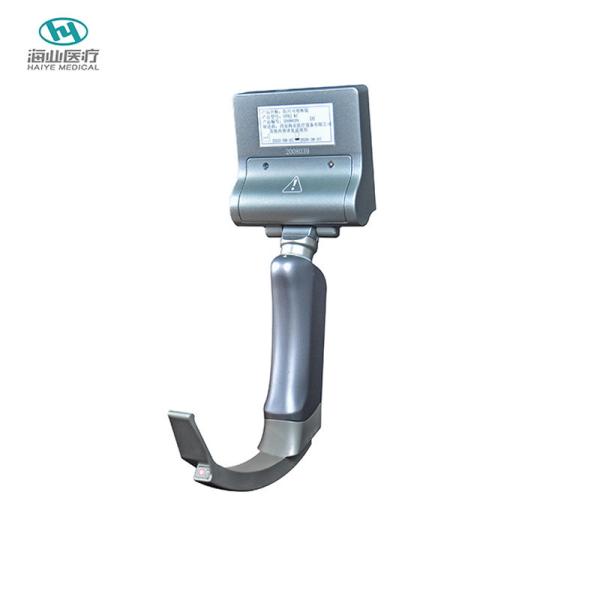

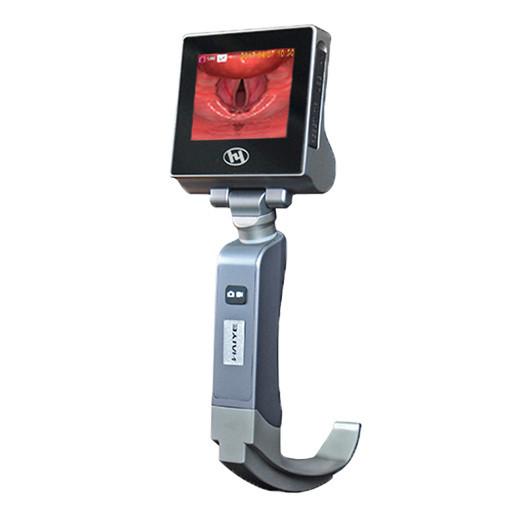

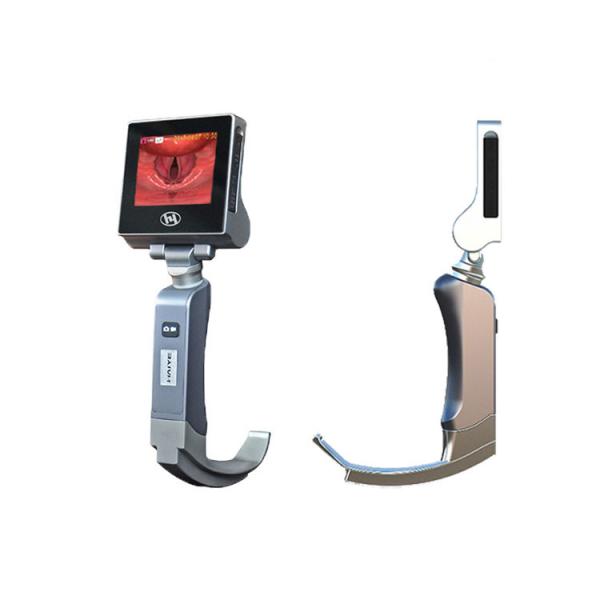

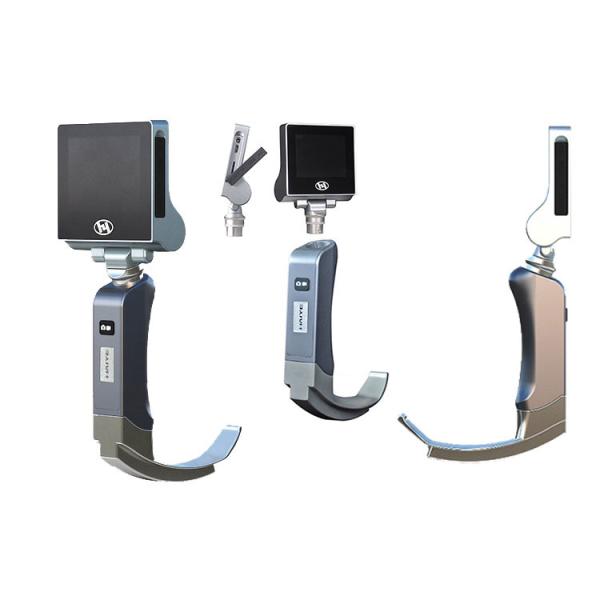

Video Laryngoscope HYHJ-KC

  • Powder Button: On/Off and freeze frame
  • Display module: 3’’ high definition display, image much clearer; metal alloy swing frame, can rotate large angle from left, right, front, and back
  • Alloy handle: Ergonomic design, more comfortable grip
  • Medical stainless steel: suitable for different ways of disinfection, reusable
  • USB port: charging and data transfer
  • Photo button/Shutter: Short press-take photo, long press-vedio recording
  • 200 million pixel double anti-fog carema system

Technical parameters of video laryngoscope

resolution 960×480 pixel 2million
effective depth of field 3~100mm field angle 70±2º
stand-by time ≥6h Charing time ≤4h
battery life recharge>800次 display

3"TFT color display

rotate front to right:0º~135º;left to right:0º~275º

LED light

illuminance:

≥3000lux

Working condition

temperature 5℃~40℃ humidity ≤80%
atmospheric pressure: 860hpa~1060hpa Charger output 5V,2000mA
Charger input 100~240V,50/60Hz,0.35A



HD 5 Blades Reusable Video Laryngoscope 960X480 Intubation Devices Resolution
Description of Products:
The product HYHJ-KC’s design fully takes into account the particularity of clinical use, It adopts a large number of medical grade metal materials and advanced processing technology; optimized and improved the structure design, imaging quality and convenience of use which perfectly combines the appearance and use together.

Product features:
simple and graceful, clear imaging, simple operation, complete specifications. Products with photography, freeze frame, video recording, HD output, data storage, large capacity export and other functions. The large-capacity battery lasts longer, and the display can rotate from front to back, left to right.

Product configuration:
In order to enhance the convenience of use, the display screen can be connected with any size of the handle, the product can be reused and one-time use (5 specifications: adult large, adult medium, child, newborn, premature).
HD 5 Blades Reusable Video Laryngoscope 960X480 Intubation Devices ResolutionHD 5 Blades Reusable Video Laryngoscope 960X480 Intubation Devices Resolution


Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are wiedly used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: U.S., Middle East, Australia, Korea, Russia, Pakistan....


Welcome to inquiry if you have any interests!
OEM order is acceptable.
