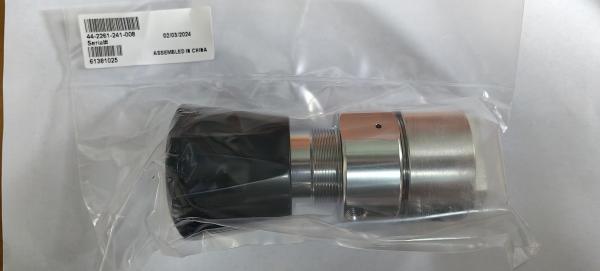

Precision Single Stage Regulator High Purity Gas Control TESCOM 44-2200 Series
Precision Single Stage Regulator High Purity Gas Control TESCOM 44-2200 Series
Precision Single Stage Regulator High Purity Gas Control TESCOM 44-2200 Series
Precision Single Stage Regulator High Purity Gas Control TESCOM 44-2200 Series
Precision Single Stage Regulator High Purity Gas Control TESCOM 44-2200 Series
Precision Single Stage Regulator High Purity Gas Control TESCOM 44-2200 Series
Precision Single Stage Regulator High Purity Gas Control TESCOM 44-2200 Series
Precision Single Stage Regulator High Purity Gas Control TESCOM 44-2200 Series
Precision Single Stage Regulator High Purity Gas Control TESCOM 44-2200 Series
Precision Single Stage Regulator High Purity Gas Control TESCOM 44-2200 Series
Specifications
Brand Name :
TESCOM
Model Number :
44-6800 Series
Place of Origin :
china
MOQ :
1
Price :
$130
Payment Terms :
T/T, T/T
Supply Ability :
>100
Description

Product Description:

The TESCOM 44-2200 series single-stage regulator sets a benchmark for precision and safety in handling specialty, flammable, and industrial gases with flows up to 5 SCFM/141 SLPM. Its compact, lightweight design and high-purity construction make it ideal for critical applications requiring gas integrity and reliable pressure regulation.

Key Features:

  • Ultra-High Purity: Diffusion-proof metal valve film technology prevents contamination, ensuring gas purity for sensitive processes like chromatograph flame detector fuel supply and analytical instrument calibration.
  • Single-Stage Efficiency: Streamlined design reduces pressure in one step, minimizing energy loss while maintaining stability.
  • Safety-Centric: Compliant with USP Class VI and BPE standards, it handles hazardous gases (e.g., H₂, NH₃) with static-dissipative features to reduce ignition risks.
  • Durable Construction: 316 stainless steel body and Viton®/PCTFE seals resist corrosion in aggressive environments.

Technical Advantages:

  • Pressure Handling: Inlet up to 300 bar (4350 psig), outlet adjustable to 10.3 bar (150 psig).
  • Leakage Resistance: UL-rated low leakage (<10⁻⁷ mbar·L/s helium) for costly or dangerous gases.
  • Temperature Range: -40°C to 71°C (-40°F to 160°F) with Teflon PFA seats.

Applications:

  • Laboratories: Gas chromatography, mass spectrometry, and zero/span calibration.
  • Industrial: Point-of-use gas systems, sampling systems, and analyzer gas supply.
  • Energy & Medical: Hydrogen fuel cells, medical device sterilization, and CO₂ incubators.

Why Choose 44-2200?

  • Space-Saving: Lightweight (3.5 lb/1.6 kg) and compact for benchtop or inline installations.
  • Versatility: Supports inert, corrosive, and pyrophoric gases with customizable configurations.
  • Ease of Use: Quick-connect fittings and tool-free maintenance reduce downtime.
Technical Specifications Table:

Parameter Value
Bearing Capacity - Inlet Pressure: 400 psig/27.6 bar or 3500 psig/241 bar
- Outlet Pressure Range: 0–500 psig/0–34.5 bar
Durable & Reliable Material - Valve Body: 316L stainless steel, brass, Hastelloy®, or Monel®
- Valve Seat: Teflon®
- Valve Cover: 300 series stainless steel or brass
- Diaphragm: 316 stainless steel, Elgiloy®
Precise Flow Control - 3500 psig/241 bar inlet: Cv = 0.06
- 400 psig/27.6 bar inlet: Cv = 0.15
Compact Design for Easy Installation - Port Size & Type: 1/4" NPTF
- Weight (without pressure gauge): 0.9 kg/2.0 lb
Wide Operating Temperature Range -40°C to 74°C (-40°F to 165°F)
