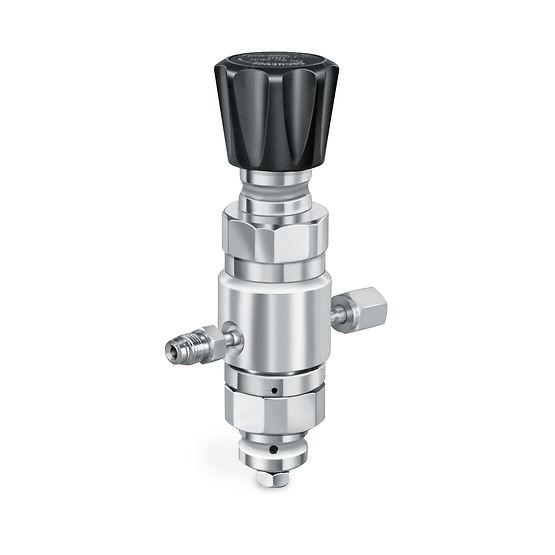

Two Stage Ultra High Purity Pressure Relief Regulator TESCOM 64-3400 Series Corrosion Resistant
Two Stage Ultra High Purity Pressure Relief Regulator TESCOM 64-3400 Series Corrosion Resistant
Specifications
Brand Name :
TESCOM
Model Number :
64-3600 series
Place of Origin :
china
MOQ :
1
Price :
$130
Payment Terms :
T/T, T/T
Supply Ability :
>100
Certifications :
CE, ATEX, CRN, PED, ISO 9001
Material :
Stainless Steel
Inlet Connection :
Various options available
Max Operating Temperature :
200°F
Application :
Industrial gas control
Outlet Connection :
Various options available
Type :
Single Stage
Min Operating Temperature :
32°F
Size :
Various sizes available
Pressure Range :
0-6000 psig
Flow Capacity :
Up to 1000 SCFM
Media :
Gas
Description

TESCOM 64-3400 Series Two-Stage Ultra-High Purity Pressure Relief Regulator: Precision And Purity In Pressure Control

Product introduction:

The TESCOM 64-3400 series two-stage pressure relief regulator is a top-tier solution for achieving pure and stable pressure control. Its distinctive binding valve membrane design offers precision, durability, and reliability for your systems.

Key Features:

  • Ultra-High Purity: With a surface finish of 10Ra microinch / 0.25 micron, it minimizes gas friction and contamination, ensuring the output gas remains ultra-pure.
  • High-Pressure Handling: Capable of handling inlet pressures up to 3500 psig/241 bar and adjusting the outlet pressure to 150 psig/10.3 bar, making it suitable for applications like cylinder cabinets, semiconductor manufacturing, and research labs.
  • Durable Design: The unique membrane design enhances system longevity and performance stability.
  • Corrosion Resistance: The optional Hastelloy valve interior provides excellent resistance to corrosive gases, extending the regulator's lifespan.

Technical Specifications:

  • Inlet Pressure: Up to 3500 psig/241 bar
  • Outlet Pressure: Adjustable to 150 psig/10.3 bar
  • Surface Finish: 10Ra microinch / 0.25 micron

Applications:

  • Cylinder cabinet gas management
  • Semiconductor manufacturing processes
  • Research laboratory gas control

Specifications

Parameter Value
Rated Pressure Inlet pressure up to 3500 psig/241 bar
Outlet Pressure Range 30 psig/2.1 bar, 60 psig/4.1 bar, 100 psig/6.9 bar, 150 psig/10.3 bar
Body Material Electrolytically polished 316L stainless steel or 316L VAR stainless steel
Diaphragm 316L stainless steel
Seat Polytrifluorochloroethylene (PCTFE) or Teflon PFA
Valve Spring 316 stainless steel
Stem and Other Parts 316 stainless steel (Hastelloy optional)
Operating Temperature - Teflon PFA seat: -40°F ~ 160°F (-40°C ~ 71°C)
- PCTFE seat: -40°F ~ 140°F (-40°C ~ 60°C)
Port Size and Type - 1/4 H.P.I.C.
- 1/4, 1/2
- External thread rotation, fixed external thread, internal thread rotation
- 1/4 pipe fitting
Flow Capacity See part number selector
Weight 3.0 lb/1.4 kg

64-3400 series TESCOM two-stage voltage regulator flow coefficient

Two Stage Ultra High Purity Pressure Relief Regulator TESCOM 64-3400 Series Corrosion Resistant

64-3400 series TESCOM two-stage voltage regulatorTwo Stage Ultra High Purity Pressure Relief Regulator TESCOM 64-3400 Series Corrosion Resistant
