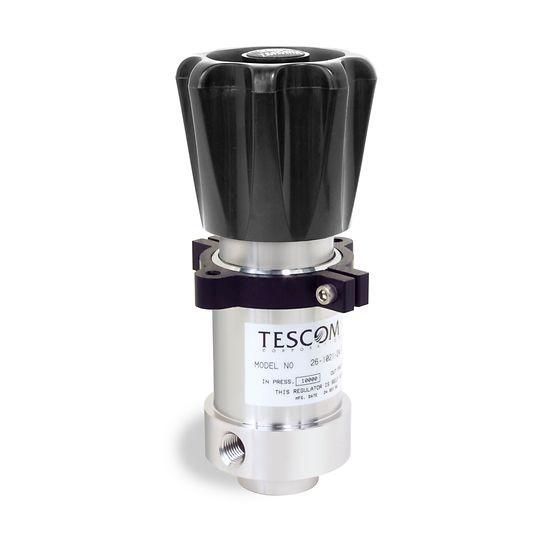

TESCOM 26-1000 Series High-Pressure Regulator: Precision Control For Industrial And Test Applications
TESCOM 26-1000 Series High-Pressure Regulator: Precision Control For Industrial And Test Applications
Specifications
Brand Name :
TESCOM
Model Number :
44-6800 Series
Place of Origin :
china
MOQ :
1
Price :
$130
Payment Terms :
T/T, T/T
Supply Ability :
>100
Certifications :
CE, ATEX, PED, CRN
Flow Capacity :
Up to 50,000 scfm
Material :
Stainless Steel
Additional Options :
Relief valves, gauges, filters, and more
Connection Type :
NPT, BSPT, BSPP, SAE, ISO
Special Features :
High accuracy, low droop, and low hysteresis
Pressure Range :
Up to 10,000 psi
Temperature Range :
Up to 450°F (232°C)
Application :
Gas and liquid control
Media Compatibility :
Wide range of gases and liquids
Size :
Various sizes available
Mounting Options :
Panel, pipe, or bracket mount
Description

Product Description:

The TESCOM 26-1000 series pressure regulator is engineered to handle extreme pressures up to 10,000 psig (690 bar), delivering reliable performance in high-stakes industrial environments. Its standard self-discharge function ensures safe and efficient pressure reduction, while interchangeable springs and pressure-sensing elements provide unmatched versatility for diverse applications.

Key Features:

  • High-Pressure Handling: Rated for inlet pressures up to 10,000 psig, ideal for critical applications like hydraulic testing and gas cylinder management.
  • Self-Discharge Technology: Automatically vents excess pressure to maintain stable outlet levels, enhancing safety and system longevity.
  • Interchangeable Components: Customizable springs and sensors adapt to varying pressure ranges (e.g., 0–150 psig to 0–5,000 psig), ensuring flexibility for R&D and production needs.
  • Low-Torque Handle: Ergonomic design allows effortless adjustments without compromising precision.

Technical Advantages:

  • Materials: Constructed with corrosion-resistant 316 stainless steel for durability in aggressive media.
  • Temperature Range: Operates from -40°C to 74°C (-40°F to 165°F) for versatile environmental compatibility.
  • Leakage Resistance: UL-rated low leakage (<10⁻⁷ mbar·L/s helium) for hazardous gas handling.

Applications:

  • Test Equipment: Hydraulic/pneumatic testing in aerospace and automotive industries.
  • Calibration Stations: Precise pressure regulation for metrology and sensor validation.
  • Production Lines: Stable gas/fluid supply in semiconductor manufacturing and chemical processing.

Why Choose 26-1000?

  • Reliability: Proven performance in high-pressure, high-stress scenarios.
  • Ease of Use: Tool-free adjustments and modular design simplify maintenance.
  • Safety: Compliant with ISO 13485 and ASME BPVC standards for critical industries.

Attributes:

Parameter Value
Pressure Bearing Capacity - Stainless steel: Up to 10,000 psig/690 bar
- Brass: Up to 6,000 psig/415 bar
Flexible Outlet Pressure Range - 5–500 psig (0.3–34.5 bar), 5–800 psig (0.3–55.2 bar), 10–1,500 psig (0.7–103 bar)
High-Quality Material Construction - Valve Body: 316 stainless steel or brass
- Valve Seat: Vespel®
- Discharge Valve Seat: CTFE
- Valve Cover: 300 series stainless steel
- Support Ring: Teflon®
- Internal Components: 300 series stainless steel
Sophisticated Filtration System - 40-micron filter in 300 series stainless steel or bronze
Diversified Port Configurations - Sizes: 1/4"–3/8" (NPTF)
- Types: SAE, NPTF, MS33649
Wide Operating Temperature Range -40°C to 74°C (-40°F to 165°F)
Adjustable Flow Capacity - Standard: Cv = 0.06
- Optional: Cv = 0.02, 0.12, 0.30
Flexible Load Types - Air ratio, air chamber load, deviation, wrench adjustment
Lightweight Design - Stainless steel: 5.5 lb/2.5 kg (without pressure gauge)
- Brass: 5.7 lb/2.6 kg (without pressure gauge)


26-1000 series TESCOM pressure reducing valve selection reference
