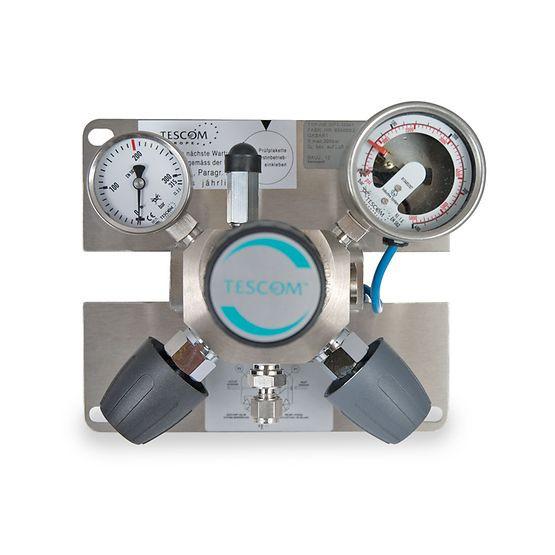

TESCOM Compact Panel Regulators Precision Gas Control For Laboratories And Industrial
TESCOM Compact Panel Regulators Precision Gas Control For Laboratories And Industrial
Specifications
Brand Name :
TESCOM
Model Number :
TESCOM Compact Panel
Place of Origin :
china
MOQ :
1
Price :
$130
Payment Terms :
T/T, T/T
Supply Ability :
>100
Description
Product Description:

TESCOM compact panel regulators are essential for ensuring stable, continuous gas supply in both laboratory and industrial settings, delivering reliable performance that supports critical experiments and high-precision manufacturing.

Key Features:

  • Precision Pressure Control: Engineered for analytical gases, these regulators offer fine-tuned adjustments to meet exact pressure requirements, ensuring experiment reproducibility and process consistency.
  • Space-Saving Design: Compact, modular layouts fit seamlessly into benchtop or panel-mounted systems, ideal for lab environments with limited space.
  • Durable Construction: Constructed with 316 stainless steel and Viton®/PCTFE seals, they resist corrosion from aggressive gases while maintaining purity.
  • Safety & Compliance: Meets USP Class VI, BPE, and ISO 17025 standards for biopharmaceutical, semiconductor, and quality-controlled applications.

Technical Advantages:

  • Pressure Range: Handles inlet pressures up to 300 bar (4350 psig) with adjustable outlet ranges (e.g., 0–10 bar/0–145 psig).
  • Leakage Resistance: UL-rated low leakage (<10⁻⁷ mbar·L/s helium) for hazardous or costly gases.
  • Flow Capacity: Cv values optimized for high-purity applications (e.g., Cv = 0.06 for nitrogen-based systems).

Applications:

  • Laboratories: Gas chromatography, mass spectrometry, and cell culture incubators.
  • Industrial: Semiconductor wafer fabrication, medical device sterilization, and laser cutting.
  • Energy: Hydrogen fuel cell testing and CO₂ capture systems.

Why Choose TESCOM Compact Panel Regulators?

  • Reliability: Minimizes pressure fluctuations to safeguard sensitive equipment.
  • Ease of Use: Intuitive controls and quick installation reduce downtime.
  • Versatility: Supports non-corrosive/corrosive gases (e.g., O₂, H₂, NH₃) with customizable configurations.
Technical Specifications Table:

Parameter Value
Fluid Medium Purity Up to 6.0 (99.9999% v/v) for non-corrosive/corrosive gases/gas mixtures
Pressure Rating - Inlet Pressure: 4350 psig / 300 bar
- Outlet Pressure Ranges:
- 0–145 psig / 0–10 bar
- 0–290 psig / 0–20 bar
Leakage Rate 10⁻⁷ mbar·L/s (helium)
Material - Body: 316 stainless steel or nickel-plated brass
- Valve Film: 316L stainless steel
Operating Temperature -20°C to 70°C / -4°F to 158°F
Standard Flow Rate 10 m³/h (nitrogen-based), Cv = 0.06
Cleanliness Standard Clean, oxygen-service compatible
Inlet Type & Size - G 3/8 internal thread connection
- 6 mm sleeve interface
Outlet Type & Size - Process Outlet: G 1/4
- Purge Gas Outlet: G 1/4
- Pressure Relief Valve Outlet: M 12×1
Weight - 2 cylinders: 17.6 lb / 7.9 kg
- 1 cylinder: 8.1 lb / 3.7 kg
