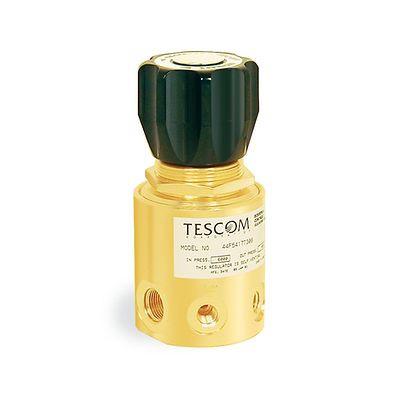

TESCOM Low Pressure Regulator 44-1500 Series Designed For High Flow And Low Outlet Pressure, Easily Handle 600 Psig / 41 . Designed For A Wide Range Of Hydraulic And Pneumatic Testing Applications.
TESCOM Low Pressure Regulator 44-1500 Series Designed For High Flow And Low Outlet Pressure, Easily Handle 600 Psig / 41 . Designed For A Wide Range Of Hydraulic And Pneumatic Testing Applications.
Specifications
Brand Name :
TESCOM
Model Number :
44-1500 Series
Place of Origin :
china
MOQ :
1
Price :
$130
Payment Terms :
T/T, T/T
Supply Ability :
>100
Description
Product Description:
The TESCOM 44-1500 series low-pressure regulators are engineered to deliver reliable, high-flow performance with precise outlet pressure control, even in challenging duty cycles. Designed for applications requiring 600 psig / 41 bar outlet pressure, these regulators excel in hydraulic and pneumatic systems where accuracy and durability are critical.

Key Features & Advantages:

  • Large-Area Piston Technology: Outperforms diaphragm regulators with superior pressure stability and extended service life under heavy cycling.
  • Dual Outlet Spring Ranges: Flexible pressure adjustment (10–200 psig / 0.7–14 bar or 10–400 psig / 0.7–28 bar) for versatile system integration.
  • Independent Discharge Valve: Enables safe, controlled venting of hydraulic/pneumatic media.
  • Remote Control Compatibility: Optional air chamber or air load accessories support integration with ER5000 electro-pneumatic controllers for automated processes.

Technical Specifications:

  • Inlet Pressure: Up to 6000 psig / 414 bar
  • Circulation Efficiency: Cv = 0.3 for optimized flow
  • Materials: 316 stainless steel/brass body, bronze filter layer, and PEEK/Polyimide (Vespel®) seats for corrosion resistance.
  • Seals: Nitrile, FKM (Viton®-A), FFKM (Kalrez®), and E.P. options for compatibility with aggressive fluids.
  • Temperature Range: Compliant with strict material-specific limits (detailed in datasheet).

Applications:

  • Hydraulic/pneumatic testing and calibration
  • Industrial machinery and automation
  • Aerospace and automotive component testing
  • Oil & gas exploration and production

Core Parameter Summary Table:

Parameter Value
Inlet Pressure 6000 psig / 414 bar
Export Pressure Control Zone - Spring Type: 10-200, 10-400 psig / 0.7-14, 0.7-28 bar
Air Chamber/Air Drive 0-600 psig / 0-41 bar
Pressure Design Limit 150% redundancy of rated upper limit
Sealing Performance Air-tight, no leakage
Operating Temperature Environment - Medium: Material-specific temperature compliance (detailed in table)
- External: Refer to Schedule notes
Circulation Efficiency Cv value = 0.3
Maximum Torque Limit 25 inch-pounds / 2.8 N·m
Media Contact Materials - Body: 316 stainless steel/brass preferred
- Filter Layer: Bronze (40 microns)
- Main Seat: Polyimide (Vespel® SP21), PEEK double protection
- Discharge Seat: Same as main seat
- O-ring: Nitrile, FKM (Viton®-A), FFKM (Kalrez®), E.P. options
- Support Ring: PTFE
- Other Components: 300 series SS, brass, nickel alloys (Monel®)
Additional Features - Cleanliness: CGA 4.1, ASTM G93 compliant
