TESCOM 20-1000 Series Gas Pressure Regulator CNG Solutions For Heavy Duty Vehicles
TESCOM 20-1000 Series Gas Pressure Regulator CNG Solutions For Heavy Duty Vehicles
Specifications
Brand Name :
TESCOM
Model Number :
20-1000 Series
Place of Origin :
china
MOQ :
1
Price :
$130
Payment Terms :
T/T, T/T
Supply Ability :
>100
Body Style :
inline
Certifications :
CE, CRN, FM, UL, CSA
Diaphragm Material :
316 stainless steel
Material :
stainless steel
Inlet Pressure Range :
up to 6000 psig
Temperature Range :
-40°F to 500°F
Connection Type :
female NPT
Flow Capacity :
up to 1000 SCFM
Seat Material :
stainless steel
Application :
pressure reducing
Port Size :
1/4
Model :
26-1700
Outlet Pressure Range :
0-500 psig
Features :
built-in filter, adjustable knob, panel mounting option
Description

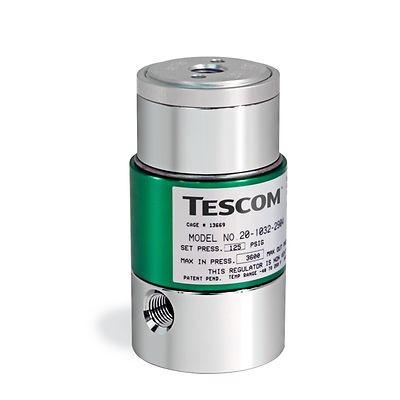

TESCOM 20-1000 Series Gas Pressure Regulator: Lightweight, Reliable CNG Solutions For Heavy-Duty Vehicles

Product Description:

The TESCOM 20-1000 series pressure regulator is engineered specifically for on-board compressed natural gas (CNG) systems in heavy-duty vehicles with displacements of 7 liters or more. Constructed with lightweight aluminum, it delivers durability without compromising performance, making it ideal for high-demand CNG-powered fleets.

Key Features:

  • Piston Induction Mechanism: Ensures precise pressure regulation and extends service life by minimizing wear in high-flow environments.
  • Integrated Heat Exchanger Anti-Freezing: Prevents ice formation during rapid decompression, maintaining consistent operation in extreme temperatures.
  • CNG-Specific Design: Optimized for CNG storage and delivery systems, supporting safe and efficient fuel management.
  • Lightweight Construction: Aluminum body reduces vehicle weight while offering corrosion resistance for long-term reliability.

Technical Advantages:

  • Pressure Handling: Inlet up to 3,600 psig (248 bar), outlet adjustable to 200–500 psig (13.8–34.5 bar).
  • Flow Capacity: High Cv value (specify for SEO) to meet the demands of large-displacement engines.
  • Temperature Range: Operates from -40°C to 74°C (-40°F to 165°F) with frost-free performance.

Applications:

  • CNG-Powered Vehicles: Trucks, buses, and industrial equipment requiring on-board fuel regulation.
  • Alternative Fuel Infrastructure: CNG dispensers and storage systems.

Why Choose 20-1000?

  • Safety Compliance: Meets DOT, ISO 15500, and SAE J2451 standards for CNG components.
  • Ease of Maintenance: Modular design simplifies repairs and reduces downtime.
  • Performance: Reliable pressure control even under fluctuating engine loads.

specification features:

Parameter Value
Rated Pressure Up to 3600 psig/248 bar
Outlet Pressure Regulation 50 - 89 psig ~ 201 - 320 psig (multi-stage)
Material of Components - Valve Body: Nickel-plated aluminum 6061-T6
- Seat: Vespel
- Main Valve: 17-4 stainless steel
- Other Components: Sensor inserts (high-quality)
Cv Value 0.5
Operating Temperature Range -40°C to 93°C
Port Size and Standard - Standard: SAE, NPTF
- Inlet: 1/4 inch
- Outlet: 3/8 inch
Load Design Spring load design
Weight 1.4 lbs/0.6 kg

TESCOM gas regulator valve selection reference
