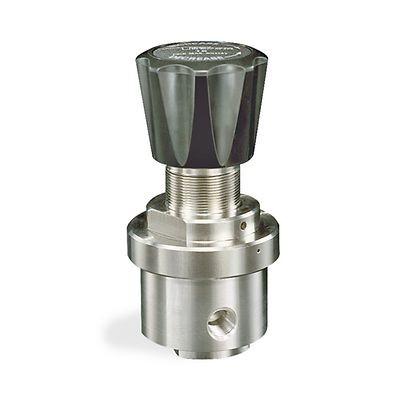

TESCOM 44-4700 Series Pressure Regulator For Low Pressure And Vacuum Environments
TESCOM 44-4700 Series Pressure Regulator For Low Pressure And Vacuum Environments
Specifications
Brand Name :
TESCOM
Model Number :
44-4700 series
Place of Origin :
china
MOQ :
1
Price :
$130
Payment Terms :
T/T, T/T
Supply Ability :
>100
Connection Type :
NPT, BSPP, BSPT, SAE, or other custom connections
Valve Type :
Globe, Angle, or Back Pressure
Mounting Options :
Panel, Pipe, or Bracket mount
Material :
Stainless Steel
Pressure Range :
0-6000 psig
Temperature Range :
0-200°F
Application :
Pressure regulation and flow control in various industries
Features :
High accuracy, low droop, and high flow capacity
Control Type :
Manual, Air Pilot, or Electric
Flow Capacity :
Up to 1000 SCFM
Size :
Various sizes available
Certifications :
CE, ATEX, CSA, FM, and other international certifications
Description

TESCOM 44-4700 Series: Precision Gas Control For Low-Pressure And Vacuum Environments

Product introduction:

The TESCOM 44-4700 series pressure regulator is engineered to handle special, flammable, and industrial gases in low-pressure and vacuum systems with unmatched safety and precision. Its diffusion-proof metal diaphragm seal ensures gas purity and zero leakage, making it ideal for analytical instruments, sampling processes, and pilot plant operations where contamination risks are critical.

Key Features:

  • Metal Diaphragm Sealing: Eliminates diffusion and ensures hermetic containment of hazardous or valuable gases.
  • Low-Pressure/Vacuum Performance: Maintains stable regulation in challenging environments down to 0.1 psig (0.007 bar) for vacuum applications.
  • Corrosion Resistance: 316 stainless steel construction with Hastelloy®/Vespel® seals for compatibility with aggressive gases.
  • Compact Design: Lightweight (2.5 lb/1.1 kg) and space-saving for benchtop or inline installations.

Technical Advantages:

  • Pressure Handling: Inlet up to 3,000 psig (207 bar), outlet adjustable to 0–150 psig (0–10.3 bar).
  • Leakage Standards: UL-rated low leakage (<10⁻⁷ mbar·L/s helium) for toxic or flammable gases.
  • Temperature Range: -40°C to 71°C (-40°F to 160°F) with optional PFA seats for extreme media.

Applications:

  • Analytical Systems: Gas chromatography, mass spectrometry, and environmental monitoring.
  • Chemical Processing: Handling hydrogen, ammonia, and other pyrophoric gases.
  • Energy Research: Fuel cell testing, CO₂ capture, and cryogenic systems.
  • Semiconductor Manufacturing: Ultra-pure gas supply for wafer fabrication.

Why Choose 44-4700?

  • Safety Compliance: Meets USP Class VI, BPE, and SEMI F57 standards for biopharm and semiconductor industries.
  • Reliability: No elastomer-to-gas contact in metal-sealed models for contamination-free operation.
  • Ease of Use: Quick-disconnect fittings and tool-free maintenance reduce downtime.

specifications:

Parameter Value
Inlet Pressure - Withstands pressure changes from 50 mm Hg up to:
- 15 psig (1 bar)
- 50 psig (3.4 bar)
- 100 psig (6.9 bar)
- 150 psig (10.3 bar)
Material - Valve Body/Diaphragm: 316 stainless steel (corrosion/high-temperature resistant)
- Valve Cover: Nickel-free copper
- Seat: Low-friction, high-wear Teflon®
- Spring/Main Valve/Deviation Parts: 316 stainless steel
- Other Components: 316 stainless steel
Ambient Operating Temperature -40°C to 74°C (-40°F to 165°F)
Port Sizes and Types - Sizes: 1/4", 3/8"
- Standards: SAE, NPTF, MS33649, HPIC, etc.
Flow Capacity - Cv = 0.04
- Cv = 0.30
Load Type Spring (ensures stable pressure regulation)
Weight 1.2 kg/2.75 lb (lightweight design)

44-4700 seriesTESCOM industrial back pressure gas regulator selection reference
