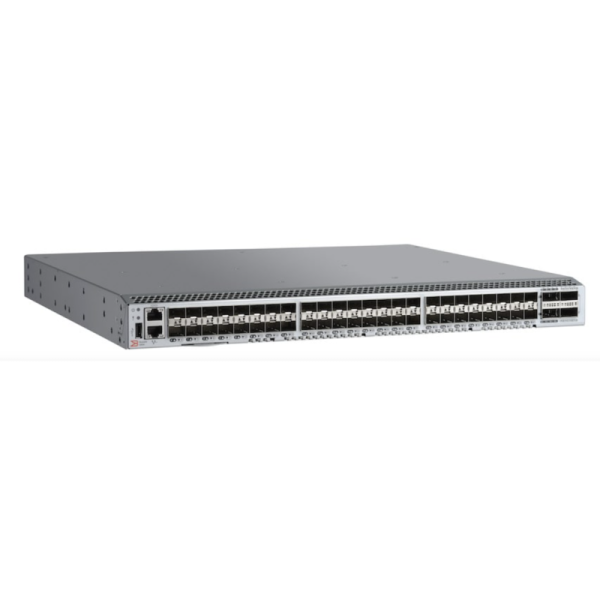

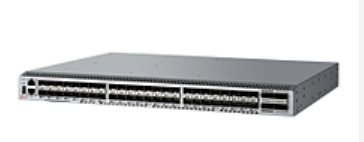

Brocade Fiber Switch Rackmount San G620 Gen6 Virtualized Data Centers
Brocade Fiber Switch Rackmount San G620 Gen6 Virtualized Data Centers
Brocade Fiber Switch Rackmount San G620 Gen6 Virtualized Data Centers
Brocade Fiber Switch Rackmount San G620 Gen6 Virtualized Data Centers
Specifications
Model Number :
G620 Switch
MOQ :
1pcs
Type :
Fiber Channel Switch
Management Interface :
Web GUI, CLI, SNMP
Delivery Time :
5-7 work days
Supply Ability :
200pcs
Power Consumption :
Varies by model, typically 150-300 Watts
Supported Protocols :
Fibre Channel, FICON, iSCSI (with extensions)
Place of Origin :
CHINA
Price :
Negotiable
Brand Name :
Brocade
Port Speed :
8 Gbps, 16 Gbps, 32 Gbps (model dependent)
Switching Capacity :
Up to 1.28 Tbps
Port Count :
16/24/32/64 ports (varies by model)
Packaging Details :
Carton packaging
Redundancy :
Dual power supplies, redundant fans
Description

Brocade Fiber Switch Rackmount San G620 Gen6 Virtualized Data Centers

Product Description

The Brocade G620 is a Gen 6 (32G) enterprise SAN switch delivering 2 Tb/s aggregated bandwidth and sub‑microsecond latency for flash storage and virtualized data centers. Scaling from 24 to 64 ports (48 SFP+ + 4 QSFP, each supporting 128G or split into 4×32G) via on‑demand Ports on Demand (PoD), it features auto‑sensing speeds from 4G to 32G, support for up to 239 switches per fabric, and dual 250W hot‑swap redundant PSUs with integrated fans. With port‑side intake or non‑port‑side exhaust airflow options, the G620 fits diverse data center cooling architectures.

Key Differentiators

  • 64 ports: 48 SFP+ + 4 QSFP (each QSFP = 128G or 4×32G)

  • 2 Tb/s total bandwidth | <900 ns latency (including FEC)

  • Ports on Demand (PoD): 24 → 36/48/64 ports

  • Auto‑sensing speeds: 4/8/16/32G

  • Port types: E_Port, F_Port, N_Port, D_Port, EX_Port (license)

  • Up to 239 switches per fabric

  • Dual 250W hot‑swap redundant PSUs (fans integrated)

  • Dual airflow options: port‑side intake or non‑port‑side exhaust

  • 1U form factor: 1.73” H × 17.32” W × 14.00” D

  • Operating temp: 0° to 40° C | Max noise: 65 dB

Specifications

Category Specification
Model Brocade G620 Switch
Generation Gen 6 (32G)
Form Factor 1U rack mount
FC Ports 48 SFP+
QSFP Ports 4 (each supports 128G or 4×32G)
Max Ports 64 (48 SFP+ + 16 split QSFP)
Base Configuration 24 ports (PoD to 36/48/64)
Supported Speeds 4/8/16/32G, auto‑sensing
Port Types E_Port, F_Port, N_Port, D_Port, EX_Port*
Total Bandwidth 2 Tb/s
Port Latency <900 ns (including FEC)
Frame Buffer 15,360 dynamically allocated
Max Frame Size 2,112 bytes
Max Switches per Fabric 239
Processor T1022 dual‑core 1.2GHz
Power Supply Dual 250W hot‑swap redundant
Max Power Consumption 250W
Cooling Fans integrated into PSU
Airflow Options Port‑side intake / non‑port‑side exhaust
Dimensions (HxWxD) 1.73 x 17.32 x 14.00 in
Weight (unloaded / loaded) 17.0 lb / 18.8 lb
Operating Temp 0° to 40° C
Operating Humidity 10% – 85% (non‑condensing)
Max Noise 65 dB

Transmission Distance

Data Rate Multimode (OM3/OM4) Single‑mode (LWL)
16G 100m / 125m 10 km
32G 70m / 100m 10 km
