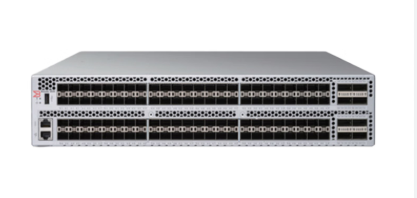

Brocade Fiber Switch G730 San Gen7 Enterprise 8 192T Flash Storage
Brocade Fiber Switch G730 San Gen7 Enterprise 8 192T Flash Storage
Brocade Fiber Switch G730 San Gen7 Enterprise 8 192T Flash Storage
Brocade Fiber Switch G730 San Gen7 Enterprise 8 192T Flash Storage
Specifications
Packaging Details :
Carton packaging
Portcount :
8 to 128 ports
Compatibility :
Supports Fibre Channel Protocol (FCP) and FICON
Brand Name :
Brocade
Portspeed :
16 Gbps, 32 Gbps, or 64 Gbps
Place of Origin :
CHINA
MOQ :
1pcs
Formfactor :
1U or 2U rack-mountable
Managementinterface :
Web GUI, CLI, SNMP
Switchingcapacity :
Up to 1.28 Tbps
Delivery Time :
5-7 work days
Model Number :
G730 Switch
Price :
Negotiable
Supply Ability :
200pcs
Description

Brocade Fiber Switch G730 San Gen7 Enterprise 8 192T Flash Storage

Product Description

The Brocade G730 is a Gen 7 enterprise‑class SAN switch delivering 8.192 Tb/s total bandwidth and 460 ns latency (including FEC) for flash storage and NVMe workloads. It scales from 48 to 128 ports (96 SFP+ + 16 SFP‑DD) via Dynamic‑POD, supporting auto‑sensing speeds from 8G to 64G. With dual 1100W hot‑swap redundant PSUs, 3 hot‑swap fans, and support for up to 239 switches in a fabric (4,000 certified nodes), the G730 is built for high‑density, mission‑critical SAN environments.

Key Differentiators

  • 128 ports: 96 SFP+ + 16 SFP‑DD — 8.192 Tb/s total bandwidth

  • Dynamic‑POD expansion: 48 → 128 ports on‑demand

  • 460 ns low latency (including FEC) — optimized for NVMe over Fabrics

  • Auto‑sensing speeds: 8/10/16/32/64G

  • Port types: E_Port, F_Port, EX_Port, D_Port, M_Port

  • Up to 239 switches per fabric / 4,000 certified nodes

  • Dual 1100W hot‑swap redundant PSUs + 3 hot‑swap redundant fans

  • Authentication: DH‑CHAP, LDAP, RADIUS, TACACS+, SSH2

  • SSL encryption protocol

  • 2U form factor: 3.4” H × 17.3” W × 24” D

  • Operating temp: 0° to 40° C

  • Weight (unloaded): 41.71 lb

Specifications

Category Specification
Model Brocade G730 Switch
Generation Gen 7 (64G)
Form Factor 2U rack mount
Max Ports 128 (96 SFP+ + 16 SFP‑DD)
Base Configuration 48 ports
Expansion Method Dynamic‑POD (48 → 128)
Supported Speeds 8/10/16/32/64G, auto‑sensing
Port Types E_Port, F_Port, EX_Port, D_Port, M_Port
Total Bandwidth 8.192 Tb/s
Latency 460 ns (including FEC)
Max Frame Size 2,112 bytes
Max Switches per Fabric 239
Certified Nodes 4,000
Authentication DH‑CHAP, LDAP, RADIUS, TACACS+, SSH2
Encryption Protocol SSL
Power Consumption (running) 515W
Power Supply Dual 1100W hot‑swap redundant
Cooling 3 hot‑swap redundant fans
Operating Temp 0° to 40° C
Operating Humidity 10% – 85% (non‑condensing)
Dimensions (HxWxD) 3.4 x 17.3 x 24 in
Weight (unloaded) 41.71 lb
