Mechanical Vapor Recompression MVR Compressor 35T/H MVR System
Mechanical Vapor Recompression MVR Compressor 35T/H MVR System
Mechanical Vapor Recompression MVR Compressor 35T/H MVR System
Mechanical Vapor Recompression MVR Compressor 35T/H MVR System
Mechanical Vapor Recompression MVR Compressor 35T/H MVR System
Mechanical Vapor Recompression MVR Compressor 35T/H MVR System
Specifications
Supply Ability :
Single item，60-90 days
machinery test report :
Provided
core components :
PLC, Pressure Vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox, Other
Model Number :
customization
gas type :
customize
Payment Terms :
L/C,T/T
voltage :
380 V
model number :
Multi-stage MVR steam compressor
OEM :
OEM Services Provided
Price :
Single item，330000 USD
configuration :
Stationary
air capacity :
customize
Power :
customized for customers
MOQ :
1 Pcs
Delivery Time :
60-90 days
Cooling Method :
customize
video outgoing-inspection :
Provided
OEM Services Provided :
Explosion-proof and anti-surge valve regulation
Certification :
CE, ISO9001, IS014001, HSAS18001, IATF16949 system certification CCS、DNV
power source :
DC Power
Brand Name :
LAISHUN
type :
Multi stage centrifugal compressor
Place of Origin :
Chongqing, China
lubrication style :
Lubricated
Packaging Details :
Customized wooden box, customized iron box
mute :
Yes
Description

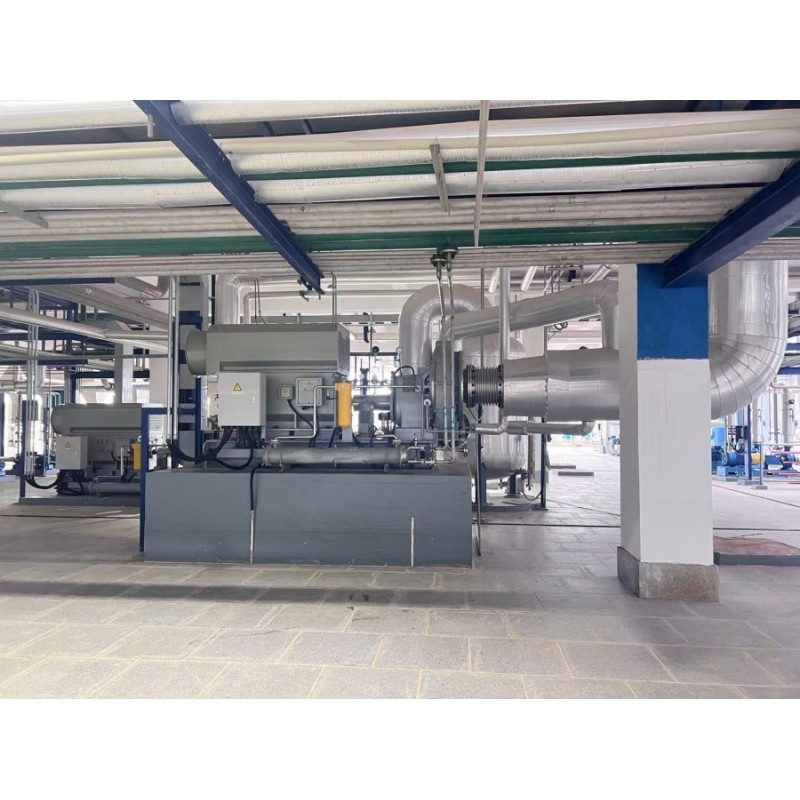

Fully Customized Steam Compressor for 35T/H MVR System

Application: Special environment new energy lithium-ion factory

Inlet Steam Temperature: 80℃

Inlet Pressure: 47.4 Kpa

Exhaust Temperature: 98℃

Exhaust Pressure: 94.4 Kpa

Installed Power: 1700 kW

Single Ton Steam Consumption: 44 kW·h

Centrifugal compression is the optimal choice for MVR systems used in processes such as evaporation crystallization, concentration, and temperature/pressure increase applications.
Model Features
  • Variable frequency/imported regulation
  • Remote monitoring service with automatic control
  • Intelligent anti-surge control for unmanned operation
  • In-depth research capabilities to assist system optimization and matching
  • External sealing structure for easy maintenance
  • Oil-free compressed steam with stable pressure and low noise
  • High efficiency and energy-saving with isentropic efficiency greater than 82%
  • Modular and serialized design with equal emphasis on speed, quality, and service
  • Customized services according to customer requirements
MVR Evaporator Performance Comparison
Parameter Single Effect Evaporator Multi-effect Evaporator MVR Evaporator
Energy Consumption High energy consumption, theoretically 1 ton of steam required to evaporate 1 ton of water More energy-efficient, with decreasing consumption as efficiency increases Most energy-efficient technology, requiring only 15-50 kW·h of electricity per ton of water evaporated
Floor Area Small Large Small
Impact on Product Quality Short dwell time but high temperature, minimal impact on product quality Long dwell time and high temperature, minimal impact on product quality Short residence time, evaporation due to temperature difference, minimal impact on product quality
Energy Mode Requires steam heating, steam pipeline network and boiler Requires steam heating, steam pipeline network and boiler Electricity only, no steam pipe network required, fully self-closing circulation system
Operating Cost High Higher Low
Stability Poor Poor Good
Compared to other evaporator types, MVR evaporators offer the lowest energy consumption, compact footprint, minimal impact on product quality, simple control systems, and high operational stability.
