Industrial Steam Compressor MVR Compressor Variable Frequency Drive
Industrial Steam Compressor MVR Compressor Variable Frequency Drive
Industrial Steam Compressor MVR Compressor Variable Frequency Drive
Industrial Steam Compressor MVR Compressor Variable Frequency Drive
Industrial Steam Compressor MVR Compressor Variable Frequency Drive
Industrial Steam Compressor MVR Compressor Variable Frequency Drive
Specifications
Supply Ability :
Single item，60-90 days
machinery test report :
Provided
core components :
PLC, Pressure Vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox, Other
Model Number :
customization
gas type :
customize
New process :
Explosion-proof and anti-surge valve regulation
MOQ :
1 Pcs
Delivery Time :
60-90 days
Cooling Method :
customize
video outgoing-inspection :
Provided
OEM :
OEM Services Provided
Payment Terms :
L/C,T/T
voltage :
380 V
air capacity :
customize
Certification :
CE, ISO9001, IS014001, HSAS18001, IATF16949 system certification CCS、DNV
Price :
Single item，200000 USD
configuration :
Stationary
Application :
customize
Power :
customized for customers
power source :
DC Power
Brand Name :
LAISHUN
type :
MVR steam compressor
Place of Origin :
Chongqing, China
lubrication style :
Lubricated
Packaging Details :
Customized wooden box, customized iron box
mute :
Yes
Description

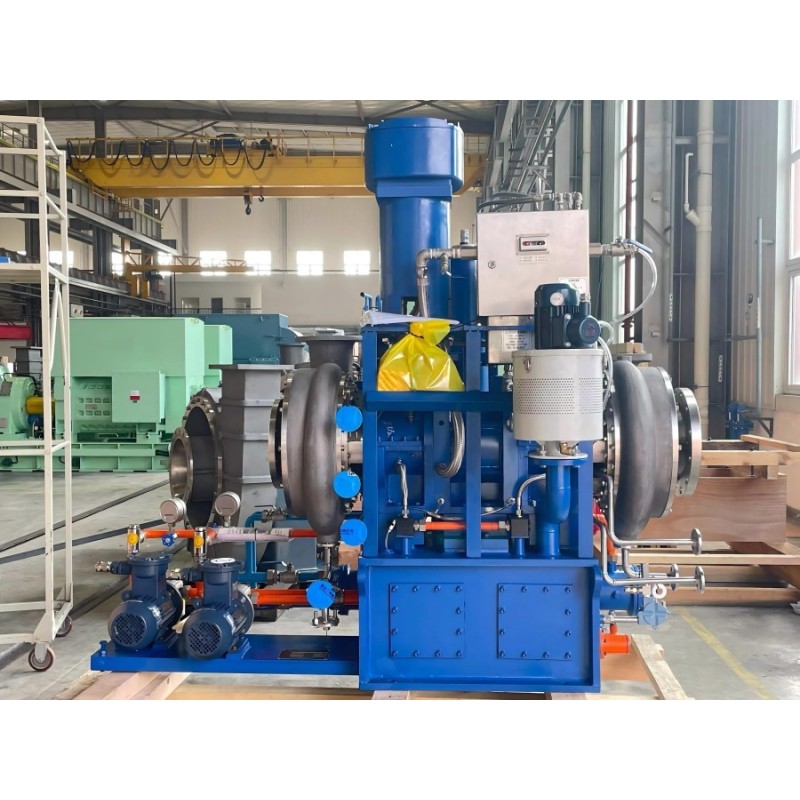

MVR Steam Compressor with Variable Frequency Drive

Our variable frequency drive MVR steam compression system is engineered for high-efficiency industrial distillation applications. Featuring fully lubricated ceramic bearings and a closed water cooling structure, this system achieves efficient recovery of 7T/H ammonia gas with unit energy consumption as low as 20-40 kWh/t water, delivering over 50% energy savings compared to traditional steam heating systems.

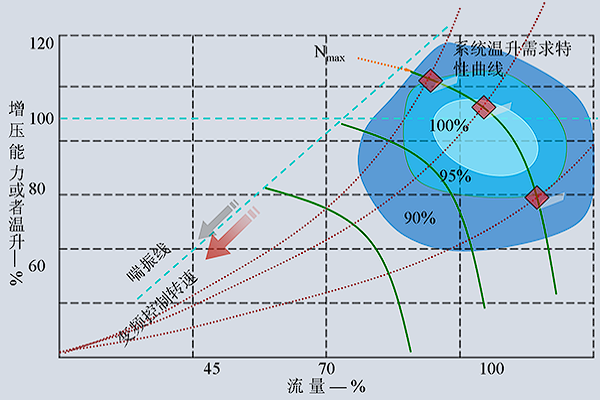

Equipped with intelligent PID variable frequency control that dynamically matches load changes, the system maintains bearing temperature rise at ≤15℃ and operating noise ≤65 dB (A). Certified with Ex d IIB T4 Ga explosion-proof shell, it withstands strong corrosive media including LiPF₆, NH∝, NMP, and more, with a lifespan exceeding 26,000 hours.

The system supports modular quick disassembly, remote vibration monitoring, and includes local 7×24-hour emergency response in Chongqing. This represents the ultimate power solution for lithium battery wet metallurgy and chemical distillation applications, offering zero leakage, extended lifespan, and maximum energy efficiency.

Centrifugal Compression Excellence

Centrifugal compression stands as the optimal choice for MVR systems employed in processes including evaporation crystallization, concentration, and temperature/pressure increase applications.

Model Features
  • Variable frequency/imported regulation
  • Remote monitoring service with automatic control
  • Intelligent anti-wheezing control for unmanned operation
  • In-depth research assistance and system optimization matching
  • External sealing structure for easy maintenance
  • Oil-free compressed steam with stable pressure and low noise
  • High efficiency and energy savings with isentropic efficiency greater than 82%
  • Modular and serialized design balancing speed, quality, and service
  • Customized services tailored to customer requirements
Steam Compressor Performance Comparison

Compared to other evaporator types, MVR evaporators deliver the lowest energy consumption, compact footprint, minimal product quality impact, simple control systems, and exceptional operational stability.

Parameter Single Effect Evaporator Multi-effect Evaporator MVR Evaporator
Energy Consumption High energy consumption, theoretically 1 ton of steam required to evaporate 1 ton of water More energy-efficient, with decreasing consumption as efficiency increases Most energy-efficient technology, requiring only 15-50 kWh of electricity per ton of water evaporated
Floor Area Small Large Small
Impact on Product Quality Short dwell time but high temperature, minimal quality impact Long dwell time with high temperature, minimal quality impact Short residence time, evaporation via temperature difference, minimal quality impact
Energy Mode Steam heating requiring steam pipeline network and boiler Steam heating requiring steam pipeline network and boiler Electricity only, no steam network required, fully self-closing circulation system
Operating Cost High Higher Low
Stability Poor Poor Good
Key Benefits
  • 50% energy cost savings compared to traditional systems
  • Low noise operation at ≤65 dB (A)
  • Water-cooled lubricated motor and bearing system
  • Extended lifespan exceeding 26,000 hours
  • Corrosion-resistant construction for harsh chemical environments
