1T/H Ethanol MVR System MVR Steam Compressor Carbon Ring + Labyrinth Seal
1T/H Ethanol MVR System MVR Steam Compressor Carbon Ring + Labyrinth Seal
1T/H Ethanol MVR System MVR Steam Compressor Carbon Ring + Labyrinth Seal
1T/H Ethanol MVR System MVR Steam Compressor Carbon Ring + Labyrinth Seal
1T/H Ethanol MVR System MVR Steam Compressor Carbon Ring + Labyrinth Seal
1T/H Ethanol MVR System MVR Steam Compressor Carbon Ring + Labyrinth Seal
Specifications
Supply Ability :
Single item，60-90 days
machinery test report :
Provided
core components :
PLC, Pressure Vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox, Other
Model Number :
customization
gas type :
customize
New process :
Explosion-proof and anti-surge valve regulation
MOQ :
1 Pcs
Delivery Time :
60-90 days
Cooling Method :
customize
video outgoing-inspection :
Provided
Certification :
CE, ISO9001, IS014001, HSAS18001, IATF16949 system certification CCS、DNV
Payment Terms :
L/C,T/T
voltage :
380 V
air capacity :
customize
OEM :
OEM Services Provided
Price :
Single item，275000 USD
configuration :
Stationary
Application :
customize
Power :
customized for customers
power source :
DC Power
Brand Name :
LAISHUN
type :
MVR steam compressor
After-sales Service Provided :
Engineers
Place of Origin :
Chongqing, China
lubrication style :
Lubricated
Packaging Details :
Customized wooden box, customized iron box
mute :
Yes
Description
Special Fully Customized 1T/H Ethanol MVR System
Steam compressor with carbon ring + labyrinth seal
Specifications: Inlet steam temperature 60°C, pressure 47kPa | Exhaust temperature 72°C, pressure 71kPa | Medium: Ethanol | Installed power 75kW | Single ton steam consumption 45kW·h
Centrifugal compression is the optimal choice for MVR systems used in processes such as evaporation crystallization, concentration, and temperature/pressure increase applications.
Model Features
  • Variable frequency/imported regulation
  • Remote monitoring service with automatic control
  • Intelligent anti-surge control for unmanned operation
  • In-depth research capabilities to assist system optimization and matching
  • External sealing structure for easy maintenance
  • Oil-free compressed steam with stable pressure and low noise
  • High efficiency and energy savings with isentropic efficiency greater than 82%
  • Modular and serialized design with equal emphasis on speed, quality, and service
  • Customized services tailored to customer requirements

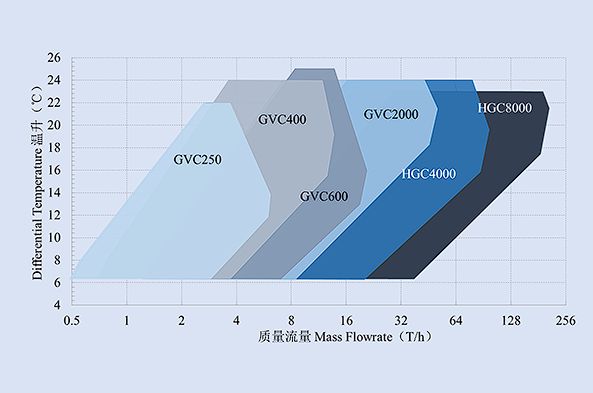

Steam Compressor Application Performance
Compared to other evaporator types, MVR evaporators offer the lowest energy consumption, compact footprint, minimal impact on product quality, simple control systems, and high operational stability.
Type Single Effect Evaporator Multi-effect Evaporator MVR Evaporator
Energy Consumption High energy consumption, theoretically requires 1 ton of steam to evaporate 1 ton of water More energy-efficient; energy consumption decreases as efficiency increases Most energy-efficient technology currently available, requiring only 15-50 kW·h of electricity per ton of water evaporated
Floor Area Small Large Small
Impact on Product Quality Short dwell time but high temperature, with minimal impact on product quality Long dwell time, high temperature, with minimal impact on product quality Short residence time, evaporation due to temperature difference, minimal impact on product quality
Energy Mode Requires steam heating, steam pipeline network, and boiler Requires steam heating, steam pipeline network, and boiler Electricity only required; no steam pipe network needed; fully self-closing circulation system
Operating Cost High Higher Low
Stability Poor Poor Good
Key Advantage: MVR technology represents the most advanced evaporator solution with superior energy efficiency and operational reliability for industrial applications.

1T/H Ethanol MVR System MVR Steam Compressor Carbon Ring + Labyrinth Seal

1T/H Ethanol MVR System MVR Steam Compressor Carbon Ring + Labyrinth Seal

1T/H Ethanol MVR System MVR Steam Compressor Carbon Ring + Labyrinth Seal
