Satellite Turntable Glass Edge Grinding Machine for Round and Oval Glass Shaped Glass Beveled Edge Processing
Satellite Turntable Glass Edge Grinding Machine for Round and Oval Glass Shaped Glass Beveled Edge Processing
Specifications
Model Number :
ST1321
Weight :
1000kg
Processing diameter :
110-2100mm
MOQ :
1
Packaging Details :
Protective Film
Power :
3KW
Brand Name :
FOSHAN STAR
Payment Terms :
T/T
Bevel angle :
0-20°
Turntable speed :
1.2～6r/min
Price :
3600-4000USD/SET
Max bevel width :
35mm
Delivery Time :
30 working days
Glass thickness :
3-21mm
Certification :
CB,CE, RoHS, ISO9001
Working speed :
0.8～4r/min
Place of Origin :
China
Description
CNC Double Heads Glass Drilling Machine

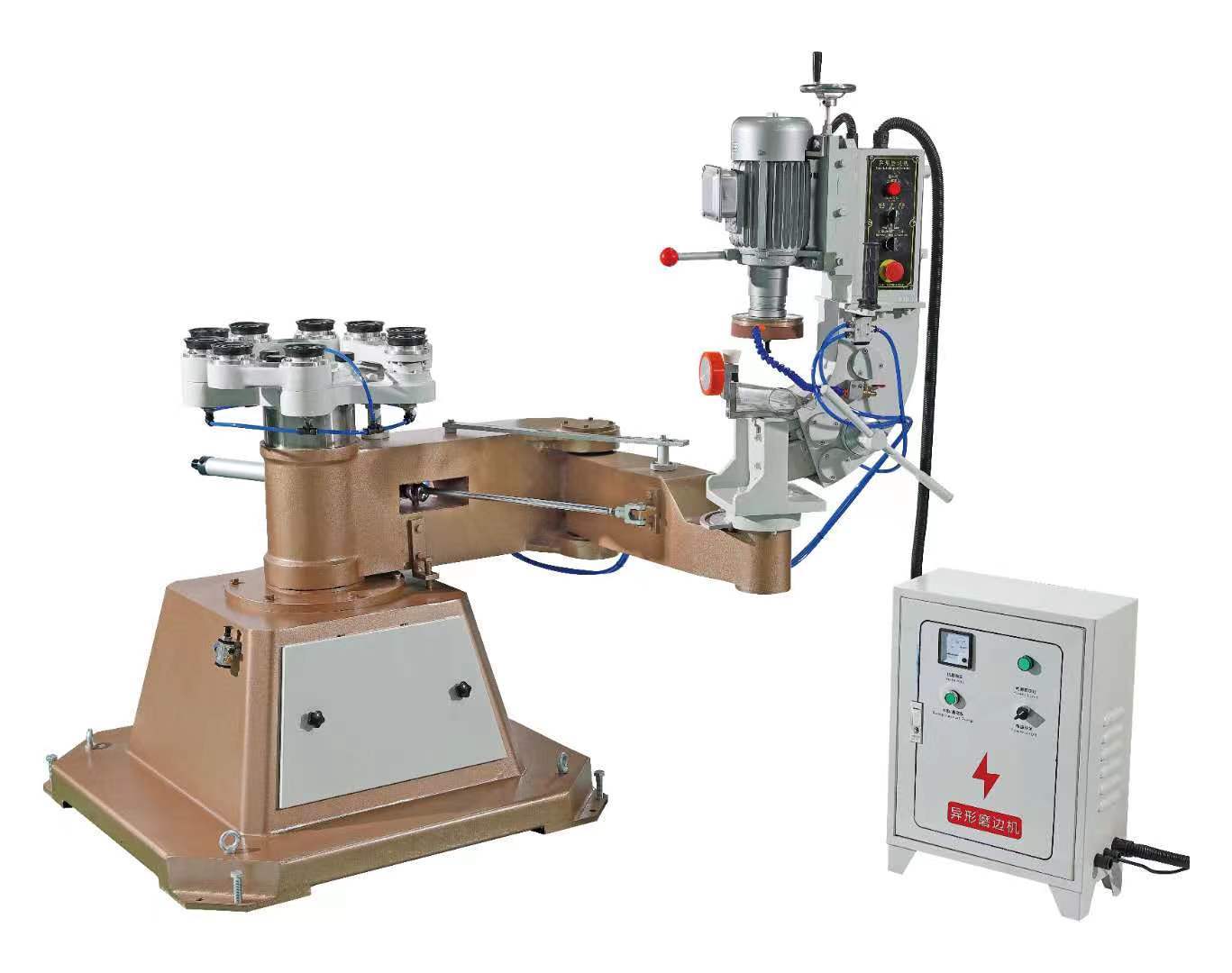

Machine Overview

This glass edging machine is specifically designed for grinding the edges and bevels of shaped glass, such as round or oval pieces. A satellite-style turntable drives the workpiece to rotate, with a rotation speed that can be steplessly adjusted during operation to flexibly meet various grinding requirements. Equipped with a pneumatic cylinder, the machine also enables semi-automatic grinding for simple shaped glass. For beveling operations, it utilizes a cup-shaped grinding wheel; by tilting the grinding head backward and adjusting the bevel angle, precise and smooth grinding of the edge surface is achieved.

Product Advantages
  • Edge processing for shaped glass (e.g., circular and elliptical)—suitable for peripheral and beveled edge processing of shaped glass such as circular and elliptical pieces.
  • Adjustable satellite turntable—the satellite turntable rotates the workpiece; the rotation speed can be adjusted during operation, allowing for flexible control of the grinding process.
  • Semi-automatic grinding of shaped glass—utilizes pneumatic cylinders to perform semi-automatic grinding on glass with simple shapes.
  • Precision bevel grinding—employs a cup-shaped grinding wheel for bevel grinding; the edge surface is ground by tilting the grinding head backward and adjusting the bevel angle.
Technical Specifications
Processing diameter 110mm～2100mm
Glass thickness 3-21mm
Bevel angle 0-20°
Max.bevel width 35mm
Speed 0.8～4r/min
Turntable speed 1.2～6r/min
Voltage, Power 380V,50HZ,3KW
Weight 1000kg
Dimensions 1300×1700×2100mm
The whole machine runs without abnormal noise
Product Service

Satellite Turntable Glass Edge Grinding Machine for Round and Oval Glass Shaped Glass Beveled Edge Processing

Satellite Turntable Glass Edge Grinding Machine for Round and Oval Glass Shaped Glass Beveled Edge Processing

Satellite Turntable Glass Edge Grinding Machine for Round and Oval Glass Shaped Glass Beveled Edge Processing

Satellite Turntable Glass Edge Grinding Machine for Round and Oval Glass Shaped Glass Beveled Edge Processing

Satellite Turntable Glass Edge Grinding Machine for Round and Oval Glass Shaped Glass Beveled Edge Processing

Satellite Turntable Glass Edge Grinding Machine for Round and Oval Glass Shaped Glass Beveled Edge Processing

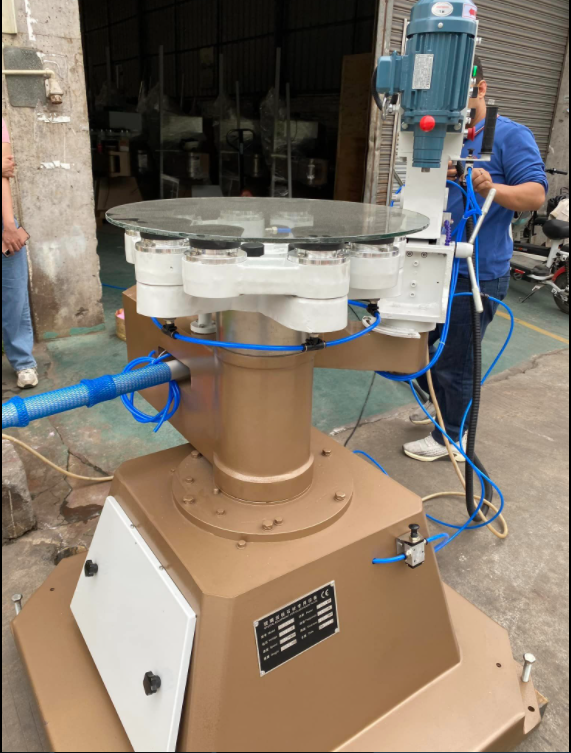

Machine Photos
