Small Size Fully Automatic Glass Edging Machine 8-motor Double-grinding And Polishing Machine
Small Size Fully Automatic Glass Edging Machine 8-motor Double-grinding And Polishing Machine
Specifications
Payment Terms :
T/T
Dimension :
3500x2400x1800mm
Hs Code :
8464201000
Supply Ability :
15-30SET/MONTH
Name :
glass double edging machine
Min Seaming Size :
100x100mm
Certification :
CE/ISO/RoHS
Price :
18500USD
Applicable Materials :
Glass/Marble /Ceramic
Model Number :
SB-1008
Usage :
Polishing Glass Edge
Material Compatibility :
Glass
MOQ :
1
Delivery Time :
30-50
Working Speed :
0.8-8.0m/min
Brand Name :
FOSHAN STAR
OEM :
Avalialbe
Packaging Details :
Protective film
Angle Of Spindle :
0-45°
Air Pressure Needed :
6kg/square cm
Place of Origin :
CHINA
Transport Package :
Protective Film
Weight :
2800KG
Using :
Manual
Description

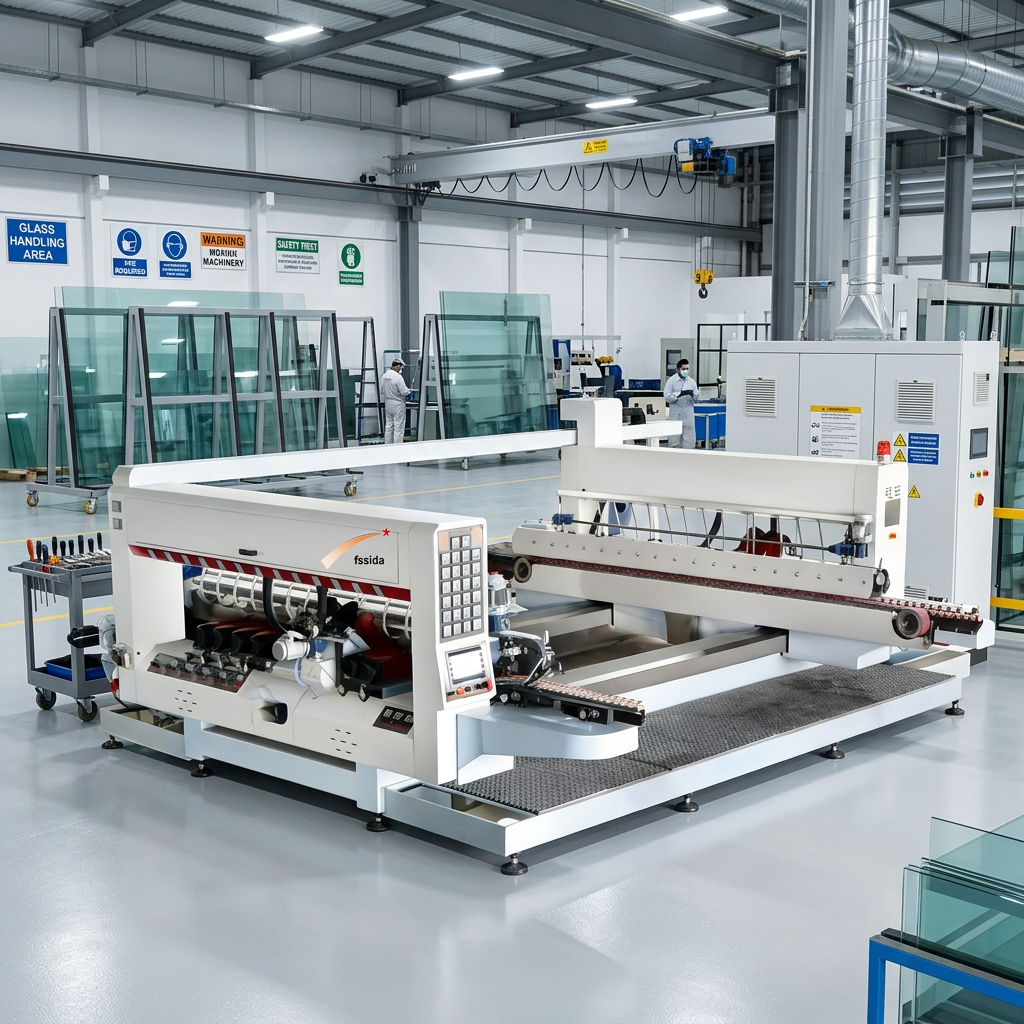

Small Size Fully Automatic Glass Edging Machine 8-motor Double-grinding And Polishing Machine
Machine Introduce

To process glass flat edge with 45 degree arris. This machine can process 2 parallel edges at same time.

Technical Parameters

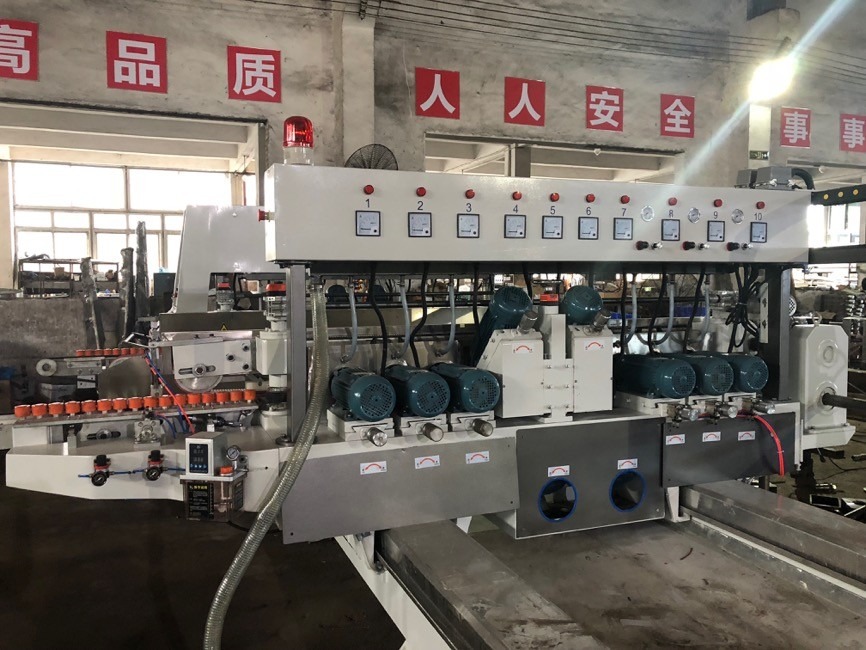

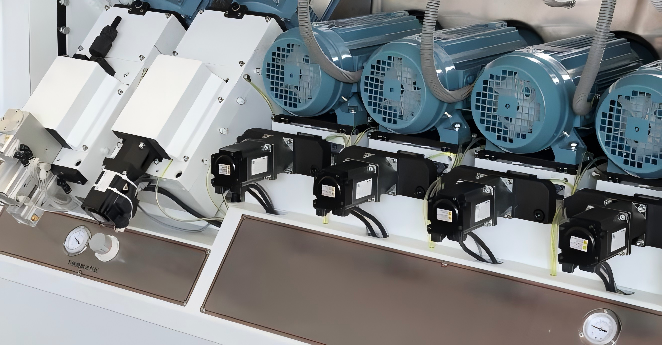

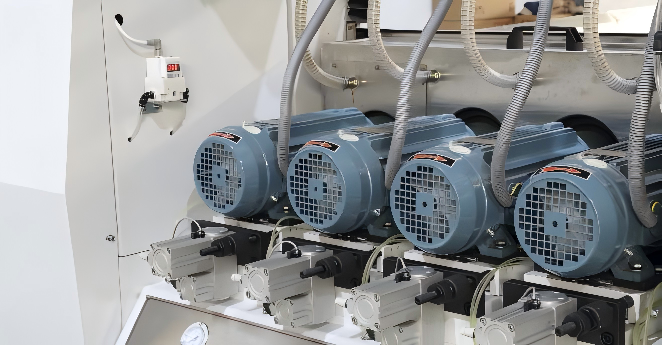

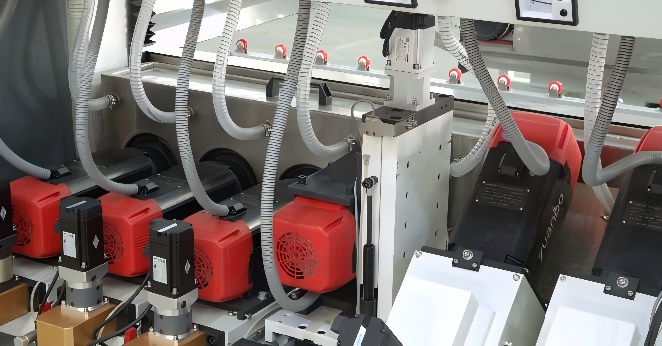

Spindles8 (each side has 4 grinding wheel)
Max. glass width1000mm
Min. glass size:100x100mm
Glass thickness:3-12mm
Working speed0.8-8m/min
Installed power21kw
Pressure6kg/square cm
Overall dimension3500x2400x1800mm
Weight2800kg
Grinding wheel introduction
#Specification#Specification
1Diamond wheel bottom edge, 150mm2Resin wheel for arris, 130mm
3Resin wheel for arris, 130mm4Resin wheels for bottom, 150mm
Product advantage:
  1. The machine uses one set of PLC control system. Can count the processing amount automatically. Glass processing speed showed on the screen page

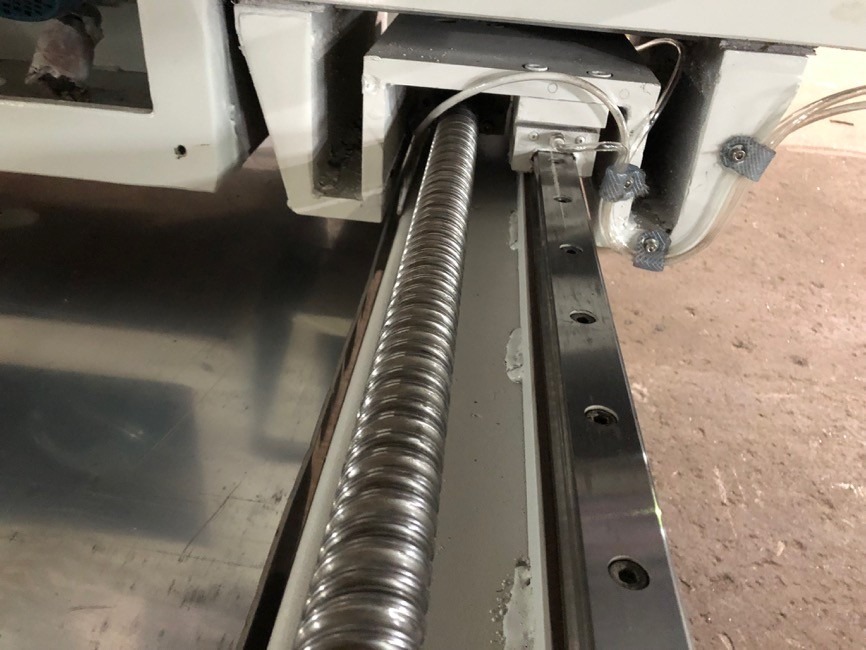

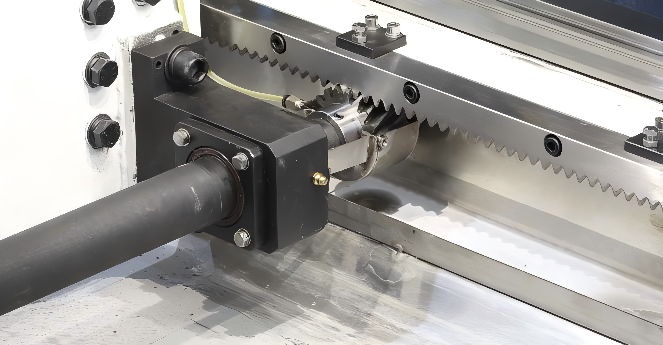

  2. With the use of Taiwan guide rails for stable running of the machine.
  3. Two step fixing of glass to enable glass has good diaganal.

Small Size Fully Automatic Glass Edging Machine 8-motor Double-grinding And Polishing Machine

Small Size Fully Automatic Glass Edging Machine 8-motor Double-grinding And Polishing Machine

Small Size Fully Automatic Glass Edging Machine 8-motor Double-grinding And Polishing Machine

Small Size Fully Automatic Glass Edging Machine 8-motor Double-grinding And Polishing Machine

Small Size Fully Automatic Glass Edging Machine 8-motor Double-grinding And Polishing Machine

Small Size Fully Automatic Glass Edging Machine 8-motor Double-grinding And Polishing Machine

Small Size Fully Automatic Glass Edging Machine 8-motor Double-grinding And Polishing Machine

Small Size Fully Automatic Glass Edging Machine 8-motor Double-grinding And Polishing Machine

Small Size Fully Automatic Glass Edging Machine 8-motor Double-grinding And Polishing Machine

Small Size Fully Automatic Glass Edging Machine 8-motor Double-grinding And Polishing Machine

Small Size Fully Automatic Glass Edging Machine 8-motor Double-grinding And Polishing Machine

Small Size Fully Automatic Glass Edging Machine 8-motor Double-grinding And Polishing Machine

Frequently Asked Questions
Q: What is the MOQ?
A: 1 SET
Q:What is the best price?
A:The price depends on machine size, model etc.
Q:What is the delivery time?
A:Usually it within 30-60 days , but also depends on machine model. Your voltage etc.
Q: What about warranty?
A:We supply one year warranty period ,Lifetime technical support and service.
Q: How your after-sale service?
A: Online Remote Service, Engineers go on site to install service training. 7*24 hours service.
Q:Where do you sell? Do you have experience in these countries?
A:We sold to America,Europe,Middle East,Asia,and so on.We have 20 years in export with all different certificates,like CB,CE, RO,HS, ISO9001 etc.
