11 Motors Straight Line Glass Edging Machine Multistage 7500*1000*2600mm
11 Motors Straight Line Glass Edging Machine Multistage 7500*1000*2600mm
Specifications
Model Number :
ST-11.353A
Wheels :
11
Certification :
CB,CE, RoHS, ISO9001
Working speed :
0.6-8.0m/min
MOQ :
1
Delivery Time :
30 working days
Total dimension :
7500*1000*2600mm
Max arris width :
2.5mm
Price :
$14000-$18000USD/SET
Total weight :
3600KG
Supply Ability :
60Set each month
Bevel angle :
0°-45°
Brand Name :
FOSHAN STAR
Name :
Glass Edging Machine
Packaging Details :
Protective Film
Place of Origin :
China
Total power :
26.3kw
Payment Terms :
T/T
Glass thickness :
3-20mm
Description
11 Motors Glass Straight Line Multistage Edging Machine
Machine Introduction
  1. ST11.353A Glass Straight‑Line Edging Machine is designed for grinding and polishing the bottom edge and arris of flat glass in various sizes and thicknesses. It is equipped with 3 grinding wheels for front chamfer, 3 grinding wheels for rear chamfer and 5 grinding wheels for bottom edge. The main drive adopts variable‑frequency speed regulation, and the conveying speed can be electrically adjusted directly on the control panel.
  2. Coarse grinding, fine grinding and polishing for bottom edge, as well as coarse & fine grinding for arrises can be finished in one pass, delivering excellent polishing gloss. The machine features simple commissioning and user‑friendly operation with stable performance, which is a cost‑effective option for flat‑glass straight‑edge processing.
Product Advantage
  1. Adopts digital display for glass thickness, realizing real-time, accurate and intuitive thickness observation.
  2. The grinding head is equipped with standard dovetail slide and manual oil injection structure, which simplifies daily maintenance and prolongs service life.
  3. The final bottom edge polishing unit adopts 4/2-pole dual-speed professional motor, which delivers fine polishing texture and high glass surface gloss.
  4. Equipped with four-layer combined brush waterproof structure to effectively block water splashing. The brush parts are easy to disassemble, replace and maintain.
  5. Adopts exclusive linear support plate design for front beam operation, featuring stable operation, simple disassembly and convenient daily maintenance.
  6. The main drive system adopts variable-frequency stepless speed regulation, with precise speed adjustment and stable overall operation.
  7. The front and rear guide rails are made of high-quality cast iron, with excellent rigidity, anti-deformation performance and long service life.
  8. The machine bed and vertical columns adopt integral cast iron casting process instead of steel plate welding, effectively resisting vibration and ensuring overall structural stability.
  9. The dovetail grinding head support plate is made of high-precision processed cast iron, achieving zero-gap fit, low vibration and ultra-stable operation during processing.
Techinical Parameters
Parameter Value
Wheels 11
Working speed 0.6-8.0m/min
Max. arris width 2.5mm
Min. glass size 80*80mm
Glass thickness 3-20mm
Bevel angle 0°-45°
Max arris width 2.5mm
Total power 26.3kw
Total dimension 7500*1000*2600mm
Total weight 3600kg
Product Service

11 Motors Straight Line Glass Edging Machine Multistage 7500*1000*2600mm

11 Motors Straight Line Glass Edging Machine Multistage 7500*1000*2600mm

11 Motors Straight Line Glass Edging Machine Multistage 7500*1000*2600mm

11 Motors Straight Line Glass Edging Machine Multistage 7500*1000*2600mm

11 Motors Straight Line Glass Edging Machine Multistage 7500*1000*2600mm

11 Motors Straight Line Glass Edging Machine Multistage 7500*1000*2600mm

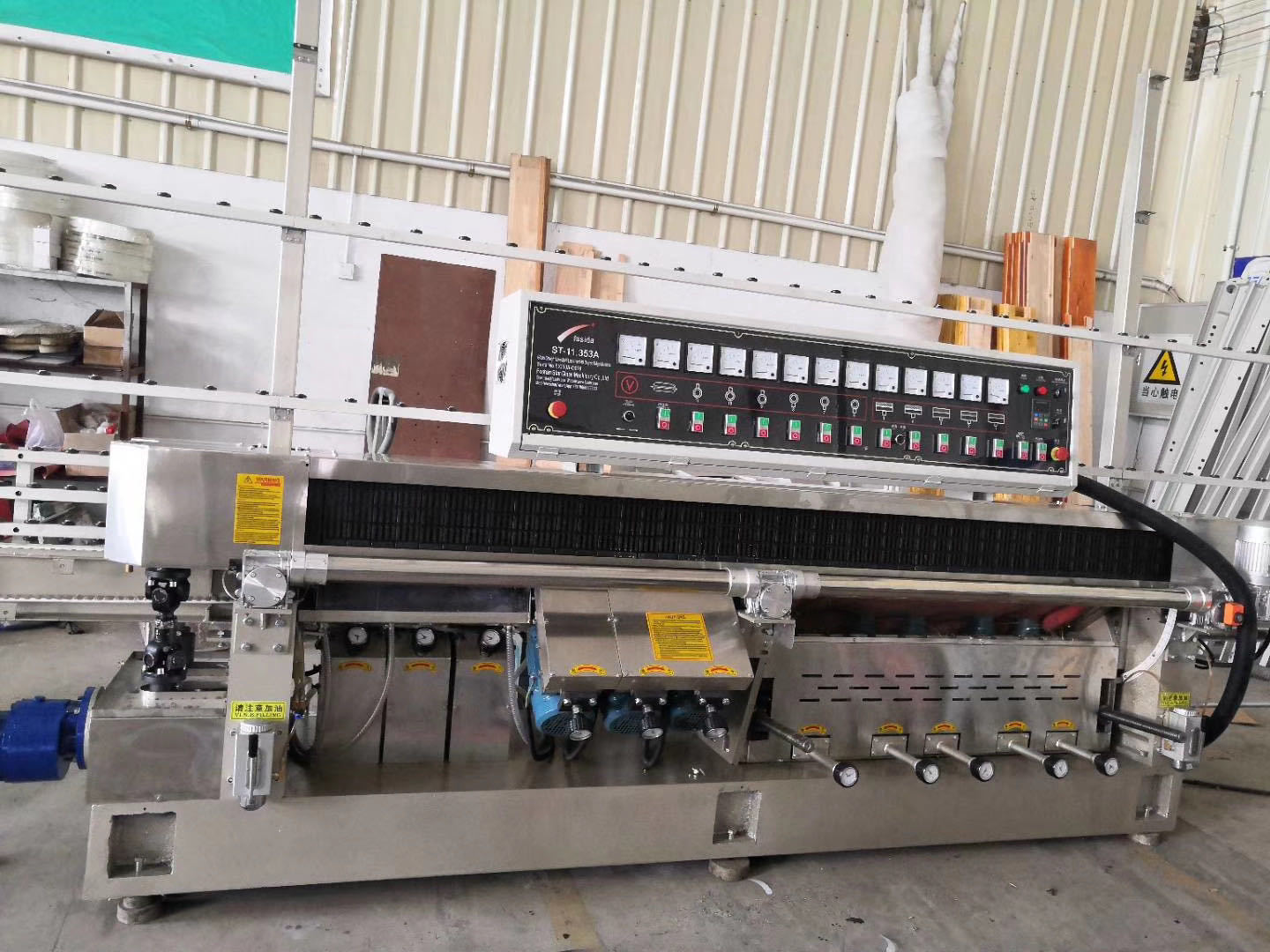

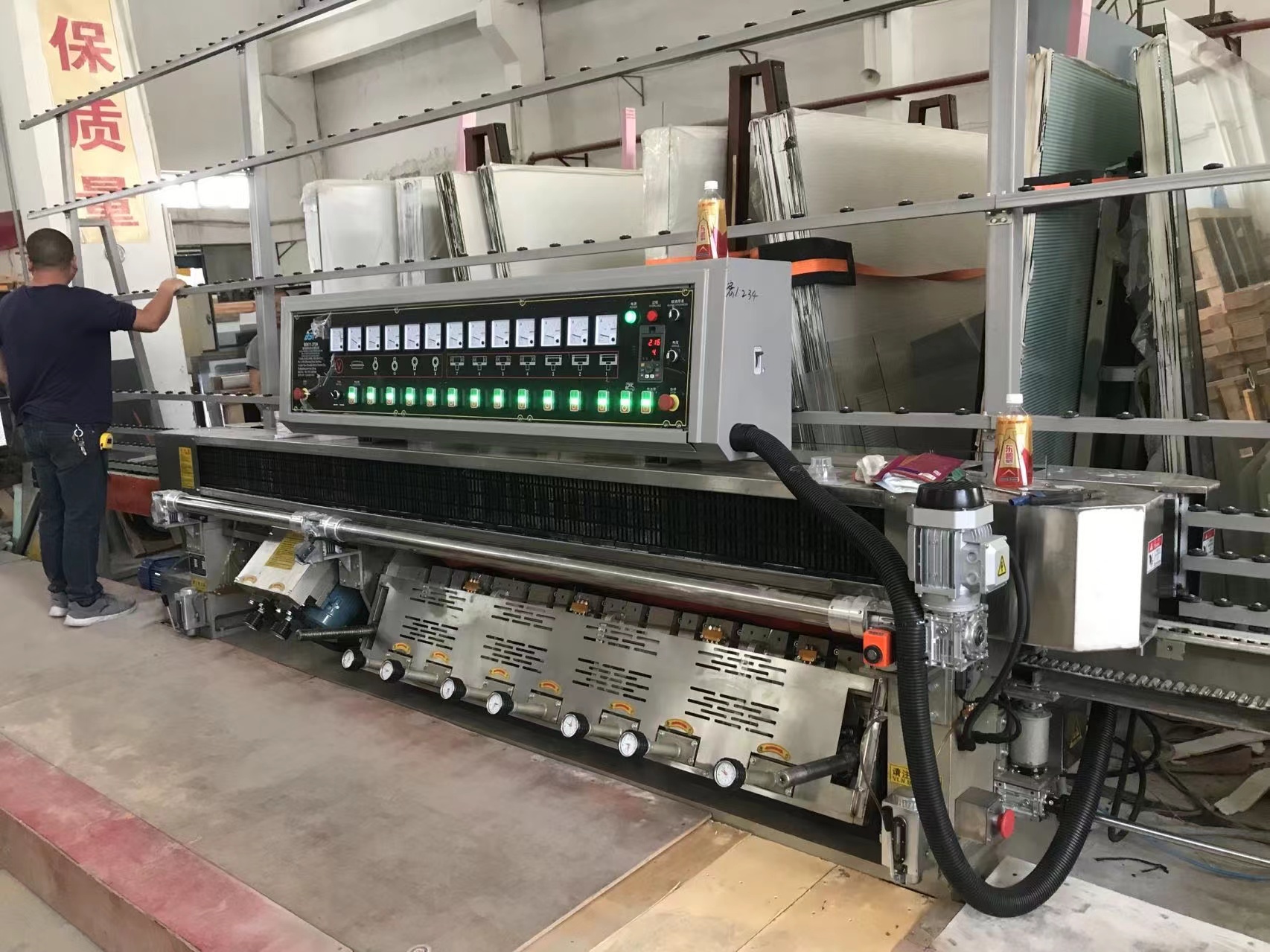

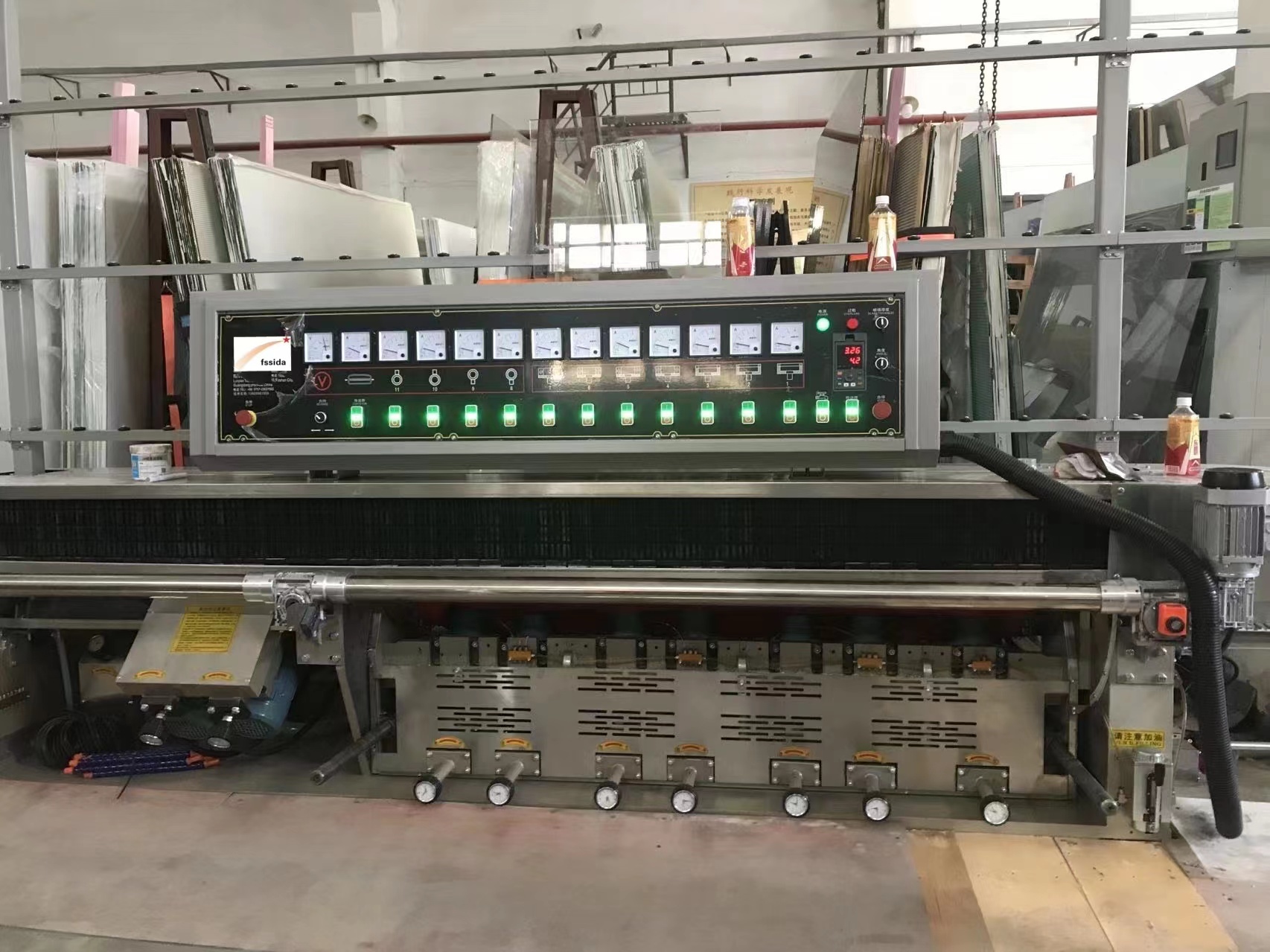

Product Images
