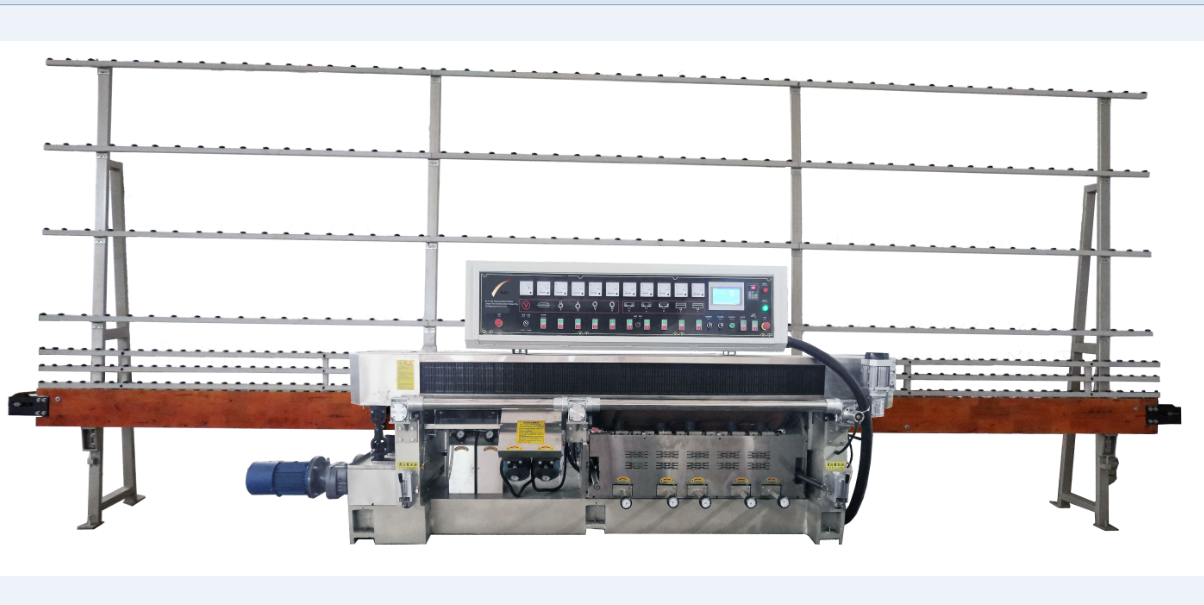

9 Spindles Glass Straight Line Edging Machine Multistage PLC Control
9 Spindles Glass Straight Line Edging Machine Multistage PLC Control
Specifications
Model Number :
ST-11.353A
Wheels :
9
MOQ :
1
Delivery Time :
30 working days
Total dimension :
6600*1000*2600mm
Max arris width :
2.5mm
Price :
$13000-$16000USD/SET
Total weight :
2800KG
Certification :
CB,CE, RoHS, ISO9001
Working speed :
0.6-8.0m/min
Payment Terms :
T/T
Glass thickness :
3-20mm
Supply Ability :
60Set each month
Bevel angle :
0°-45°
Brand Name :
FOSHAN STAR
Name :
Glass Straight Edging Machine
Packaging Details :
Protective Film
Place of Origin :
China
Total power :
22kw
Description
9 Spindles Glass Straight Line Multistage Edging Machine, Variable 0‑45° Bevel With PLC Control
Machine Introduction
  1. It performs glass edge grinding and polishing with 0°‑45° adjustable bevel angle.
  2. Chain‑type conveyor with special elastic rubber pads and timing‑belt glass feeding ensures stable operation.
  3. Features easy operation, convenient maintenance and automatic glass‑thickness adjustment.
Product Advantage
  • The main transmission is equipped with a variable‑frequency drive unit, delivering shake‑free, stable operation and low‑noise performance at both high and low speeds.
  • Comes with a digital readout for glass‑thickness monitoring.
  • Fitted with a manual oil‑lubrication mechanism, which simplifies servicing for the sliding bases supporting the grinding spindles.
  • The final motor dedicated to bottom‑edge polishing adopts a dual‑speed configuration.
  • Four‑layer waterproof brush assembly, convenient for dismounting and replacement.
  • Redesigned front‑rail structure enables quick removal and replacement of the glass‑thickness‑adjustment lead screw.
Techinical Parameters
Parameter Value
Wheels 9
Working speed 0.6-8.0m/min
Max. arris width 2.5mm
Min. glass size 80*80mm
Glass thickness 3-20mm
Bevel angle 0°-45°
Max arris width 2.5mm
Total power 22kw
Total dimension 6600*1000*2600mm
Total weight 2800kg
Product Service

9 Spindles Glass Straight Line Edging Machine Multistage PLC Control

9 Spindles Glass Straight Line Edging Machine Multistage PLC Control

9 Spindles Glass Straight Line Edging Machine Multistage PLC Control

9 Spindles Glass Straight Line Edging Machine Multistage PLC Control

9 Spindles Glass Straight Line Edging Machine Multistage PLC Control

9 Spindles Glass Straight Line Edging Machine Multistage PLC Control

Product Images

9 Spindles Glass Straight Line Edging Machine Multistage PLC Control
