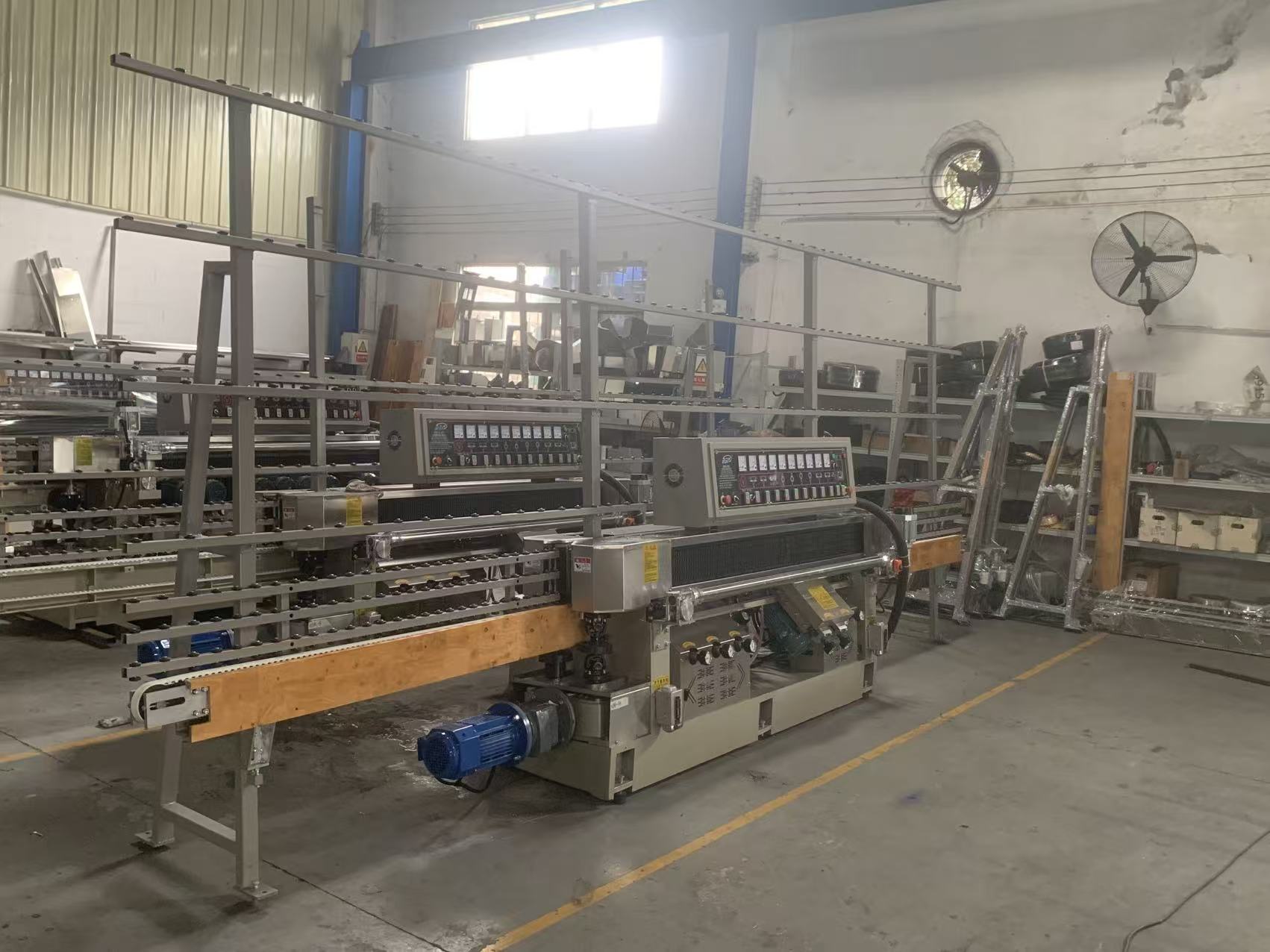

3-20mm Glass Straight Line Edging Machine , 9 Wheels Glass Processing Machine
3-20mm Glass Straight Line Edging Machine , 9 Wheels Glass Processing Machine
3-20mm Glass Straight Line Edging Machine , 9 Wheels Glass Processing Machine
3-20mm Glass Straight Line Edging Machine , 9 Wheels Glass Processing Machine
Specifications
Model Number :
ST-9.325E
Wheels :
9
MOQ :
1
Delivery Time :
30 working days
Total dimension :
6.6x1.0x2.6m
Price :
$9800-$11000USD/SET
Total weight :
2800KG
Certification :
CB,CE, RoHS, ISO9001
Working speed :
0.6-6.0m/min
Supply Ability :
60Set each month
Brand Name :
FOSHAN STAR
Name :
Glass Straight Line Edging Machine
Packaging Details :
Protective Film
Place of Origin :
China
Total power :
18.75kw
Payment Terms :
T/T
Glass thickness :
3-20mm
Description
Minimalist Operation, Excellent Quality Glass Processing Straight Edge Machine
Product Description

This 9 motors glass straight-line edging machine grinds flat glass edges smoothly and vibration-free. Frequency-conversion speed control and a telescopic platen adjust varied glass thicknesses precisely, while a digital grind display and adjustable conveyor rack ease operation.

Product Features
  • Adopt frequency aviator as main transmit system, high or low speed all smooth and no vibration, low noise.
  • The last motor for polishing flat bottom glass, adopt double speed system motor.
  • Front and rear rails: high quality cast iron, not easily deformed.
  • Adopt manual filling function lubrication system, easy to maintain the skateboards which for support grinding motors.
  • Digital display glass thickness.
  • 4 layer waterproof brush, easy to replace.
  • Advanced front beam configuration. Exclusive design of straight pallets for easier replacement and maintenance.
  • Main machine body, supporting pillar, all adopting high quality iron casting.
  • The pads and chain are adopted famous brand in China. The front and rear splints are all branded “lobster", and the chain adopts the “Donghua" brand in Hangzhou.
  • Dovetail grinding head plate: high quality cast iron, professional processing, no gap, stable and vibration-free during work.Waterproof brush: high elasticity, high temperature resistant.
Product Specifications
Parameter Value
Wheels 9
Working speed 0.6-6.0m/min
Max. arris width 2.5mm
Min. glass size 80*80mm
Glass thickness 3-20mm
Total power 18.75kw
Total dimension 6600*1000*2600mm
Total weight 2800kg
Product Service
