Single Head Manual Glass Corner Grinding and Polish Machine
Single Head Manual Glass Corner Grinding and Polish Machine
Specifications
Certification :
CB,CE, RoHS, ISO9001
Max bevel width :
35mm
Machine size :
1800*1000*1500mm
Price :
2300-3000USD/SET
Power :
2.2KW
Glass size :
2000mm
Brand Name :
FOSHAN STAR
Model Number :
ST1321
Weight :
200kg
Delivery Time :
30 working days
Turntable speed :
1.2～6r/min
Place of Origin :
China
Glass thickness :
3-15mm
Payment Terms :
T/T
Bevel angle :
0-20°
Packaging Details :
Protective Film
Working speed :
0.8～4r/min
R angle range :
R5-R60
MOQ :
1
Processing diameter :
110-2100mm
Description
Single Head Manual Glass Corner Grinding and Polish Machine
Machine Overview

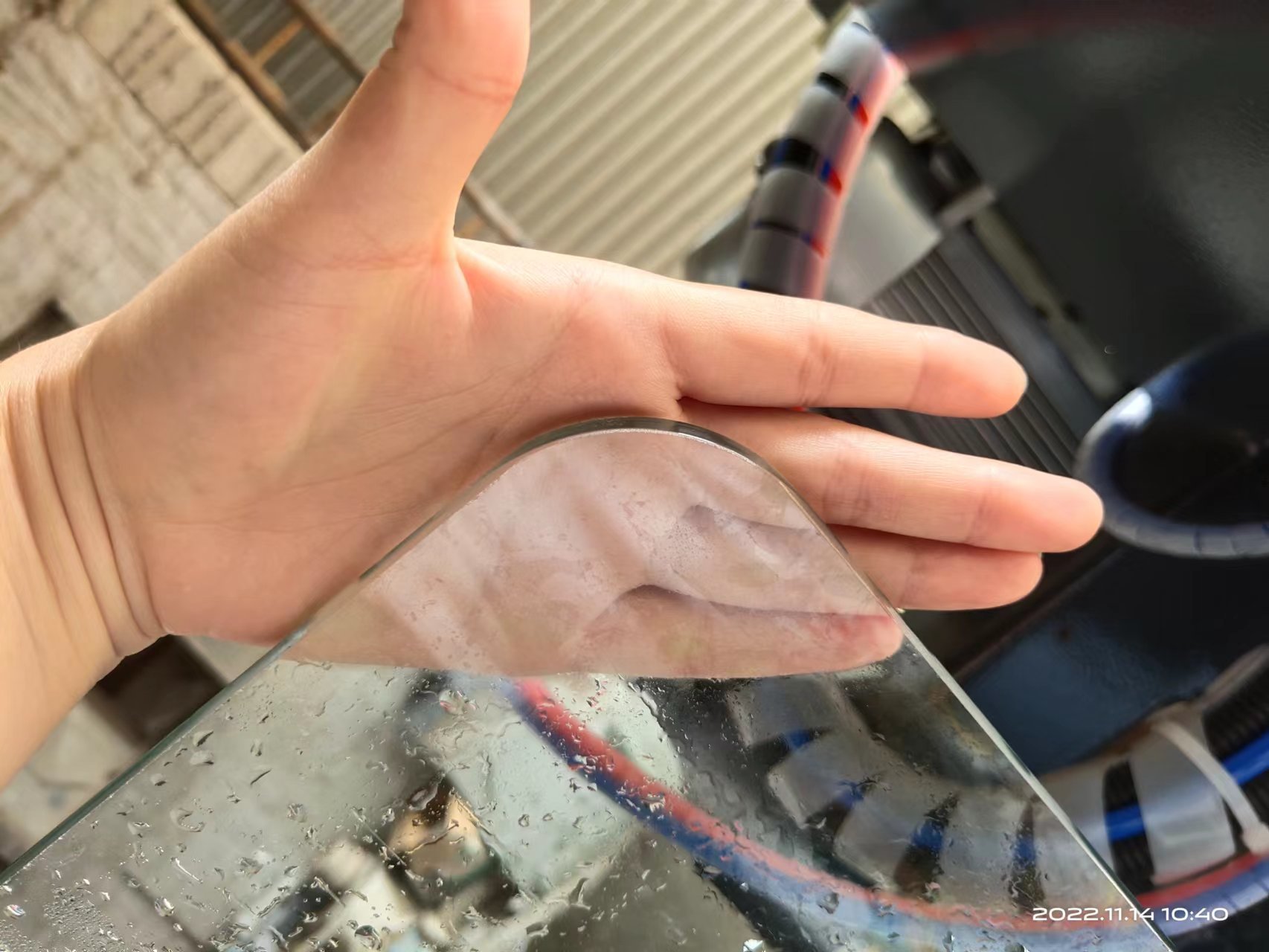

  1. This machine is used for chamfering glass or stone. It grinds a 90-degree right angle into a smooth arc and polishes it in one pass.

  2. Different grinding wheels can be fitted for different material thicknesses, and it processes both straight edges and round edges.

  3. It is operated manually — simple to use and energy-saving.

Product Advantages

  • Dual-material processing — chamfers and edges both glass and stone

  • Right-angle to arc grinding — turns a 90° right angle into a smooth arc

  • Grind & polish in one pass — integrated grinding and polishing for a finished edge

  • Adjustable grinding wheels — switch wheels to suit different material thicknesses

  • Flexible edge profiles — supports both straight edges and round (arc) edges

  • Manual operation — simple, intuitive and easy to master

  • Energy-saving design — low power consumption for continuous workshop use

Technical Specifications
Item Details
Thickness of the glass 3-15mm
Glass size 200*200MM-2M
Motor power 2.2kw*1
Air pressure 6kg
Outline dimensons 1800*1000*1500mm
Processing size 200*200MM
Weight 200kg
Product Service

Single Head Manual Glass Corner Grinding and Polish Machine

Single Head Manual Glass Corner Grinding and Polish Machine

Single Head Manual Glass Corner Grinding and Polish Machine

Single Head Manual Glass Corner Grinding and Polish Machine

Single Head Manual Glass Corner Grinding and Polish Machine

Single Head Manual Glass Corner Grinding and Polish Machine

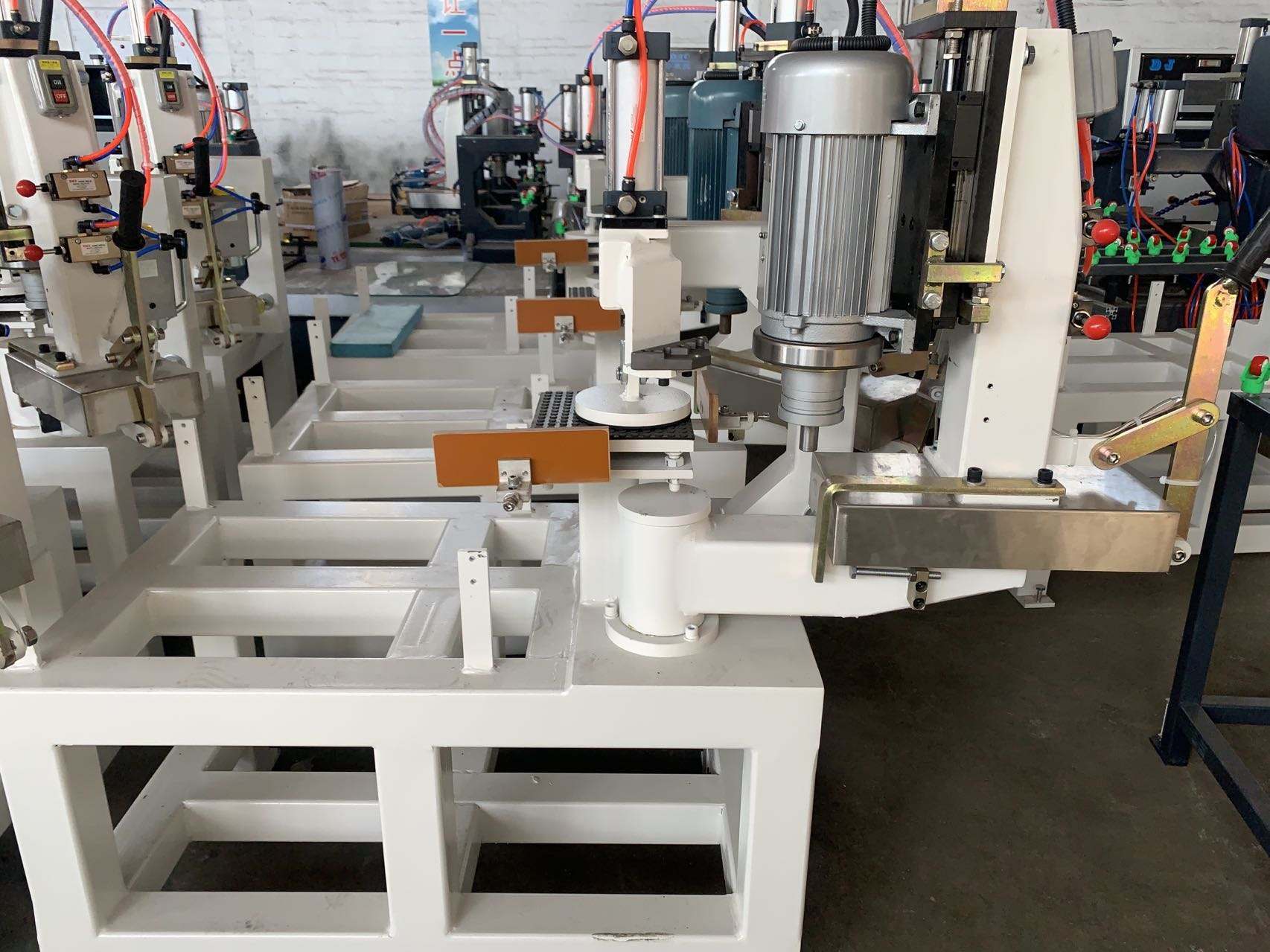

Machine Photos
