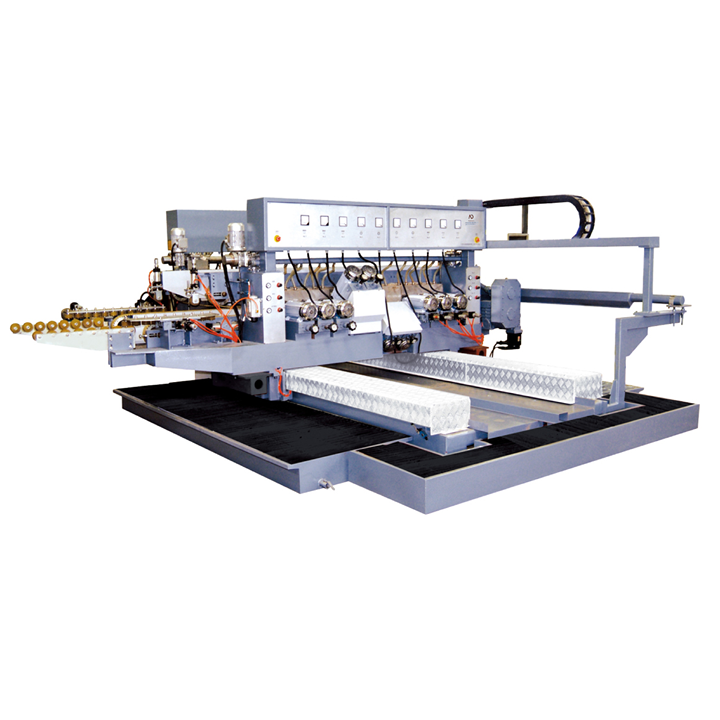

20 Spindle Straight-Line Double-Edging Machine with PLC Control System for Glass Polishing
20 Spindle Straight-Line Double-Edging Machine with PLC Control System for Glass Polishing
Specifications
Dimension :
4400x4400x1800mm
Model Number :
SB-2520
Hs Code :
8464201000
Min Seaming Size :
200x200mm
MOQ :
1
Delivery Time :
30-50
Usage :
Polishing Glass Edge
Weight :
4000KG
Package :
Protective film or wooden box
Payment Terms :
T/T
Material Compatibility :
Glass
Working Speed :
0-15 m/min
Using :
Manual
Price :
38580USD
Applicable Materials :
Glass/Marble /Ceramic
Certification :
CE/ISO/RoHS
Air Pressure Needed :
6kg/square cm
Place of Origin :
CHINA
OEM :
Avalialbe
Angle Of Spindle :
0-45°
Supply Ability :
15-30SET/MONTH
Name :
glass double edging machine
Brand Name :
FOSHAN STAR
Transport Package :
Protective Film
Packaging Details :
Protective film
Description
20 Spindle Straight-Line Double-Edging Machine for Flat Glass Edging and Polishing Machine
Machine Introduce

To process glass flat edge with 45 degree arris. This machine can process 2 parallel edges at same time.

Technical Parameters
Spindles20 (each side has 10 polishing wheel)
Max. glass width2500mm
Min. glass size:200x200mm
Glass thickness:4-26mm
Maximum flat edging level:3mm
Maximum arrising width:2.5mm
Arrise angle:45°
Working speed0.5-11.0m/min
Installed power50kw
Compressor air consumption1 It/min
Pressure6kg/square cm
Overall dimension4400x4400x1800mm
Weight4000kg
Grinding wheel introduction
#Specification#Specification
1Diamond wheel bottom edge, 150mm6Resin wheel for arris, 130mm
2Diamond wheel bottom edge, 150mm7BD wheel for arris, 130mm
3Resin wheel, bottom edge, 150mm8Yew wheels for bottom, 150mm
4Resin wheel for arris, 130mm9Yew wheels for bottom, 150mm
5BD wheel for arris, 130mm10Yew wheels for bottom, 150mm
Product advantage:
  1. The machine uses one set of PLC control system. Can count the processing amount automatically. Glass processing speed showed on the screen page
  2. Pneumatic assistant polishing for the last 3 polishing wheels for bottom edge.
  3. With the use of Taiwan guide rails for stable running of the machine.
  4. Two step fixing of glass to enable glass has good diaganal.
Frequently Asked Questions
Q: What is the MOQ?
A: 1 SET
Q:What is the best price?
A:The price depends on machine size, model etc.
Q:What is the delivery time?
A:Usually it within 30-60 days , but also depends on machine model. Your voltage etc.
Q: What about warranty?
A:We supply one year warranty period ,Lifetime technical support and service.
Q: How your after-sale service?
A: Online Remote Service, Engineers go on site to install service training. 7*24 hours service.
Q:Where do you sell? Do you have experience in these countries?
A:We sold to America,Europe,Middle East,Asia,and so on.We have 20 years in export with all different certificates,like CB,CE, RO,HS, ISO9001 etc.
