1600mm Horizontal Glass Washer And Dryer With Adjustable Speed
1600mm Horizontal Glass Washer And Dryer With Adjustable Speed
1600mm Horizontal Glass Washer And Dryer With Adjustable Speed
1600mm Horizontal Glass Washer And Dryer With Adjustable Speed
Specifications
Delivery Time :
35
Power :
10 KW
Model Number :
ST-QX1600
Speed :
1.5-3.5 m/min
Price :
$5,050-$5,100/SET
Max.Width of Glass :
1600 mm
Overall Size :
4000*1900*1000 mm
Payment Terms :
T/T
Voltage/Frequency :
380V / 50Hz
Place of Origin :
China
Min.Glass Size :
250*250 mm
MOQ :
1
Glass Thickness :
3-15 mm
Packaging Details :
Protective film/Wooden Box
Weight :
1000 Kg
Brand Name :
FoShan Star
Name :
Glass Washer And Dryer
Description

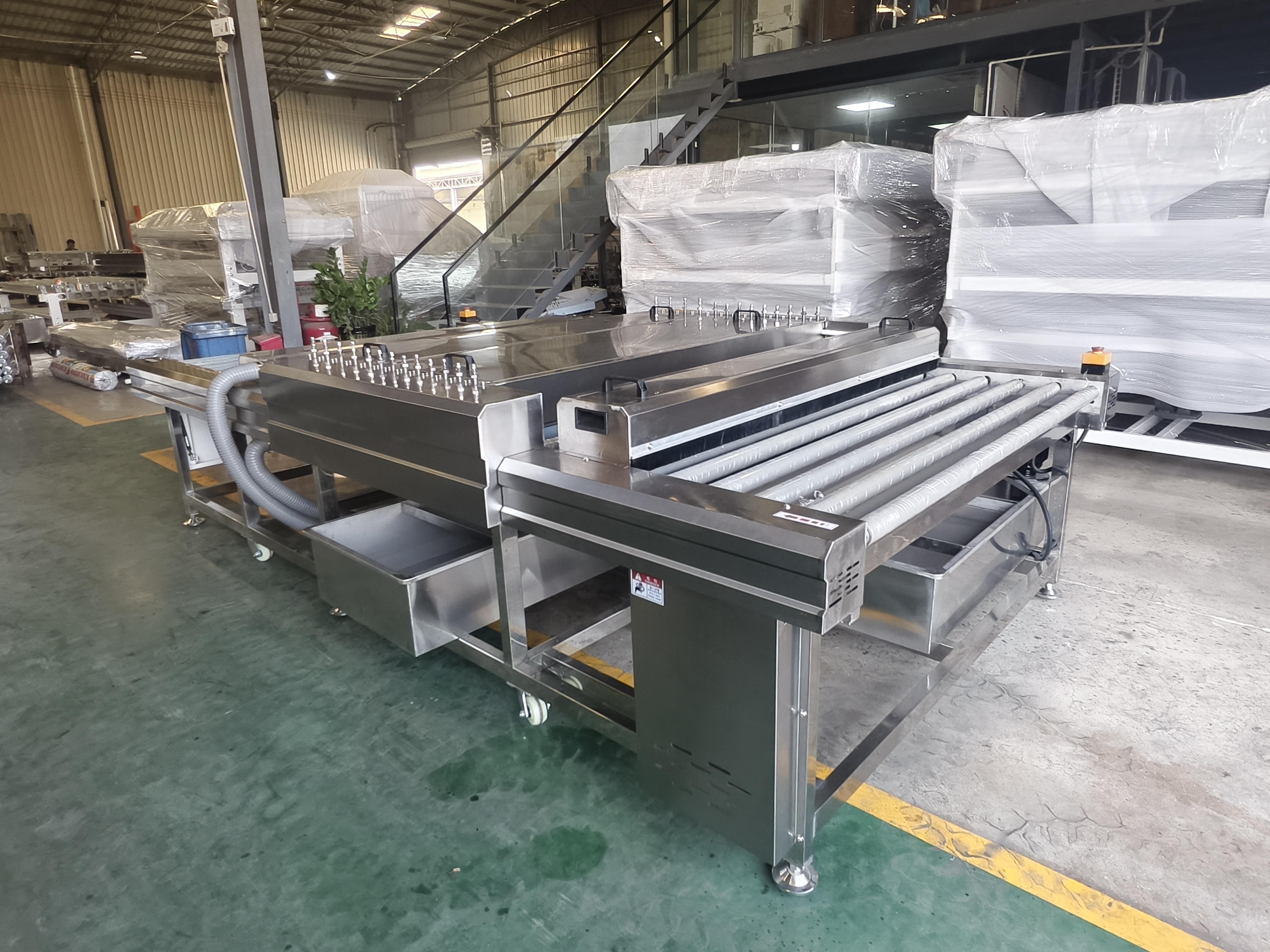

Horizontal Glass Washing Machine (1600MM)

This machine is designed for the washing and drying of flat glass with a thickness ranging from 3mm to 15mm. It features a horizontal structure that ensures smooth, efficient, and safe transmission.

Key Features & Functions
  • Simple Workflow: The glass is conveyed by rollers, entering the feeding part, moving smoothly to the washing part and drying part, and finally exiting the machine.
  • Variable Speed Control: The transmission speed is controlled by a variable motor. Note: The machine must be powered on to adjust the speed.
  • Adjustable Temperature: The temperature of the hot air can be adjusted according to client demand.
⚙️ Technical Specifications
Specification Data
Speed 1.5 - 3.5 m/min
Min. Glass Size 250 × 250 mm
Glass Thickness 3 - 15 mm
Max. Width of Glass 1600 mm
Voltage / Frequency 380V / 50Hz
Power 10 KW
Weight 1000 kgs
Overall Size 4000 × 1900 × 1000 mm
Machine Structure

The machine is composed of four main sections:

  1. Loading Table: Where the glass is fed into the system.
  2. Cleaning Room: The section where the washing process occurs (equipped with brushes and sponge).
  3. Drying Part: The section where the glass is dried using hot air.
  4. Unloading Table: Where the cleaned glass exits the machine.
