304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating
304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating
304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating
304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating
Specifications
Model Number :
2000
Min glass size :
450mm ×450mm
Price :
$23000-$26300/SET
Power voltage :
380V/50Hz
Certification :
CE
Glass thickness :
2mm- 19mm
MOQ :
1
Packaging Details :
Protective film/Wooden box
Total power :
32KW
Name :
Glass Washing Machine
Payment Terms :
T/T
Machine size （L ×W ×H ） :
About 9650x2760x3850mm
Delivery Time :
45
Weight :
3300KG
Brand Name :
Foshan Star
Max glass size :
3000mm
Place of Origin :
China
Main drive speed adjustment method :
variable frequency speed control
Description
304 Stainless Steel, High-power Air Knife Circulating Heating Glass Cleaning Machine

Product Description

Cleaning department and water contact parts of the sheet metal all stainless steel material manufacturing. The cleaning box is made of thickened stainless steel welded as a whole, with high strength and no deformation.

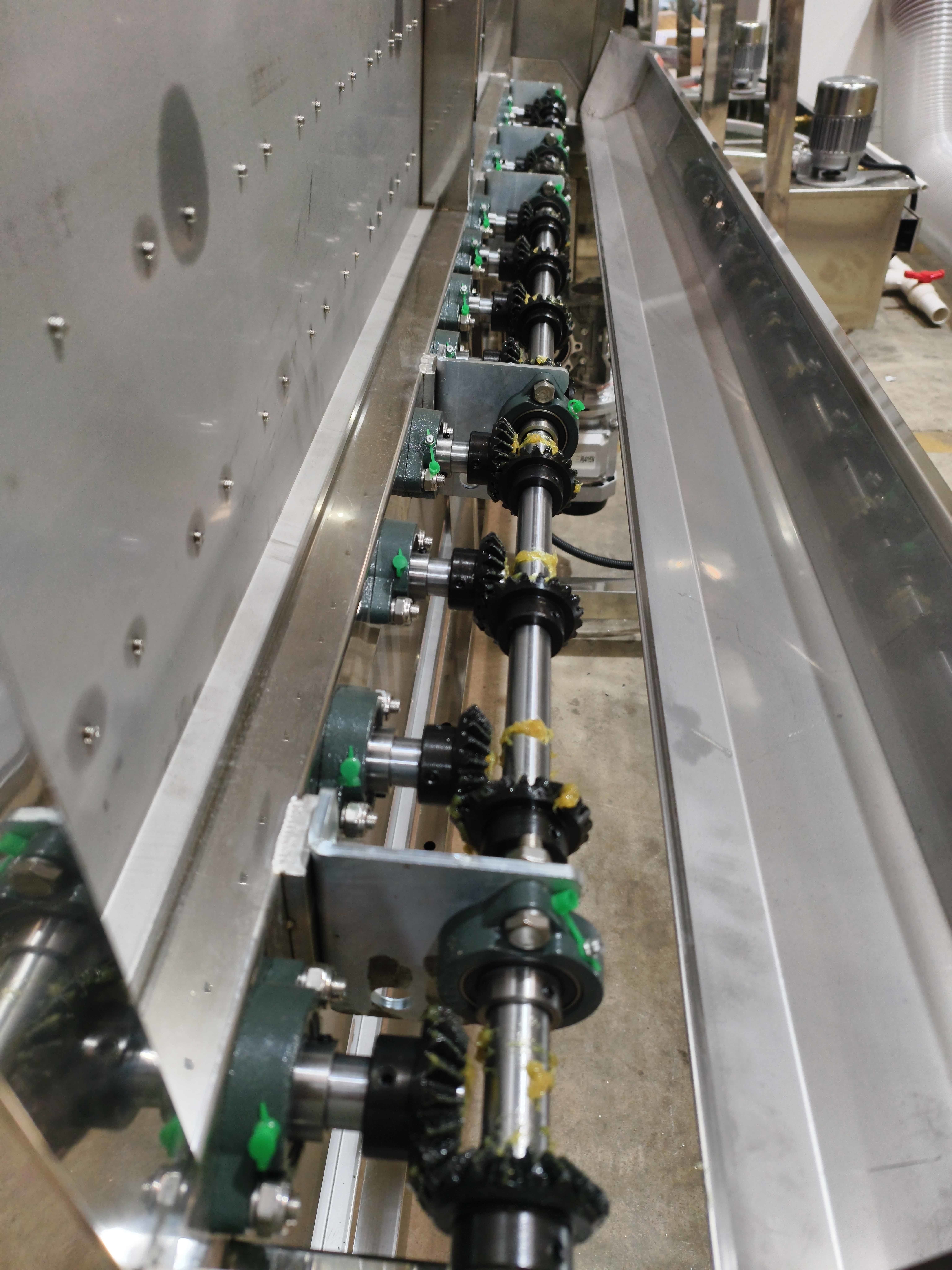

Three pairs of brush configuration: six diameter 160mm high-temperature resistant silk brush + four spray, ensuring glass cleaning is clean and fast (4-7m per minute). The first brush configuration includes two hard brushes with cylinder lift.

Stainless steel spring can automatically adjust the thickness of 2-19mm cleaning glass.

Cleaning box and water contact parts of the components and screws are stainless steel, copper, waterproof aluminum, nylon velvet and other materials, ensuring long-term use without rust and easy maintenance.

Air-drying box glass bracket uniformly welded stainless steel, ensuring long-term use without rust and preventing secondary glass pollution. It features. Two pairs of stainless steel wind knife configuration, providing strong wind power and excellent drying effect, with a heating system. The unique circulating wind glass air drying system is energy saving and low noise (winter without heating wind temperature up to 40 degrees).

Product Specifications

Max glass siaze 3000mm Min glass size 450mm*450mm
Glass thickness 2mm - 19mm Working speed Thickness ≤5mm, Vmax=7m/min； Thickness 8mm- 12mm, V ≤5 m/min
Main drive speed adjustment method even speed Table height ( 750±20 )mm
Total power 32KW Power voltage 380V/50Hz
Machine size (L ×W ×H ) About 9650x2760x3850mm Weight 3300KG

Product Service

304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating

304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating

304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating

304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating

304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating

304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating

Product Images

304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating

304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating

304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating

304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating

304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating
