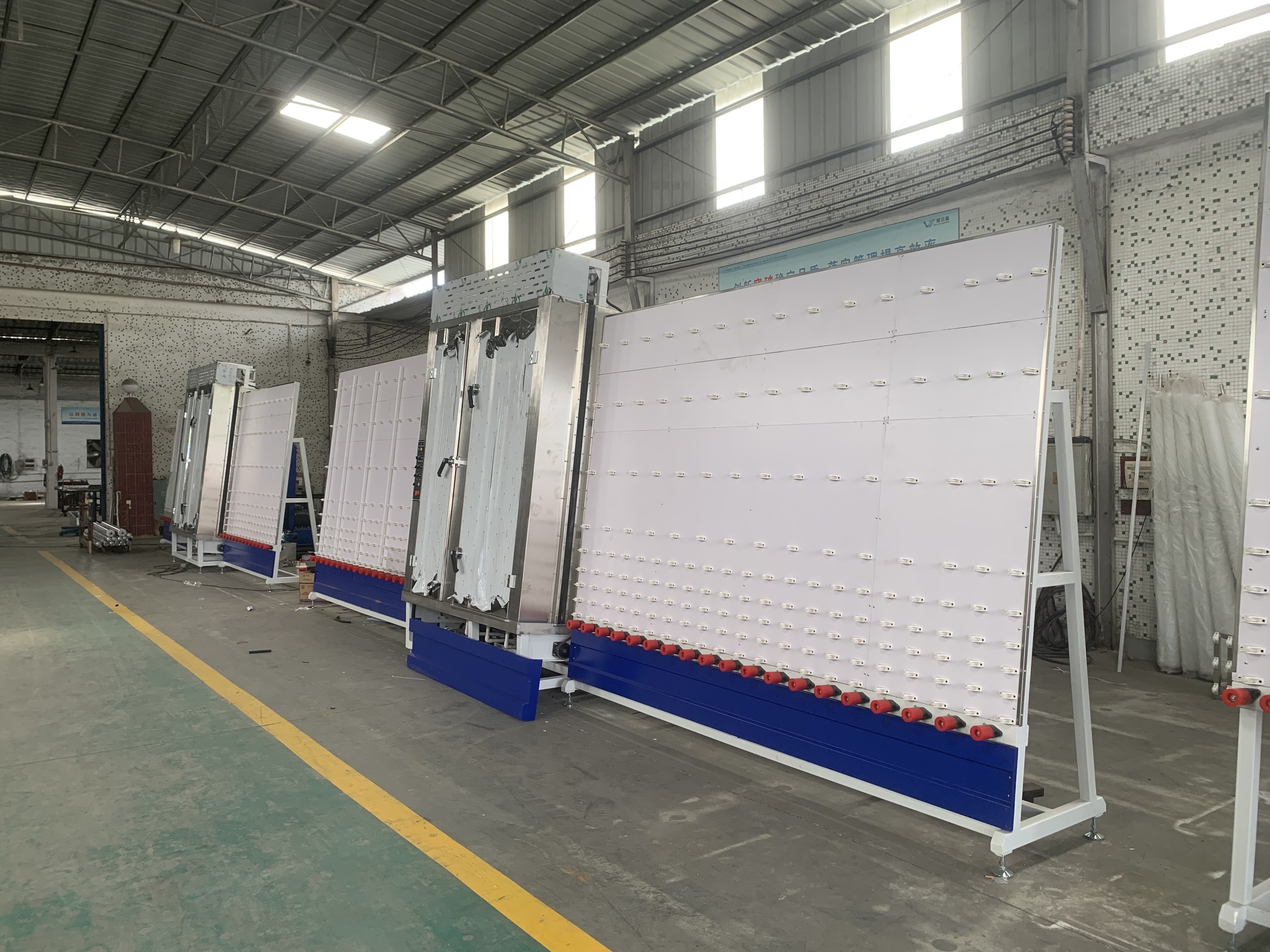

2500mm Glass Cleaning Machine 304 Stainless Steel Air Knife And Circulating Air System
2500mm Glass Cleaning Machine 304 Stainless Steel Air Knife And Circulating Air System
2500mm Glass Cleaning Machine 304 Stainless Steel Air Knife And Circulating Air System
2500mm Glass Cleaning Machine 304 Stainless Steel Air Knife And Circulating Air System
Specifications
Payment Terms :
T/T
Power voltage :
380V/50Hz
Model Number :
2000
Max glass size :
2500mm
MOQ :
1
Packaging Details :
Protective film/Wooden box
Main drive speed adjustment method :
variable frequency speed control
Weight :
3100KG
Price :
$10500-$22000/SET
Total power :
28KW
Certification :
CE
Min glass size :
450mmx450mm
Place of Origin :
China
Glass thickness :
2mm - 19mm
Delivery Time :
45
Machine size （L ×W ×H ） :
About 9000x2660x3550mm
Brand Name :
Foshan Star
Name :
Glass Cleaning Machine
Description
Glass Cleaning Machine Using 304 Stainless Steel Air Knife And Circulating Air System

Product Description

Cleaning department and water contact parts of the sheet metal all stainless steel material manufacturing. The cleaning box is made of thickened stainless steel welded as a whole, with high strength and no deformation.

Three pairs of brush configuration: six diameter 160mm high-temperature resistant silk brush + four spray, ensuring glass cleaning is clean and fast (4-7m per minute). The first brush configuration includes two hard brushes with cylinder lift.

Stainless steel spring can automatically adjust the thickness of 2-19mm cleaning glass.

Cleaning box and water contact parts of the components and screws are stainless steel, copper, waterproof aluminum, nylon velvet and other materials, ensuring long-term use without rust and easy maintenance.

Air-drying box glass bracket uniformly welded stainless steel, ensuring long-term use without rust and preventing secondary glass pollution. It features. Two pairs of stainless steel wind knife configuration, providing strong wind power and excellent drying effect, with a heating system. The unique circulating wind glass air drying system is energy saving and low noise (winter without heating wind temperature up to 40 degrees).

Product Specifications

Max glass siaze 2500mm Min glass size 450mm*450mm
Glass thickness 2mm - 19mm Working speed Thickness ≤5mm, Vmax=7m/min； Thickness 8mm- 12mm, V ≤5 m/min
Main drive speed adjustment method even speed Table height ( 750±20 )mm
Total power 28KW Power voltage 380V/50Hz
Machine size (L ×W ×H ) About 9000x2660x3550mm Weight 3100KG

Product Service

2500mm Glass Cleaning Machine 304 Stainless Steel Air Knife And Circulating Air System

2500mm Glass Cleaning Machine 304 Stainless Steel Air Knife And Circulating Air System

2500mm Glass Cleaning Machine 304 Stainless Steel Air Knife And Circulating Air System

2500mm Glass Cleaning Machine 304 Stainless Steel Air Knife And Circulating Air System

2500mm Glass Cleaning Machine 304 Stainless Steel Air Knife And Circulating Air System

2500mm Glass Cleaning Machine 304 Stainless Steel Air Knife And Circulating Air System

Product Images

2500mm Glass Cleaning Machine 304 Stainless Steel Air Knife And Circulating Air System

2500mm Glass Cleaning Machine 304 Stainless Steel Air Knife And Circulating Air System

2500mm Glass Cleaning Machine 304 Stainless Steel Air Knife And Circulating Air System

2500mm Glass Cleaning Machine 304 Stainless Steel Air Knife And Circulating Air System

2500mm Glass Cleaning Machine 304 Stainless Steel Air Knife And Circulating Air System
