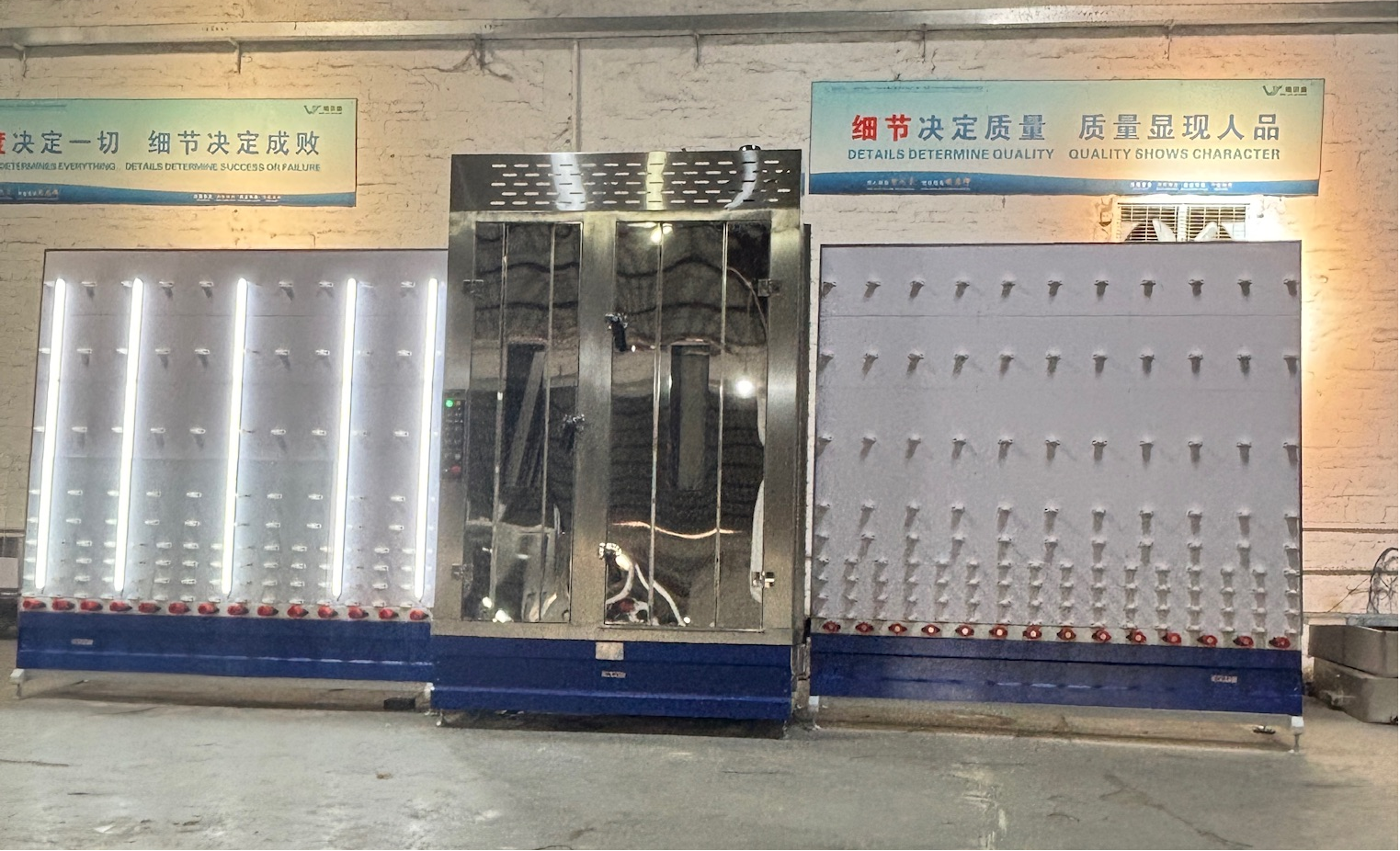

The Foshan Star Vertical Glass Washing Machine (2500mm) is a high-efficiency cleaning solution designed specifically for the pre-processing needs of modern glass manufacturing lines. Engineered with a high-pressure fan drying system, this machine ensures that glass surfaces are left completely spotless and dry, free from water marks or residue. Its vertical design not only saves valuable floor space but also minimizes the risk of glass surface scratches during transport. Capable of handling glass up to 2500mm in width and thicknesses ranging from 3mm to 18mm, it is an essential component for preparing high-quality glass for tempering, insulating, or laminating processes.

• High-Pressure Drying System: Equipped with powerful high-pressure fans, the machine delivers intense air knives that effectively remove all water droplets from the glass surface, ensuring a pristine finish even at high working speeds.
• Versatile Capacity: Designed to process a wide range of glass specifications, accommodating a maximum width of 2450mm and a minimum size of 350x500mm. It handles thicknesses from 3mm to 18mm with stability.
• Adjustable Working Speed: The machine offers flexible speed control to match production line requirements:
  • For glass ≤ 5mm thick: Max speed of 7m/min.
  • For glass 8mm - 12mm thick: Speed up to 5m/min.
• Advanced Water Management: Features a self-circulating water system that supports both tap water and deionized water replenishment, optimizing water usage and ensuring consistent cleaning quality.
• Space-Saving Vertical Design: The vertical structure is compact and robust, with a table height of (750±20) mm, making it easy to integrate into existing production lines while maintaining a small footprint (approx. 5800 x 2300 x 2900mm).
