3M High-Speed ​​Vertical Glass Washing Machine with Automatic Air Knife Drying
3M High-Speed ​​Vertical Glass Washing Machine with Automatic Air Knife Drying
Specifications
Model Number :
ST-LS3000
MOQ :
1
Packaging Details :
Protective film
Machine dimensions :
9650*2760*3850mm
Payment Terms :
T/T
Min glass size :
450*450mm
Total power :
32KW
Working speed :
Thickness ≤5mm, Vmax=7m/min; Thickness 8mm-12mm, V≤5 m/min
Price :
21500
Glass thickness :
2-19mmmm
Certification :
CE/ISO/RoHS
Place of Origin :
CHINA
Delivery Time :
30-50
Max glass size :
3000mm
Brand Name :
FOSHAN STAR
Name :
Vertical Industrial Glass Washing Machine
Description
3M High-Speed ​​Vertical Glass Washing Machine with Automatic Air Knife Drying
Product Overview
This advanced vertical glass washing machine incorporates leading Italian technology, featuring robust stainless steel construction and high-performance cleaning capabilities for industrial glass processing applications.
Key Features & Structural Characteristics
  • Cleaning department and water-contact parts constructed entirely from stainless steel for durability and corrosion resistance
  • Reinforced stainless steel cleaning box with welded construction for high strength and deformation resistance

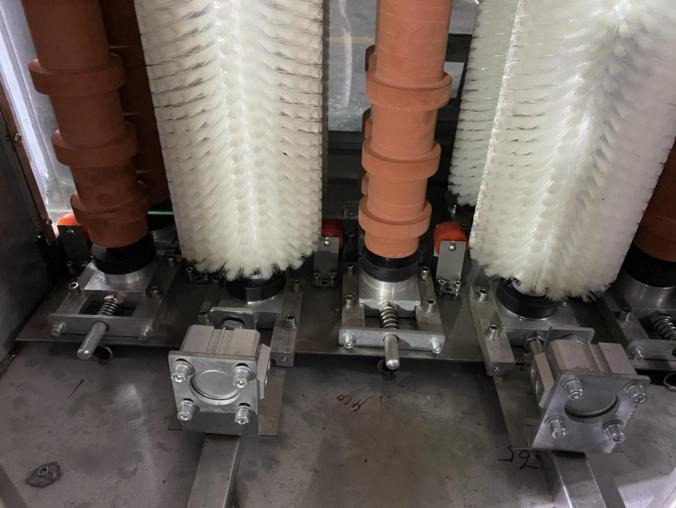

  • Three-pair brush configuration: six 160mm diameter high-temperature resistant silk brushes with four spray systems
  • Cleaning speed: 4-7 meters per minute with first brush pair featuring hard brushes and cylinder lift mechanism
  • Automatic glass thickness adjustment via stainless steel springs (accommodates 3-12mm glass)
  • All water-contact components manufactured from stainless steel, copper, waterproof aluminum, and nylon materials
  • Stainless steel welded glass brackets in air-drying box prevent rust and secondary glass contamination
  • Two-pair stainless steel wind knife configuration with powerful airflow and integrated heating system
  • Energy-efficient circulating wind drying system with low noise operation (winter operation reaches 40°C without heating)
Technical Specifications
Maximum Glass Size 3000mm
Minimum Glass Size 450*450mm
Glass thickness range 2-19mm
Working Speed Thickness ≤5mm: 7m/min max
Thickness 8mm-12mm: ≤5m/min
Drive Speed Adjustment Even Speed Control
Table Height 750mm ±20mm
Total Power 32KW
Water Source Self-circulating with tap water and deionized water replenishment
Power Voltage 380V/50Hz
Machine Dimensions (L*W*H) Approx. 9650*2760*3850mm
Weight 3300KG
Segment Technical Parameters
Loading & Unloading Section
  • Height: 3000mm, Width: 3000mm
  • Back wheel material: 1.5 inch H45 back wheel/center bracket wheel
  • Roller: 80-65*70-20 polyurethane pallet red
  • Transfer mode: Bevel gear drive
  • Standard glass flow: Right input, Left output (reversible per requirements)
Washing Section
  • Brush configuration: 3 pairs (third pair with soft bristles)

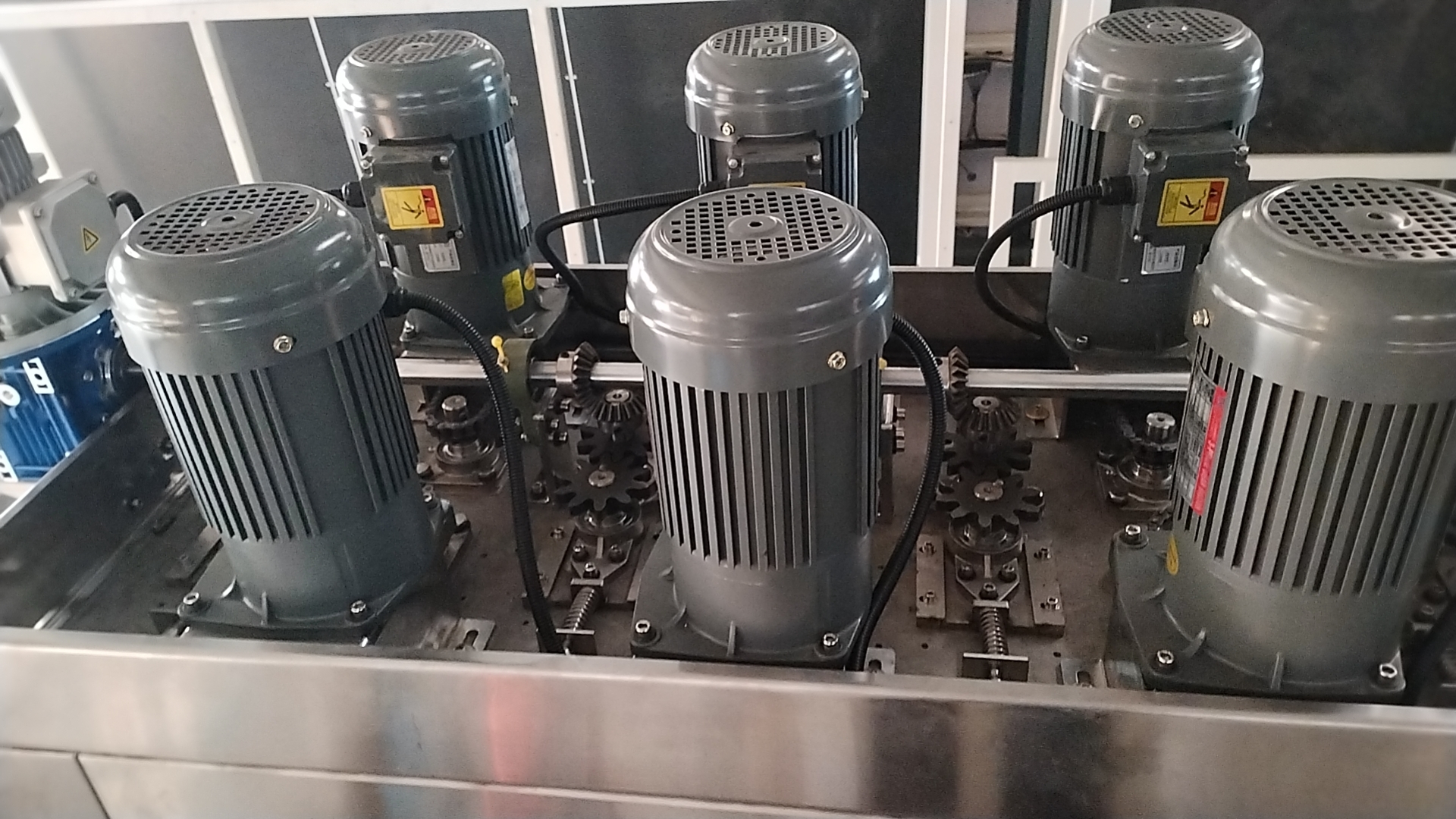

  • Brush motors: 6 Kalida geared motors
  • Total power: Approximately 16KW
  • Drive roller: Non-marking wear-resistant rubber rollers
  • Transmission: Bevel gear system
  • Water-contact sheet metal: Stainless steel construction
  • Water pumps: 2 sets Jinlong high-pressure pumps (0.45KW + 0.25KW)
  • Brush roller: Domestic with Φ0.3mm nylon filament (LOW-E soft brush: Φ0.1mm high-temperature wear-resistant filament)

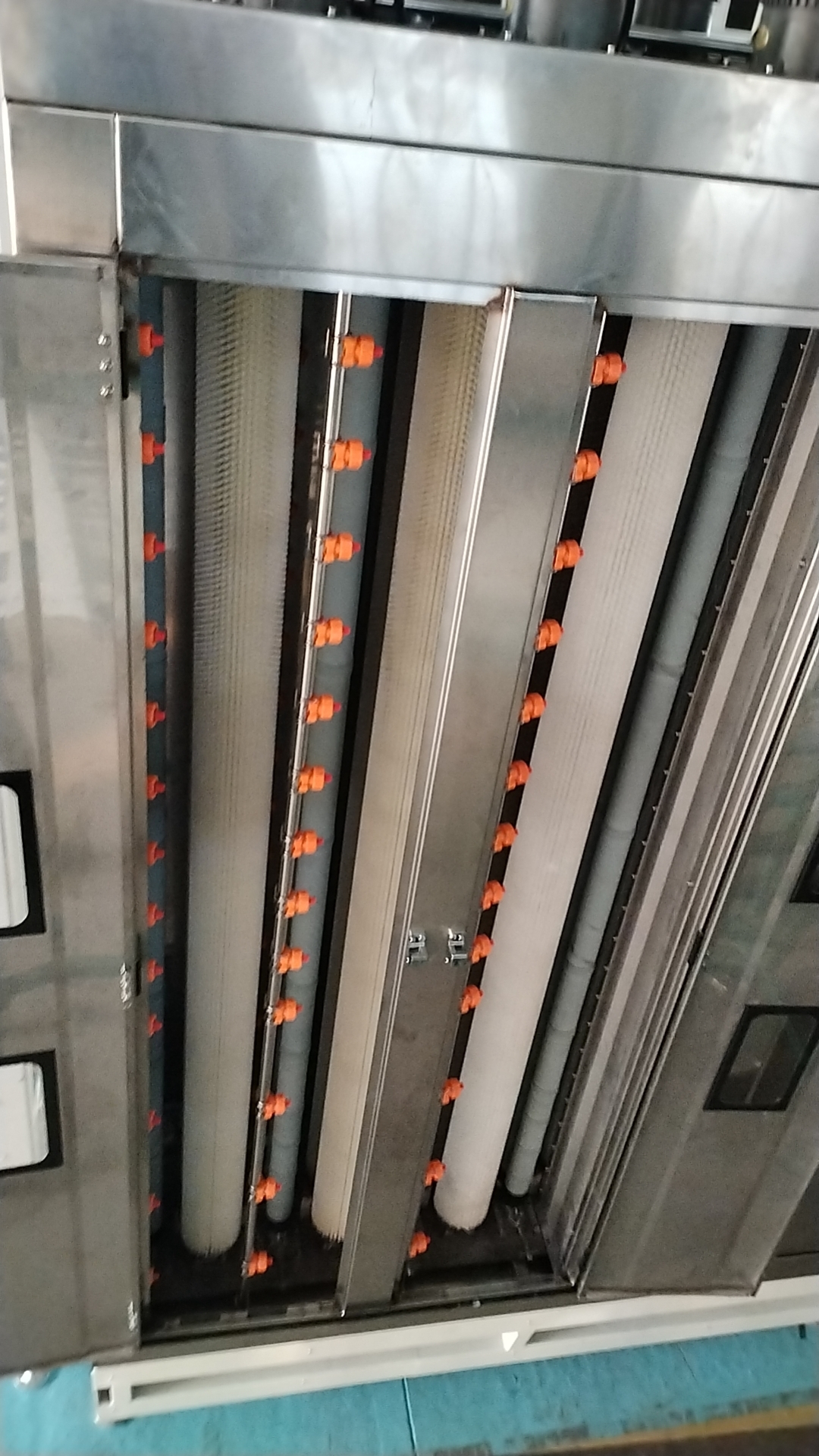

  • Spray system: Stainless steel pipe with hook and loop fan nozzle sprinklers
Drying Section
  • Air knife configuration: 2 pairs (1 straight and 1 angled blade)
  • Total power: Blower 18.5KW
  • Main drive roller: Non-marking wear-resistant rubber roller
  • Transmission: Bevel gear drive
  • Side guards: Stainless steel
  • Sheet metal: Cold plate painting
  • Linear air knife: Stainless steel square tube with aluminum alloy
  • Inclined air knife: JinYiFeng self-developed design
Complete Machine Configuration
Frequency Converter Easysmith Brand
PLC Controller Delta U-Control
Motor & Reducer Pearl River with Intech Brand
Electrical Components Chint Brand
High-pressure Fan JinYiFeng Standard Brand
Water Pump Jinlong Brand
Drive Motor 1 Motor (Pearl River with Intech)
Drive Shaft Φ25 Chrome-plated Shaft
Other Components Standard Specifications
After-Sales Service
  • One year free warranty for complete equipment with lifetime service support
  • Complimentary equipment debugging (overseas costs covered by receiving manufacturer)
  • Operator and maintenance personnel training provided
