3mm-25mm 380V Glass Washing Machine Horizontal With High Pressure Fan
3mm-25mm 380V Glass Washing Machine Horizontal With High Pressure Fan
3mm-25mm 380V Glass Washing Machine Horizontal With High Pressure Fan
3mm-25mm 380V Glass Washing Machine Horizontal With High Pressure Fan
Specifications
Delivery Time :
35
Machine size :
5550 x 3500 x 2700
Model Number :
ST-QX2000
Max glass size :
2000mm
Price :
$12,800-$13,500/SET
Working speed :
Thickness of glass is less than 5mm, Vmax= 7m/min Thickness of glass is 8mm to 12mm, V<= 3m/min Thickness of glass is 15mm-19mm, V= 2m/min
Roller brush :
3 pair
Payment Terms :
T/T
Power :
380V/50HZ
Place of Origin :
China
Min glass size :
380x380mm
MOQ :
1
Glass thickness :
3mm-25mm
Packaging Details :
Protective film/Wooden box
Weight :
3120Kg
Brand Name :
Foshan Star
Name :
Glass Washing Machine
Description

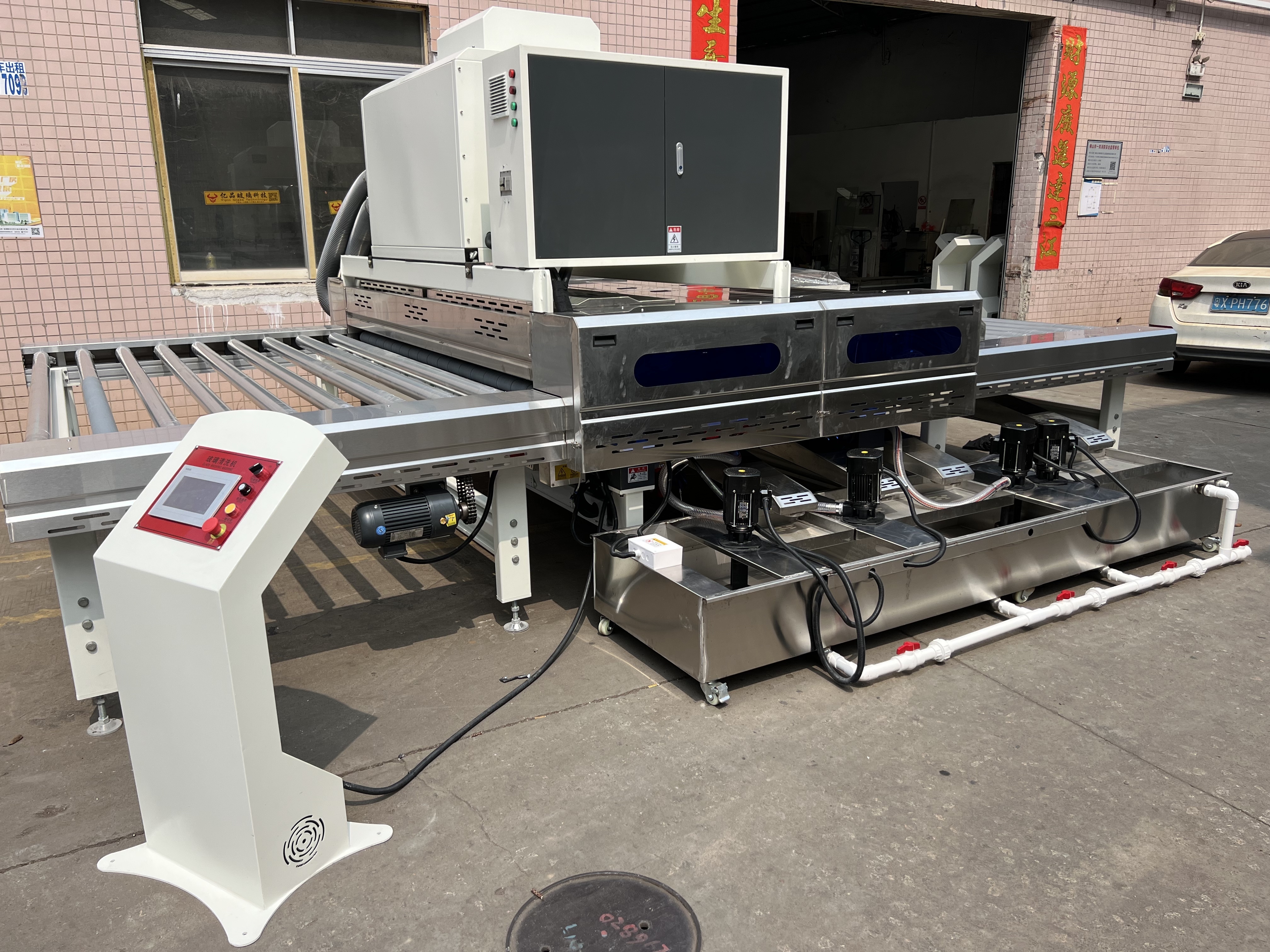

ST - QX2000 Horizontal Glass Washing Machine 2000MM with high pressure fan

Engineered for high-volume glass processing, this machine features a fully welded stainless steel washing chamber that ensures structural integrity and corrosion resistance. The high-efficiency roller brush system adapts processing speed based on glass thickness, delivering spotless cleaning results while maximizing throughput for various specifications ranging from 3mm to 25mm.

Key Features
  1. All-Stainless Steel Construction: The washing box is fabricated from heavy-duty stainless steel and fully welded into a single unit, guaranteeing zero deformation and superior durability against corrosion.
  2. Adaptive High-Speed Cleaning: Equipped with 3 pairs of precision roller brushes, the system automatically optimizes throughput based on material thickness.
  3. Wide Processing Range: Capable of handling glass sizes up to 2000mm wide and thicknesses from 3mm to 25mm.
Technical Specifications
Parameter Specification
Max Glass Size 2000 mm
Min Glass Size 380 x 380 mm
Glass Thickness Range 3 mm – 25 mm
Working Speed (< 5mm) Max 7 m/min
Working Speed (8–12mm) ≤ 3 m/min
Working Speed (15–19mm) ≤ 2 m/min
Brush Configuration 3 Pairs of Roller Brushes
Power Supply 380V / 50Hz
Machine Dimensions 5550 x 3500 x 2700 mm (L x W x H)
Machine Weight 3120 Kg
Glass Sample Results

3mm-25mm 380V Glass Washing Machine Horizontal With High Pressure Fan

3mm-25mm 380V Glass Washing Machine Horizontal With High Pressure Fan

3mm-25mm 380V Glass Washing Machine Horizontal With High Pressure Fan

3mm-25mm 380V Glass Washing Machine Horizontal With High Pressure Fan

3mm-25mm 380V Glass Washing Machine Horizontal With High Pressure Fan

3mm-25mm 380V Glass Washing Machine Horizontal With High Pressure Fan
