SS201 SS304 Stainless Steel Woven Mesh Plain Twilled Dutch Weave
SS201 SS304 Stainless Steel Woven Mesh Plain Twilled Dutch Weave
SS201 SS304 Stainless Steel Woven Mesh Plain Twilled Dutch Weave
SS201 SS304 Stainless Steel Woven Mesh Plain Twilled Dutch Weave
Specifications
Brand Name :
JIUFU
Model Number :
JF-1002
Certification :
ISO
Place of Origin :
ANPING, CHINA
MOQ :
1 Square Meter
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Square Meter per Day
Delivery Time :
7-20 days
Packaging Details :
Plastic Film + Water-proof Paper + Woven Bag + Wooden Box or Pallet
Product Name :
Stainless Steel Woven Mesh
Weave Type :
Plain Dutch weave, Twilled Dutch weave
Material :
SS201, SS304, SS316, SS316L, etc
Wire Diameter :
0.019mm-0.63mm
Mesh Count :
8-3000mesh
Filter Rating :
3 microns -300 microns
Width :
1-1.6m
Weight :
0.45-5.42kg/m2
Feature :
different mesh number
Application :
Ultra-fine filtering precision
Description

SS201 SS304 Stainless Steel Woven Mesh Plain Twilled Dutch Weave

Dutch Weave Stainless Steel Woven Mesh Introduction

Dutch Weave Stainless Steel Woven Mesh, warp wire and weft wire have different wire diameters and different mesh numbers. The length direction is the warp wire, the width direction is the weft wire.

The characteristics are: the warp is sparse and the weft is dense, and the warp is thick and the weft is thin.

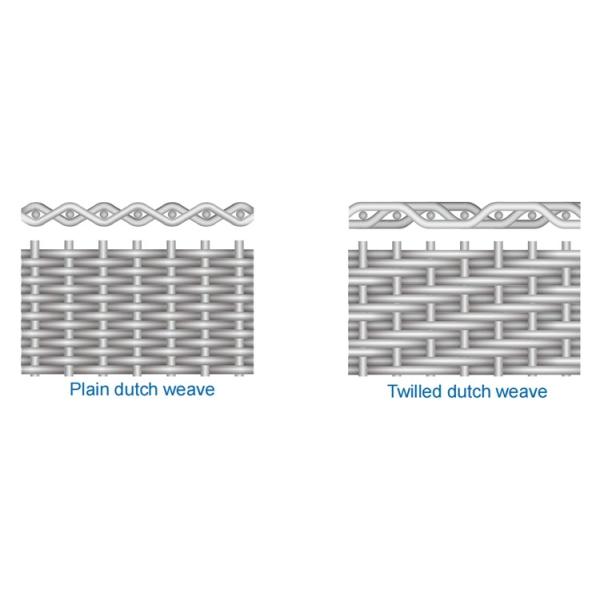

Dutch Weave Stainless Steel Wove Mesh Classify


It is divided into Plain Weave Dutch Wire Mesh and Twilled Weave Dutch Wire Mesh.

Plain Weave Dutch Wire Mesh: Each warp wire crosses over and over each weft wire.

Twilled Weave Dutch Wire Mesh: Each warp wire crosses above and below every two weft wire, and each weft wire crosses above and below every two warp wire

SS201 SS304 Stainless Steel Woven Mesh Plain Twilled Dutch Weave

SS201 SS304 Stainless Steel Woven Mesh Plain Twilled Dutch Weave

Dutch Weave Stainless Steel Woven Mesh Parameter

Product Name
Dutch Wire Mesh
Material
Stainless steel wire, Nickel wire, Black iron wire, Copper wire, etc
Wire Diameter
0.018-0.6mm
Weave Type
Plain Dutch Weave; Twilled Dutch Weave
Width
1m-1.6m
Feature
Stable and Fine Filtration Performance
Application
Used for precision pressure filter, fuel filter, vacuum filter, also suitable for aerospace, petroleum, chemical, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food and other industries.
Common Specifications
12 x 64 mesh * 0.58mm x 0.40mm * 280um
24 x 110 mesh * 0.355mm x 0.25mm * 120um
30 x 150 mesh * 0.25mm x 0.18mm * 80um
45 x 250 mesh * 0.16mm x 0.112mm * 56um
70 x 350 mesh * 0.11mm x 0.08mm * 35um
127 x 1100 mesh * 0.07mm x 0.05mm * 17um
165 x 1400 mesh * 0.071mm x 0.04mm * 16um
200 x 1400 mesh * 0.071mm x 0.04mm * 12um
254 x 2000 mesh * 0.04mm x 0.028mm * 8um
325 x 2300 mesh * 0.035mm x 0.025mm * 5um
400 x 3100 mesh * 0.035mm x 0.019mm * 3um

SS201 SS304 Stainless Steel Woven Mesh Plain Twilled Dutch Weave

SS201 SS304 Stainless Steel Woven Mesh Plain Twilled Dutch Weave
