100 To 300 Micron Stainless Steel Mesh 430 310S Industrial Woven Wire Mesh
100 To 300 Micron Stainless Steel Mesh 430 310S Industrial Woven Wire Mesh
100 To 300 Micron Stainless Steel Mesh 430 310S Industrial Woven Wire Mesh
100 To 300 Micron Stainless Steel Mesh 430 310S Industrial Woven Wire Mesh
Specifications
Brand Name :
JIUFU
Model Number :
JF-10025
Certification :
ISO
Place of Origin :
ANPING, CHINA
MOQ :
10 Square Meter
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Square Meter per Day
Delivery Time :
7-20 days
Packaging Details :
Plastic Film + Water-proof Paper + Woven Bag + Wooden Box or Pallet
Product Name :
Stainless Steel Woven Mesh
Weave Type :
plain twill dutch weaving
Material :
AISI 201 202 321 430 310S
Wire Diameter :
0.01mm-2mm
Mesh Count :
2-10000 mesh
Wire type :
weft wire, warp wire
Application :
filters
Aperture :
100 150 200 250 270 300 microns
Technique :
Woven mesh
Edge Finish :
Colsed and Flash Edge
Description

100 To 300 Micron Stainless Steel Mesh 430 310S Industrial Woven Wire Mesh


Mesh Count of Stainless Steel Wire Mesh

The number of meshes is expressed in the number of mesh holes per square centimeter in the Chinese specification, and is expressed in the number of mesh holes per inch internationally, and it is also expressed in the size of each mesh hole (mm).

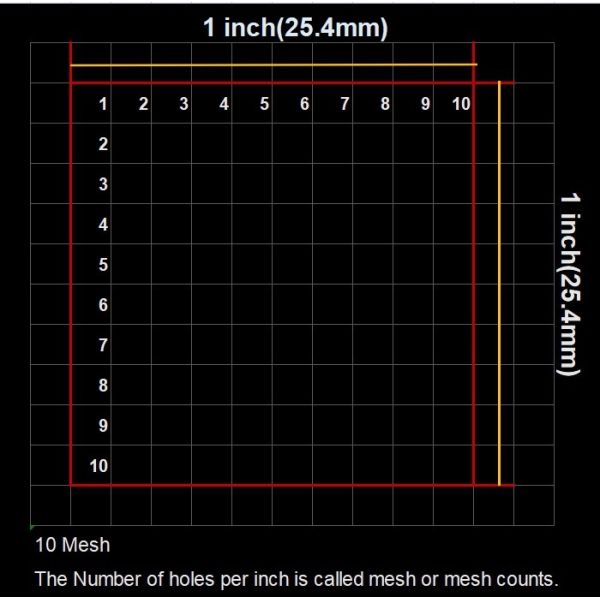

The larger the mesh number, the finer the material particle size; the smaller the mesh number, the larger the material particle size. The number of meshes on a length of 1 inch (25.4mm) is called the mesh number.

100 To 300 Micron Stainless Steel Mesh 430 310S Industrial Woven Wire Mesh

Stainless Steel Woven Mesh -- Mesh and Micron Correspondence Table

mesh microns mesh microns
2 8000 100 150
3 6700 115 125
4 4750 120 120
5 4000 125 115
6 3350 130 113
7 2800 140 109
8 2360 150 106
10 1700 160 96
12 1400 170 90
14 1180 175 86
16 1000 180 80
18 880 200 75
20 830 230 62
24 700 240 61
28 600 250 58
30 550 270 53
32 500 300 48
35 425 325 45
40 380 400 38
42 355 500 25
45 325 600 23
48 300 800 18
50 270 1000 13
60 250 1340 10
65 230 2000 6.5
70 212 5000 2.6
80 180 8000 1.6
90 160 10000 1.3


Microns is about 14832.4/mesh Generally speaking, Mesh * Microns = 15000

100 To 300 Micron Stainless Steel Mesh 430 310S Industrial Woven Wire Mesh

Company History

-- In 2000, Changxing Wire Mesh Factory was established, and the first machine of the factory was purchased to produce stainless steel window screens


-- In 2003, the company expanded its business and developed stainless steel diamond mesh and stainless steel woven mesh. At that time, the sales of diamond mesh were very good and were very popular among the public.


-- In 2008, the company's business volume expanded, and more than 20 machines were added, and we had door-to-door purchases from foreign customers


-- In 2012, Jiufu Metal Wire Mesh Co., Ltd. was established, specializing in foreign business, with our own import and export rights


-- In 2015, we purchased our own network inspection equipment, mainly for our wide-width network inspection, which greatly improved our customer satisfaction


-- In 2020, we added laser cutting equipment, laser welding equipment, and rolling machines to prepare for our subsequent development
